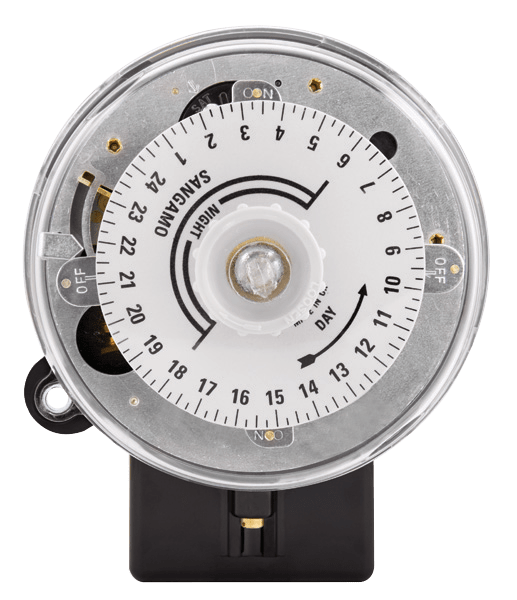

Sangamo S255.3 4 Pin Time Switch, 3 On/Offs, no battery reserve
Free Delivery
£
176
83
(Incl. VAT)
5 Years Warranty
4 Pin Time Switch, 3 On/Offs, black dial, no battery reserve
About this product
About this product
The Sangamo S255.3 is a standard 4 pin time switch with 3 on/off periods on a 24 hour program, and no power reserve. Its single SPST output is volt-free.
Key features
- 3 ON/OFF periods on a 24 hour program
- Output: 4 pin, SPST, volt-free
- 24 hour dial with 15 minute divisions; setting accuracy +/- 3 minutes
- Day omission (omits the ON operation)
- Temporary override by manual button
- Power reserve: none
- 20 A resistive rating; LED lamp loads to 3600 W @ 230V
Frequently asked questions
How many on/off periods does the S255.3 give?
3 ON/OFF periods on a 24 hour program.
Is the output volt-free or switched live?
Volt-free, from a single SPST output on a 4 pin base.
Does it have a power reserve?
No: the power reserve is none.
Can a day be skipped?
Yes: day omission omits the ON operation.
Does it need an earth?
Yes: it is IEC protection Class I (must be earthed).
-
Download
- S255.3 Tech Sheet
£
176
83
FAST delivery by Order within
Price
Technical Details
Specifications
Number of Outputs
1
Display
24 Hour Dial
Relay/Contact Type
SPST
Timing Accuracy
5 Minutes / Year
Relay Voltage - Maximum (AC)
230
Mounting
Surface Mounting
Relay Resistive Load Rating (A)
20
Base Type
4 Pin
Warranty (Years)
5
Schedule
24 Hour Program
Dial Calibration
15 Minute Divisions
Setting Accuracy
+/- 3 Minutes
Supply Voltage (V AC)
230
Power Consumption (W)
0.6
Cable Size (mm²)
0.5 - 4
Power Reserve
None
IEC Protection Class
Class I (Must be Earthed)
Operating Temperature (°C)
0 to +50
Maximum Inductive Current Rating (A) (0.6pf)
5
Maximum Inductive Current Rating (A) (0.8pf)
12
Maximum Incandescent, Halogen Lamp Load Rating (W)
3600
Maximum Fluorescent Lamp Load Rating (W)
1980
Maximum LED Lamp Load Rating (W)
3600 @ 230V
Maximum Discharge (Sodium, Mercury, Metal Halide) Lamp Load Rating (W)
3600
Dimensions (mm)
146.5 x 105.7 x 82
Available Operations
3 ON/OFF Periods
Day Omission
Yes (omits the “ON” operation)
Minimum Period Between Like Operations (Hours)
1.75
Minimum Period Between Unlike Operations (Mins)
15
Ingress Protection
IP20
Materials
Base: Polycarbonate 940 Black; Cover: Idemitsu Polycarbonate
Output Type
4 Pin; SPST, Volt-Free
Accessories
110469: FD930 Conduit Box Time Switch
Specifications
| Number of Outputs | 1 |
|---|---|
| Display | 24 Hour Dial |
| Relay/Contact Type | SPST |
| Timing Accuracy | 5 Minutes / Year |
| Relay Voltage - Maximum (AC) | 230 |
| Mounting | Surface Mounting |
| Relay Resistive Load Rating (A) | 20 |
| Base Type | 4 Pin |
| Warranty (Years) | 5 |
| Schedule | 24 Hour Program |
| Dial Calibration | 15 Minute Divisions |
| Setting Accuracy | +/- 3 Minutes |
| Supply Voltage (V AC) | 230 |
| Power Consumption (W) | 0.6 |
| Cable Size (mm²) | 0.5 - 4 |
| Power Reserve | None |
| IEC Protection Class | Class I (Must be Earthed) |
| Operating Temperature (°C) | 0 to +50 |
| Maximum Inductive Current Rating (A) (0.6pf) | 5 |
| Maximum Inductive Current Rating (A) (0.8pf) | 12 |
| Maximum Incandescent, Halogen Lamp Load Rating (W) | 3600 |
| Maximum Fluorescent Lamp Load Rating (W) | 1980 |
| Maximum LED Lamp Load Rating (W) | 3600 @ 230V |
| Maximum Discharge (Sodium, Mercury, Metal Halide) Lamp Load Rating (W) | 3600 |
| Dimensions (mm) | 146.5 x 105.7 x 82 |
| Available Operations | 3 ON/OFF Periods |
| Day Omission | Yes (omits the “ON” operation) |
| Minimum Period Between Like Operations (Hours) | 1.75 |
| Minimum Period Between Unlike Operations (Mins) | 15 |
| Ingress Protection | IP20 |
| Materials | Base: Polycarbonate 940 Black; Cover: Idemitsu Polycarbonate |
| Output Type | 4 Pin; SPST, Volt-Free |
| Accessories | 110469: FD930 Conduit Box Time Switch |
