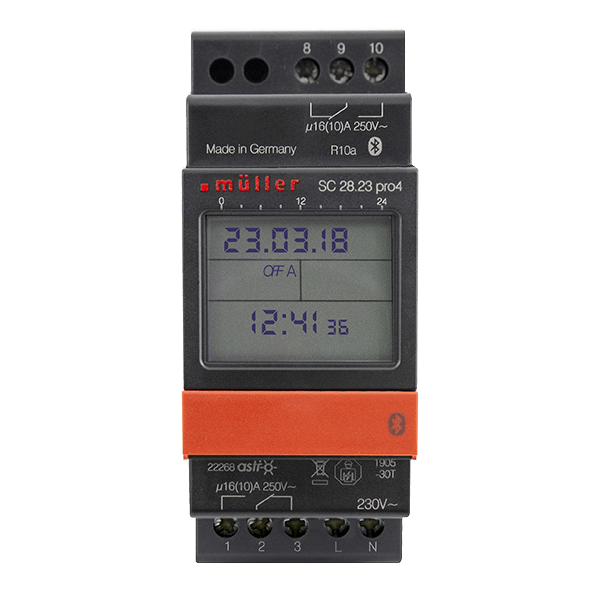

Sangamo SC2823PRO4 Astro Bluetooth 2 Module 2 Channel, 7 Day Timer, 100 Operations
Free Delivery
£
146
65
(Incl. VAT)
3 Years Warranty
Astro Bluetooth 2 Module 2 Channel, 7 Day Timer, 100 Operations
About this product
About this product
The Sangamo SC2823PRO4 is an astro Bluetooth timer with 2 channels, 2 modules wide and on a 7 day programme. It runs an astro (sunrise, sunset) program, is programmable via app (iOS and Android), holds 100 operations and has a switching capacity of 16A per channel.
Key features
- 2 SPDT volt-free channels; switching capacity 16A per channel
- Astro (sunrise, sunset) program and a user-defined astro zone
- 24 hour and 7 day programmable; daily and weekly programming
- Programmable via app (iOS and Android); Bluetooth
- 100 operations; switching modes ON, OFF, pulse, extra and permanent
- Zero-crossing, LED up to 600W
- 2 modules wide; surface or 35mm DIN-rail (DIN EN 60715) mounting
- Replaceable CR2032 battery; power reserve 10 years (approx.)
Frequently asked questions
How many channels does the SC2823PRO4 have?
2 channels, each an SPDT volt-free output with a switching capacity of 16A per channel.
Does it have an astro function?
Yes, an astro (sunrise, sunset) program with a user-defined astro zone.
Can it be programmed via an app?
Yes. It is programmable via app (iOS and Android). It also has Bluetooth.
How many operations does it hold?
100 operations.
How is it mounted?
On a surface or on 35mm DIN-rail (DIN EN 60715); it is 2 modules wide.
-
Download
- SC2823PRO4 Tech Sheet
£
146
65
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
90 x 36 x 63
Number of Outputs
2
Display
LCD Display
Relay/Contact Type
SPDT
Time Base
Quartz Crystal
Relay Voltage - Maximum (AC)
230
Quartz Crystal Accuracy (at 20°C)
≤ ± 0.5 Seconds / Day
Maximum LED Lamp Load Rating (W)
600 @ 230V
Astro Zone
User Defined
Contact Material
AgSnO²
Materials
Self-Extinguishing Thermoplastic
Warranty (Years)
3
Switching Modes
ON, OFF, Pulse, Extra, Permanent
Summer/Winter Time Change
Yes (Automatic)
Minimum Switching power (mW)
1000 (10V/10mA)
Program Security
Unlimited (E2-PROM)
Pulse length - Timer (man. switching)
0:00:01 up to 9:59:59 h:mm:ss
Supply Voltage (V AC)
230
Power Consumption (W)
0.2-1
Cable Size (mm²)
0.5 - 2.5
Power Reserve
10 Years (Approx.)
Battery Type
Replaceable CR2032
IEC Protection Class
Class II When Installed According to Regulations
Operating Temperature (°C)
-30 to +55
Maximum Inductive Current Rating (A) (0.6pf)
10
Maximum Incandescent, Halogen Lamp Load Rating (W)
3000
Maximum Compact Fluorescent Lamp Load Rating (W)
600
Maximum Fluorescent Lamp (Uncompensated) Load Rating (W)
2600
Maximum Fluorescent Lamp (Series Compensated) Load Rating (W)
2600
Maximum Fluorescent Lamp (Parallel Compensated) Load Rating (W)
1300
Programming Schedule
24 Hour, and 7 Day Programmable
Bluetooth
Yes
Available Operations
100 Operations
Minimum Interval (Mins)
1
Pulse length - Pulse function (switching time)
00:01 up to 59.59 mm:ss
Mounting
Surface Mounting or DIN
Distribution Board Mounting
35mm DIN-rail (DIN EN 60715)
Module Size
2
Ingress Protection
IP20
Output Type
2 Channel, SPDT, Volt-Free
Total Switch Rating
16A @1.0pf
Features
Daily and Weekly Programming; Astro (Sunrise, Sunset) Program; Switching Capacity 16A per Channel; Zero-Crossing, LED up to 600W; Programmable via App (iOS and Android); 10 Years Battery Reserve
Accessories
143602: Module Enclosure
Dimensions
Dimensions (mm)
90 x 36 x 63
Specifications
| Dimensions (mm) | 90 x 36 x 63 |
|---|---|
| Number of Outputs | 2 |
| Display | LCD Display |
| Relay/Contact Type | SPDT |
| Time Base | Quartz Crystal |
| Relay Voltage - Maximum (AC) | 230 |
| Quartz Crystal Accuracy (at 20°C) | ≤ ± 0.5 Seconds / Day |
| Maximum LED Lamp Load Rating (W) | 600 @ 230V |
| Astro Zone | User Defined |
| Contact Material | AgSnO² |
| Materials | Self-Extinguishing Thermoplastic |
| Warranty (Years) | 3 |
| Switching Modes | ON, OFF, Pulse, Extra, Permanent |
| Summer/Winter Time Change | Yes (Automatic) |
| Minimum Switching power (mW) | 1000 (10V/10mA) |
| Program Security | Unlimited (E2-PROM) |
| Pulse length - Timer (man. switching) | 0:00:01 up to 9:59:59 h:mm:ss |
| Supply Voltage (V AC) | 230 |
| Power Consumption (W) | 0.2-1 |
| Cable Size (mm²) | 0.5 - 2.5 |
| Power Reserve | 10 Years (Approx.) |
| Battery Type | Replaceable CR2032 |
| IEC Protection Class | Class II When Installed According to Regulations |
| Operating Temperature (°C) | -30 to +55 |
| Maximum Inductive Current Rating (A) (0.6pf) | 10 |
| Maximum Incandescent, Halogen Lamp Load Rating (W) | 3000 |
| Maximum Compact Fluorescent Lamp Load Rating (W) | 600 |
| Maximum Fluorescent Lamp (Uncompensated) Load Rating (W) | 2600 |
| Maximum Fluorescent Lamp (Series Compensated) Load Rating (W) | 2600 |
| Maximum Fluorescent Lamp (Parallel Compensated) Load Rating (W) | 1300 |
| Programming Schedule | 24 Hour, and 7 Day Programmable |
| Bluetooth | Yes |
| Available Operations | 100 Operations |
| Minimum Interval (Mins) | 1 |
| Pulse length - Pulse function (switching time) | 00:01 up to 59.59 mm:ss |
| Mounting | Surface Mounting or DIN |
| Distribution Board Mounting | 35mm DIN-rail (DIN EN 60715) |
| Module Size | 2 |
| Ingress Protection | IP20 |
| Output Type | 2 Channel, SPDT, Volt-Free |
| Total Switch Rating | 16A @1.0pf |
| Features | Daily and Weekly Programming; Astro (Sunrise, Sunset) Program; Switching Capacity 16A per Channel; Zero-Crossing, LED up to 600W; Programmable via App (iOS and Android); 10 Years Battery Reserve |
| Accessories | 143602: Module Enclosure |
