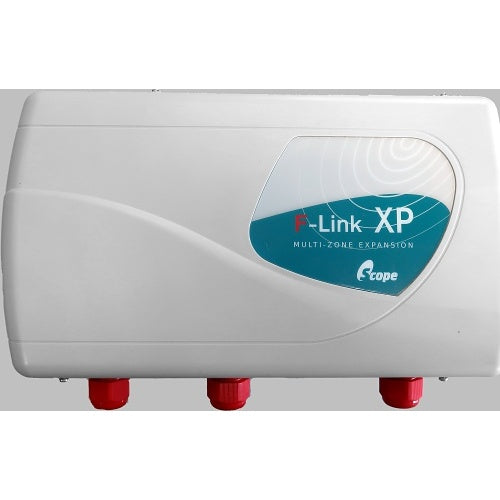

Scope FLXP15 alarm communicator
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Scope FLXP15 is an alarm communicator from the F-Link range.
Scope F-Link XP relay expansion unit for F-Link4 System, when any F-Link4 unit on the F-Link4 master network goes into fire or fault alarm, an individual relay output is triggered per event allowing individual events to be zoned on the main fire panel. For sites where it is also required to indicate on the Master fire control panel which remote F-Link node has gone into alarm, the F-LINK XP provides the solution.
Key features
- Used to distinguish individual triggers of flink via triggering of individual relay
- Covers flink nodes 1-7 (and 1 zone from 8th node)
- Triggered from zones 1 & 2 only from flink
- Fault relay (loss of power anywhere in link)
- Paired only with the master
If you are matching this to an existing installation, work from the FLXP15 part number rather than the description.
-
Download
- FLXP15 — User Manual
Specifications
Certifications
Physical characteristics
Power description
Miscellaneous
Attributes
Specifications
| Brand Name | Scope |
|---|---|
| Manufacturer Part Number | FLXP15 |
| Product Series | F-Link |
Certifications
| ATEX Compliant | No |
|---|---|
| CE marking | Yes |
| Certifications & Standards | CE |
| RoHS compliance | Compliant |
| WEEE compliance | Compliant |
Physical characteristics
| Depth | 7.00cm |
|---|---|
| Height | 19.00mm |
| Width | 33.00cm |
Power description
| Input Voltage | 12-24V DC |
|---|
Miscellaneous
| Environmental certification | CE |
|---|
Attributes
| Environmental status | Yes |
|---|---|
| Input Voltage | 12-24V DC |
