Scope TLINKLT alarm communicator
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Scope TLINKLT is an alarm communicator from the T-Link range.

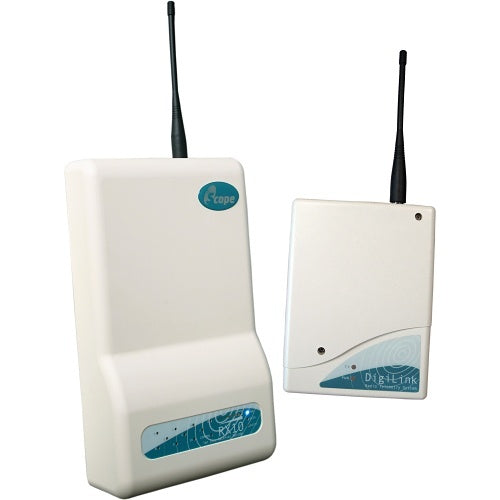

Scope T-Link is a pre-configured 5-Zone, ‘off-the-shelf’ one-way radio link intended to connect remotely located fire panels, or intruder panels. It comprises a 5-Zone DigiLink 3 transmitter combined with an RX10 Receiver. Aerials are included, although you will need to choose which power option you need: Mains AC, 12VDC or 24VDC (transmitter only).
Although the basic T-Link offer comes pre-configured, you can purchase an optional programming kit to enable user configuration of both the DigiLink 3 and RX10. If you require more than 5 to 10 zones, then a 10-zone DigiLink 3 transmitter is required instead, and you would need to purchase the DigiLink 3, RX10 Receiver, and aerials individually.
Key features
- Can be triggered by voltage applied or removed
- Change of state system on volt free inputs as default
- Budget version of the flinks without key approvals
- Test call monitored
- Capable of notifying when transmitter loses its input power instantly
- Can be battery backed up
Specifications
Certifications
Power description
Attributes
Specifications
| Brand Name | Scope |
|---|---|
| Manufacturer Part Number | TLINKLT |
| Product Series | T-Link |
Certifications
| ATEX Compliant | No |
|---|---|
| CE marking | Yes |
| RoHS compliance | Compliant |
| WEEE compliance | Compliant |
Power description
| Input Voltage | 12V DC |
|---|
Attributes
| Input Voltage | 12V DC |
|---|
