Scope PT4-05-12V paging transmitter
About this product
Please note: this is a non-returnable item (excluding faulty goods)

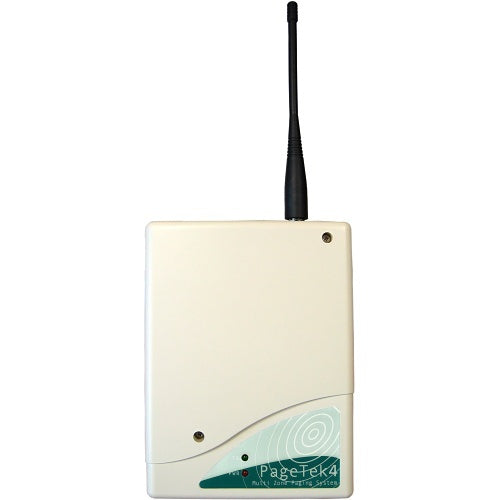

Scope PT4-05-12V is a paging transmitter from the PageTek4 range.
Scope programmable 5 input transmitter. - Fully programmable zones input UHF transmitter - 5 zone or 10 zone versions - All inputs configurable as dry contact or voltage input - Mains powered, 24V and 12VDC models available - Ranges of up to 1 mile with 1/4 wave antenna - All parameters PC programmable.
Key features
- Fully programmable zoned input UHF transmitter
- 5 zone and 10 zone versions
- All inputs configurable as dry contact or voltage input
- Mains powered, 24V and 12V DC models
- Ranges of up to 1 mile with standard 1/4 wave aerial
- All parameters PC programmable
- Transmission repeat options
- Local output (open collector)
-
Download
- PT4-05-12V — User Manual
Specifications
Technical information
Certifications
Physical characteristics
Attributes
Specifications
| Brand Name | Scope |
|---|---|
| Manufacturer Part Number | PT4-05-12V |
| Product Series | PageTek4 |
| Product Type | Paging Tranmitter |
Technical information
| Connectivity Technology | Wireless |
|---|
Certifications
| ATEX Compliant | No |
|---|---|
| CE marking | Yes |
Physical characteristics
| Depth | 75.00mm |
|---|---|
| Height | 328.00mm |
| Width | 190.00mm |
Attributes
| Environmental status | Yes |
|---|
