Securi-Flex SFX/125-DB-GRN-1 coaxial cable, 1.00m
About this product
Please note: this is a non-returnable item (excluding faulty goods)

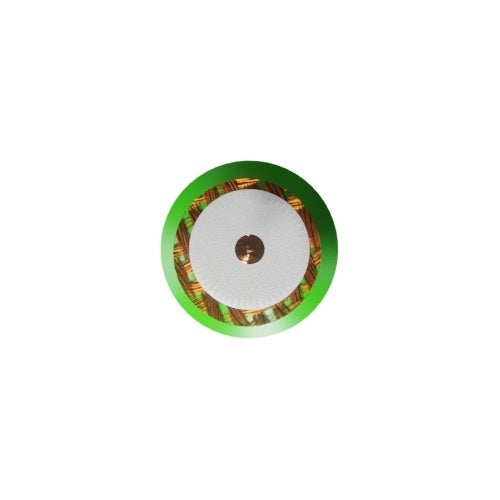

Securi-Flex SFX/125-DB-GRN-1 is a coaxial cable.
The SFX/125-DB-GRN-1 is a high-frequency, low-loss cable designed to carry CCTV, TV and satellite signals. Manufactured with gas-injected foam, it offers superior mechanical, electrical and ageing performance compared to a solid PE dielectric. This cable family features both foil and braided screens, enhancing performance and reducing interference.
Key features
- Outdoor rated cable designed to be buried under ground wthout a need for conduit or ducting
- Inner Conductor - bare copper
- Conductor Diameter 1.25 ±0.01mm
- Insulation - Foamed PE
- Insulation Thickness 1.18 ±0.01mm
- Copper braid
- Braid construction - 0.16 ±0.003 x 80
- Inner and outer Jacket - PE
- Overall Sheath - HDPE
If you are matching this to an existing installation, work from the SFX/125-DB-GRN-1 part number rather than the description.
-
Download
- SFX/125-DB-GRN-1 — Product Manual
Specifications
Technical information
Certifications
Physical characteristics
Miscellaneous
Attributes
Specifications
| Brand Name | Securi-Flex |
|---|---|
| Manufacturer Part Number | SFX/125-DB-GRN-1 |
| Product Type | Coaxial Cable |
Technical information
| Cable Type | 125 Coaxial |
|---|---|
| Conductor Count | 1 |
| Conductor Material | Optical Fiber |
| CPR Euroclass Rating | Fca |
| Device Supported | CCTV, Satellite Signals, TV |
| Jacket Type | Direct Burial, UV-Resistant, Water-Blocking |
| Number of Conductors | 1 |
Certifications
| CE marking | Yes |
|---|---|
| RoHS compliance | Compliant |
| WEEE compliance | Compliant |
Physical characteristics
| Cable Length | 1.00m |
|---|---|
| Colour | Green |
| Jacket Material | HDPE |
| Material | PE |
Miscellaneous
| Indoor or outdoor use | Outdoor |
|---|
Attributes
| Device Supported | CCTV, Satellite Signals, TV |
|---|
