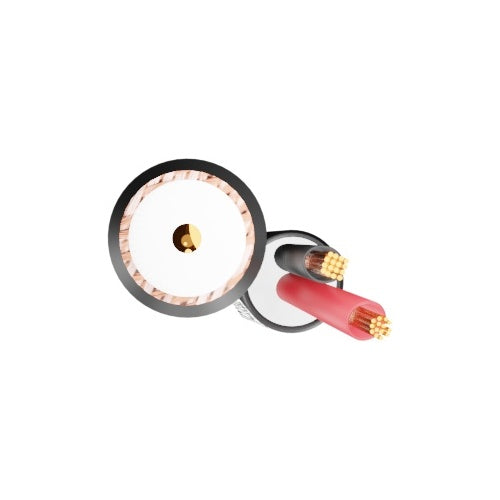

Securi-Flex SFX/59+2C-0.75-PREM-LSZH-D-BLK-100 coaxial cable, 100.00m
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Securi-Flex SFX/59+2C-0.75-PREM-LSZH-D-BLK-100 is a coaxial cable.
This type of RG59 cable (also known as shotgun cable) allows for transmission of video and power signals in just one cable, which helps to save on price and installation time. The two cables which are a 2182 construction, are run in a shotgun style, and can be easily separated if required for ease of installation. RG59 CCTV cable is known for preventing interference and signal loss, meaning that the transmitted image will be clear with no distortion.
CCTV coaxial cable with power can also be run over long distances with no signal loss and secure signal transmission to the application.
Key features
- Even with the introduction of IP cameras, coax is still a preferred choice for many installers in the security industry
- Coax is a simple solution that does not require any additional products such as baluns to create an image
- Low smoke zero halogen plastic is good for use inside public buildings and spaces as will not emit toxic gases if the cable catches fire
If you are matching this to an existing installation, work from the SFX/59+2C-0.75-PREM-LSZH-D-BLK-100 part number rather than the description.
Specifications
Technical information
Certifications
Physical characteristics
Miscellaneous
Attributes
Specifications
| Brand Name | Securi-Flex |
|---|---|
| Manufacturer Part Number | SFX/59+2C-0.75-PREM-LSZH-D-BLK-100 |
| Product Type | Coaxial Cable |
Technical information
| Cable Type | RG59 Coaxial |
|---|---|
| Conductor Count | 1 |
| CPR Euroclass Rating | Dca -s:1b -a:1 -d:2 |
| Device Supported | PTZ Camera |
| Jacket Type | Halogen-Free Jacket |
| Shielding | Yes |
Certifications
| CE marking | Yes |
|---|---|
| RoHS compliance | Compliant |
| WEEE compliance | Compliant |
Physical characteristics
| Cable Length | 100.00m |
|---|---|
| Colour | Black |
| Insulation Material | PE |
| Jacket Material | UV LSZH |
| Material | Bare Copper, LSZH, PVC |
Miscellaneous
| Features | Power cores – 2 x 0.5mm or 2 x 0.75mm, Sheath – PVC, PE Duct, LSZH & LSF options available, Sheath colours – Black or black/white, Shotgun construction |
|---|
Attributes
| Device Supported | PTZ Camera |
|---|
Securi-Flex SFX/59+2C-0.75-PREM-LSZH-D-BLK-100 coaxial cable, 100.00m
