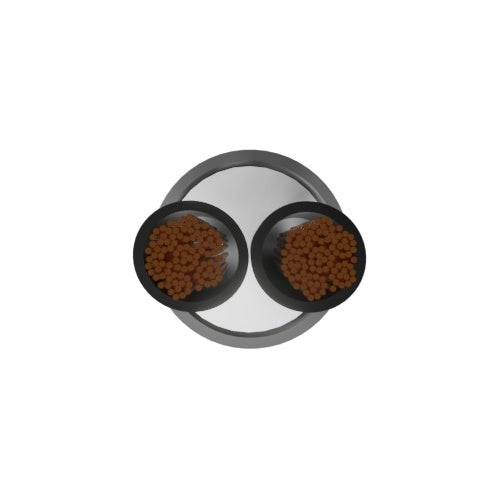

Securi-Flex SFX/YY-2C-1.5-LSZH-GRY-NBR-U-100 control flex cable, 100m
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Securi-Flex SFX/YY-2C-1.5-LSZH-GRY-NBR-U-100 is a control flex cable.
YY Cable is a crucial component within the processing and production industries. It is used to transmit large volumes of information through their conductors whilst linking to multiple different areas in a system. Often used in assembly lines, under light mechanical and environmental stresses, YY control flexes measure, control and regulate computer units.
YY cable is unshielded making it more flexible, and therefore is often used within internal and dry environments. YY control flex, like SY cable, can be installed externally when protected against UV light.
Key features
- Conductor – 0.75 Mil – 6.0 Mil available
- Cores – 2, 3, 4, 5, 7 and 12 core options available
- Numbered core marking
- LSZH Sheath material
- Grey colour
- CCA CPR Rated
If you are matching this to an existing installation, work from the SFX/YY-2C-1.5-LSZH-GRY-NBR-U-100 part number rather than the description.
Specifications
Technical information
Certifications
Physical characteristics
Specifications
| Brand Name | Securi-Flex |
|---|---|
| Manufacturer Part Number | SFX/YY-2C-1.5-LSZH-GRY-NBR-U-100 |
| Product Type | Flex Cable |
Technical information
| Cable Type | YY Control Cable |
|---|---|
| Conductor Count | 2 |
| Conductor Material | Copper |
| CPR Euroclass Rating | Cca -s1a -a1 -d1 |
Certifications
| CE marking | Yes |
|---|
Physical characteristics
| Cable Length | 100.00m |
|---|---|
| Colour | Grey |
| Jacket Material | LSZH |
| Material | LSZH |
