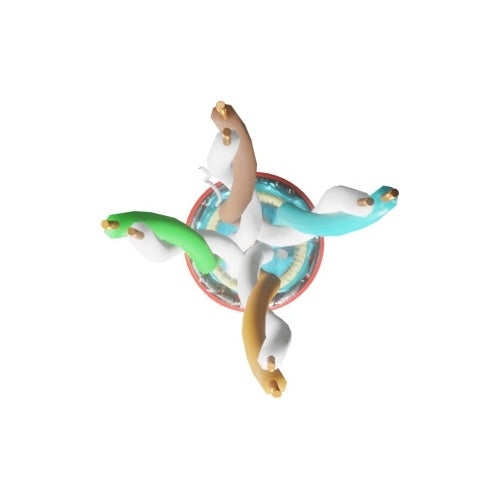

Securi-Flex SFX/C5-FTP-FIRE-LSZH-RED-500 data cable, 500.00m
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Securi-Flex SFX/C5-FTP-FIRE-LSZH-RED-500 is a data cable.
This page covers Securi-Flex part SFX/C5-FTP-FIRE-LSZH-RED-500. Everything below is recorded against that exact part number rather than against the wider range it belongs to.
The figures held against it cover application/usage, package type, american wire gauge among others. Anything not listed we have not stated.
Ask us before you order if you need something confirmed. We will check it against the manufacturer's own documentation and tell you what it says.
Key features
- Application/Usage: For use where the data cable is required to keep functioning in the event of a fire. This is the figure the record carries for this exact part number.
- Package Type: Reel/Spool. Parts in the same family can differ here, so check the code rather than the family.
- American Wire Gauge: 22AWG. It is listed for this part number, not for the range as a whole.
- Cable Type: Cat5e Network. Where your specification names a figure, compare it against this one before ordering.
- Conductor Count: 8. Parts in the same family can differ here, so check the code rather than the family.
- Conductor Material: Bare Copper. This is the figure the record carries for this exact part number.
- CPR Euroclass Rating: LPCB. Where your specification names a figure, compare it against this one before ordering.
- Impedance: 100Ohm. It is listed for this part number, not for the range as a whole.
- Jacket Type: Halogen-Free Jacket. This is the figure the record carries for this exact part number.
- Maximum Distance: 90.00m. Parts in the same family can differ here, so check the code rather than the family.
- Number of Conductors: 8. It is listed for this part number, not for the range as a whole.
- Number of Pairs: 4. Where your specification names a figure, compare it against this one before ordering.
- Shielding: Present on this part number. The record states it as a property of this part rather than of the wider range. Parts in the same family can differ here, so check the code rather than the family.
- Solid or Stranded: Solid. This is the figure the record carries for this exact part number.
Use cases
Specify this part where the data cable role is already decided and the figures listed above are the ones that have to be met. The points below are the placement-relevant entries from the same record.
- Typical application: For use where the data cable is required to keep functioning in the event of a fire.
If you are matching this to an existing installation, work from the SFX/C5-FTP-FIRE-LSZH-RED-500 part number rather than the description.
Specifications
General information
Technical information
Certifications
Physical characteristics
Miscellaneous
Specifications
| Brand Name | Securi-Flex |
|---|---|
| Manufacturer Part Number | SFX/C5-FTP-FIRE-LSZH-RED-500 |
| Product Type | Data Cable |
General information
| Application/Usage | For use where the data cable is required to keep functioning in the event of a fire |
|---|---|
| Package Type | Reel/Spool |
Technical information
| American Wire Gauge | 22AWG |
|---|---|
| Cable Type | Cat5e Network |
| Conductor Count | 8 |
| Conductor Material | Bare Copper |
| CPR Euroclass Rating | LPCB |
| Impedance | 100Ohm |
| Jacket Type | Halogen-Free Jacket |
| Maximum Distance | 90.00m |
| Number of Conductors | 8 |
| Number of Pairs | 4 |
| Shielding | Yes |
| Solid or Stranded | Solid |
Certifications
| CE marking | Yes |
|---|---|
| RoHS compliance | Out of Scope |
| WEEE compliance | Out of Scope |
Physical characteristics
| Cable Length | 500.00m |
|---|---|
| Colour | Red |
| Jacket Material | LSZH |
Miscellaneous
| Environmental status | Yes |
|---|
features
Securi-Flex SFX/C5-FTP-FIRE-LSZH-RED-500 data cable, 500.00m
