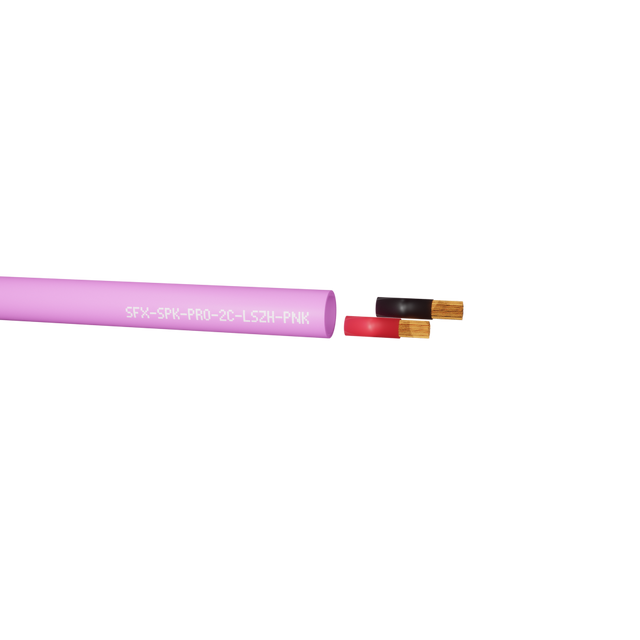

SFX Cables SFX/SPK-PRO-2C-LSZH-PNK-100 2 Core LSZH Speaker Cable, 16AWG, 100m
About this product
The SFX Cables SFX/SPK-PRO-2C-LSZH-PNK-100 is a 100 m drum of 2 core speaker cable with 30 x 0.25mm 16AWG conductors and a pink LSZH sheath, for high end domestic sound installations. It is a professional grade speaker cable with LSZH insulation, a CPR rating of Eca and a rated voltage of 300-500V.
Key features
- 2 cores, each 30 x 0.25mm (1.31mm²), 16AWG
- LSZH outer sheath and LSZH insulation
- CPR classification: Eca
- Rated voltage 300-500V
- Pink jacket, RAL 3015, with red and black core insulation
- Overall diameter 6.20 ±0.20 mm
- Supplied on a 100 Metres drum
Frequently asked questions
How much cable is on the SFX/SPK-PRO-2C-LSZH-PNK-100 drum?
The drum length is 100 Metres.
What size are the conductors?
There are 2 cores, each 30 x 0.25mm (1.31mm²), 16AWG.
Is the sheath low smoke zero halogen?
Yes. The outer sheath, jacket and insulation are LSZH, and the cable has a CPR rating of Eca.
What colour are the jacket and cores?
The jacket is Pink RAL 3015 and the core insulation is red and black.
What is the overall diameter of the cable?
The overall diameter is 6.20 ±0.20 mm.
What voltage and temperature is the cable rated for?
Rated voltage is 300-500V and rated temperature is -40°C to 70°C.
Specifications
Specifications
| Brand | SFX Cables |
|---|---|
| Model | SFX/SPK-PRO-2C-LSZH-PNK-100 |
| Manufacturer Part Number (MPN) | SFX/SPK-PRO-2C-LSZH-PNK-100 |
| Number of Cores | 2 |
| Conductor | 30 x 0.25mm, 16AWG |
| Conductor Diameter (mm) | 0.25 ±0.008 x 30 (1.31mm²) |
| Insulation | LSZH |
| Insulation Colour | Red, Black |
| Insulation Thickness (mm) | 0.31 |
| Outer Sheath Material | LSZH |
| Jacket Colour | Pink RAL 3015 |
| Jacket Thickness (mm) | 0.60 ±0.01 |
| Overall Diameter (mm) | 6.20 ±0.20 |
| CPR | Eca |
| Rated Voltage (V) | 300-500V |
| Rated Temperature (°C) | -40°C to 70°C |
| Standards | CE2014/30/EU, RoHS2 2011/65/EU |
| Drum Length | 100 Metres |
| Colour | Pink |
