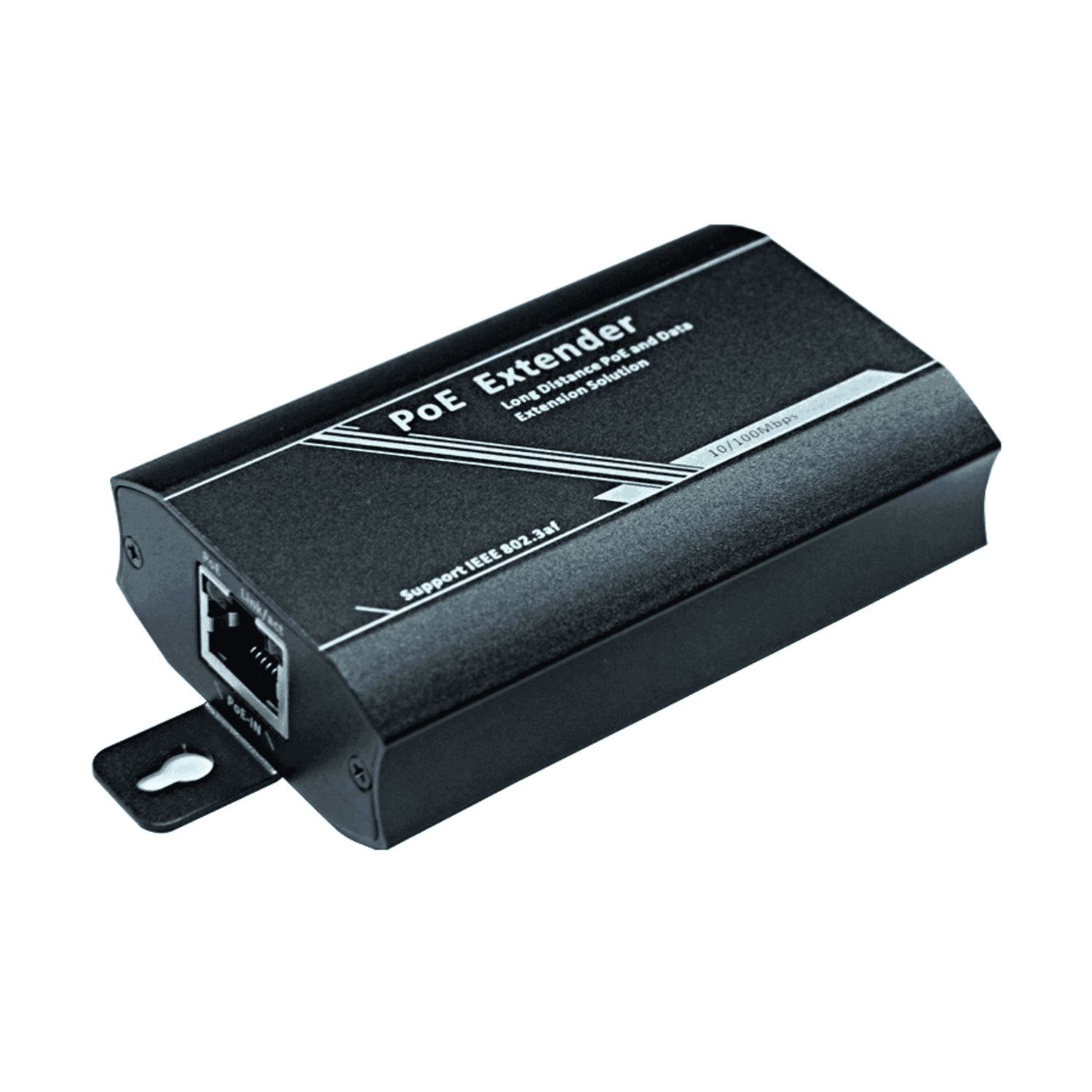

Single‑Port PoE Extender, 10/100 Mbps, 15.4W Output, 48–57V, FS-PSE1001-E10

Introduction: What the FS-PSE1001-E10 Does and Why It Matters

The FS-PSE1001-E10 Single‑Port PoE Extender is a compact, plug‑and‑play device that extends both Power‑over‑Ethernet and 10/100 Mbps Ethernet data by an extra 100 metres over standard Cat5e/Cat6 cabling. Designed to power IEEE 802.3af devices such as IP cameras and wireless access points, this little unit removes the need to run local mains power to remote devices. For installers, contractors and site owners who need a low‑cost, reliable way to reach devices beyond the typical 100‑metre Ethernet limit, the FS-PSE1001-E10 is a practical solution.

Key Features at a Glance

• Extends PoE and data:adds up to 100 metres to an existing PoE run, effectively doubling reach when placed mid‑route.
• IEEE 802.3af compliance:supplies up to 15.4 W to downstream Powered Devices (PD).
• 10/100 Mbps Ethernet:auto‑negotiation and Auto MDI/MDIX for simple connection without crossover cables.
• Plug & play:no configuration required; LED indicators show PoE and Link/Activity status.
• Compact form factor:small desktop or wall‑mountable housing (83 × 51.5 × 24 mm) ideal for constrained spaces.
• Supports Mid‑Span and End‑Span:accepts PoE from either a PoE injector or a PoE switch.

Detailed Specifications and Benefits

• PoE input voltage:48–57 V — compatible with standard 802.3af PoE supplies.
• PoE standard:IEEE 802.3af (PoE) — appropriate for many cameras, VoIP phones and small APs.
• Maximum PoE output:15.4 W — enough to power a broad range of 802.3af PDs but not PoE+ (802.3at) devices that require higher wattage.
• PoE modes supported:Mid‑Span and End‑Span — flexible integration with either legacy injectors or modern PoE switches.

Benefit: This device allows you to extend power and data without adding AC power at the device site, lowering installation complexity and cost for many remote devices.

• Transmission rate:10/100 Mbps auto‑negotiation — stable and compatible with existing Fast Ethernet deployments.
• Auto MDI/MDIX:Yes — eliminates the need for crossover cables or worrying about port types.
• Recommended cabling:Cat5e / Cat6 UTP — common, cost‑effective cable types.
• Indicators:PoE indicator; Link/Activity indicator — quick visual confirmation of device and link status.

Benefit: Although limited to Fast Ethernet speeds, the extender supports bandwidth requirements of many surveillance and access point applications where Gigabit throughput is not essential.

• Dimensions:83.0 × 51.5 × 24.0 mm — small, unobtrusive footprint.
• Weight:≈ 88.6 g — lightweight for easy mounting.
• Operating temperature:-20 °C to +55 °C; storage -40 °C to +85 °C.
• Operating humidity:5%–95% non‑congealing.
• Warranty:1 year (manufacturer policy as per datasheet).

Benefit: The resilient operating range and tiny form factor make the extender suitable for a variety of indoor and protected outdoor enclosure installations.

Use Cases and Scenarios Where This Extender Excels

Surveillance cameras are a classic application. When a camera must be mounted more than 100 metres from the nearest PoE switch or injector, placing the FS-PSE1001-E10 in line extends both the data and power feed by another 100 metres — allowing camera placement in optimal locations without trenching for power or installing local power outlets.

For retail stores, warehouses, or campus corridors where AP placement is dictated by coverage rather than proximity to power, this extender gives installers the flexibility to situate APs in ideal positions without adding electrical infrastructure.

In older buildings or temporary sites where running new electrical wiring is costly or prohibited, the FS-PSE1001-E10 offers a fast, low‑cost way to reach devices. Because it supports both Mid‑Span and End‑Span PoE, it works with a wide variety of existing equipment.

Its compact size, simple operation and low price point make this unit a useful tool in an installer’s kit for ad hoc reach extension needs during field deployments and troubleshooting.

Comparisons with Similar Products on the Market

When evaluating PoE extenders you’ll typically see several tradeoffs: number of ports, supported power levels, data throughput, and price. Here’s how the FS-PSE1001-E10 compares in common categories:

The FS-PSE1001-E10 is a single‑port device focused on extending one run. Multi‑port PoE extenders or repeaters exist that add multiple downstream ports or aggregate links, but they are larger, more expensive and often require local power or offer higher power budgets. If you only need to extend a single camera or AP, the single‑port approach is more compact and cost‑effective.

For devices needing more than 15.4 W (for example, some PTZ cameras, lighting, or more powerful APs), a PoE+ (30 W) or higher solution is required. The FS-PSE1001-E10 intentionally targets standard PoE devices; it is not suitable when PoE+ power is needed. The advantage is lower cost and smaller size for the common 802.3af class of devices.

Gigabit PoE extenders are available, but they are typically more expensive. Many surveillance cameras and APs do not require Gigabit throughput; in those cases a 10/100 extender like the FS-PSE1001-E10 delivers reliable performance at lower cost. If your installation specifically needs >100 Mbps throughput end‑to‑end, choose a Gigabit device instead.

With a suggested retail price of approximately $49.99 (check local pricing and supply), the FS-PSE1001-E10 sits attractively for budget‑minded projects. It offers practical functionality at a modest price compared with larger, higher‑power extenders.

Customer Feedback and Example Testimonials

Below are representative customer comments that reflect the kinds of feedback installers and small site owners typically provide for devices in this class. These are sample testimonials intended to illustrate typical user sentiment:

• "Saved me a day of work"— "We needed one camera mounted on a wall beyond the switch room. This extender was tiny, easy to hide and worked first time. No extra power runs, no fuss."
• "Great for retrofits"— "On a store refit, running new power would have been a pain. This gave us the reach we needed and kept costs down."
• "Simple and reliable"— "LEDs made troubleshooting quick. The unit handled the link and power with no issues in our cold room installation."

Note: If you need verified, on‑site customer reviews for marketing or procurement, request case studies or reference customers from your supplier.

Limitations and Practical Considerations

• Power budget:15.4 W limits use to 802.3af devices — check PD power draw before deploying.
• Speed:10/100 Mbps only — not suitable where Gigabit performance is required.
• Single port:Each extended device needs its own unit; plan accordingly for multi‑device deployments.
• Certifications:The summary datasheet does not list CE/UKCA explicitly — confirm certifications with the supplier or official datasheet for your region and compliance needs.

Conclusion: Why Choose the FS-PSE1001-E10

The FS-PSE1001-E10 Single‑Port PoE Extender is an economical, easy‑to‑use solution for extending both power and 10/100 Mbps data by an additional 100 metres. It is best suited to scenarios where standard IEEE 802.3af power is sufficient and where Gigabit speeds or multi‑port expansions are not required. Its compact size, plug‑and‑play behavior and support for both Mid‑Span and End‑Span make it flexible for field deployments and retrofit work.

For installers and site owners seeking a low‑cost way to reach remote IP cameras, access points or VoIP devices without running mains power, the FS-PSE1001-E10 balances performance, simplicity and price. If your project’s power or bandwidth needs exceed 15.4 W or 100 Mbps, consider higher‑power or Gigabit alternatives; otherwise, this extender offers a practical and cost‑effective option backed by a manufacturer warranty.

• Model:FS-PSE1001-E10
• PoE output:Up to 15.4 W (IEEE 802.3af)
• Data rate:10/100 Mbps
• Range:Adds up to 100 m to a PoE run
• Form factor:Compact desk or wall mountable
• Warranty:1 year
