GJD PoE IR Illuminator, 850 nm, 101 m Range, IP66, 12 W, IS-8-P
Free Delivery
101m Range
PoE+ Enabled
£
270
35
(Incl. VAT)
RRP: £290.46

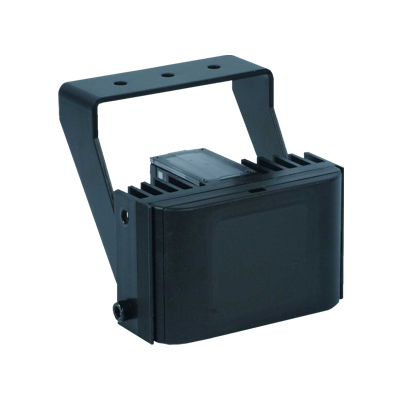

Clarius® Plus IR Illuminator (PoE+, 101m Range)
About this product
About this product
The Clarius® Plus range of high performance Infra-Red LED illuminators are designed to provide class-leading performance, long life and ultra low maintenance.
- Latest surface mount Dual core LED’s with enhanced optical output.
- Integrated control circuitry for consistent illumination.
- Ability to operate over a distance of up to 101 metres.
- Interchangeable lens diffuser system for adaptable illumination angles.
- IP66 Weather Proof Rating ensures durability.
- Photocell for automatic operation based on ambient light conditions.
-
Download
- Clarius IS PoE spec
- Clarius manual
£
270
35
RRP: £290.46
Save £20.11
FAST delivery by Order within
Price
Technical Details
Specifications
Manufacturer
GJD
LED™ • Latest SMT
Technology
Aluminium
Latest SMT dual core
IS-8-P
850nm
IS-9-P
940nm
Electronics
High Efficiency Surface Mount High Power LEDs’ ™
Construction
Robust High Quality Aluminium Extrusion
Front Window
Polycarbonate High Transmission Protective (Vandal
Finish
Black Anodised
Power Cable
3m (9ft) with waterproof RJ45 connector
Interface Connector
Photocell Following Contact & Remote Telemetry
Pressure Equalisation Vent
Prevents Thermal Expansion & Pressure Cycling
Photocell
Adjustable 20 -70 Lux
Illumination
Adjustable 10% - 100%
Operating Temperature
-50° to 50°C (-58° to 122°F)
Weight
750g (1.65lbs)
Mount
Powder Coated Stainless Steel Wall Mount
Dimensions
68 x 110 x 78mm (2.68” x 4.33” x 3.07”)
Power Over Ethernet (PoE)
IEEE802af Compliant Interface, Power Classification
Consumption
12W
Standard
850nm (Semi Covert). Faint Red Glow Only
Safety
EN60598:2004 Electrical Safety
EN60825-1
Laser Eye Safety
RoHS
Restriction Of Hazardous Substance European
Specifications
| Manufacturer | GJD |
|---|---|
| LED™ • Latest SMT | Technology |
| Aluminium | Latest SMT dual core |
| IS-8-P | 850nm |
| IS-9-P | 940nm |
| Electronics | High Efficiency Surface Mount High Power LEDs’ ™ |
| Construction | Robust High Quality Aluminium Extrusion |
| Front Window | Polycarbonate High Transmission Protective (Vandal |
| Finish | Black Anodised |
| Power Cable | 3m (9ft) with waterproof RJ45 connector |
| Interface Connector | Photocell Following Contact & Remote Telemetry |
| Pressure Equalisation Vent | Prevents Thermal Expansion & Pressure Cycling |
| Photocell | Adjustable 20 -70 Lux |
| Illumination | Adjustable 10% - 100% |
| Operating Temperature | -50° to 50°C (-58° to 122°F) |
| Weight | 750g (1.65lbs) |
| Mount | Powder Coated Stainless Steel Wall Mount |
| Dimensions | 68 x 110 x 78mm (2.68” x 4.33” x 3.07”) |
| Power Over Ethernet (PoE) | IEEE802af Compliant Interface, Power Classification |
| Consumption | 12W |
| Standard | 850nm (Semi Covert). Faint Red Glow Only |
| Safety | EN60598:2004 Electrical Safety |
| EN60825-1 | Laser Eye Safety |
| RoHS | Restriction Of Hazardous Substance European |
Clarius® Plus IR Illuminator (PoE+, 101m Range) features
GJD PoE IR Illuminator, 850 nm, 101 m Range, IP66, 12 W, IS-8-P
