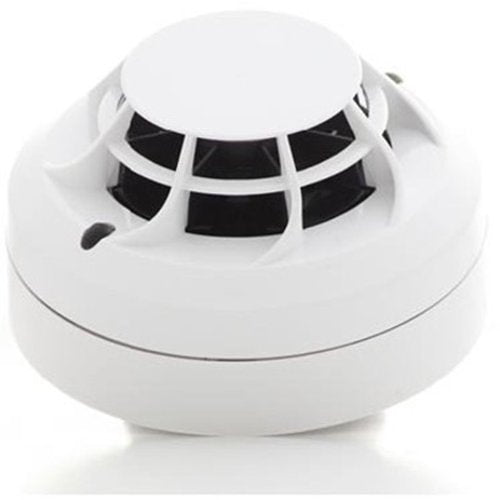

System Sensor 22051TE-26 multi-sensor detector, Plug-in Base
About this product
System Sensor 22051TE-26 is a multi-sensor detector from the Series 200 range.
Discover the advanced System Sensor 22051TE-26 Multi-sensor Detector, a state-of-the-art fire safety solution designed to enhance protection in modern buildings. This multi-criteria detector integrates photoelectric and thermal sensing elements to provide accurate and reliable fire detection. It features a revolutionary new mechanical platform and chamber, and is equipped with the Series 200 Advanced Protocol for enhanced functionality.
Available with optional single pole short circuit isolation, it also includes a tri-color LED that displays red, green, and amber colors for clear status indication. The detector's sleek, pure white design seamlessly complements contemporary interiors, while its rotary decade address switches offer easy configuration. Ensuring 100% compatibility with existing systems, this detector is a top choice for safety and aesthetics.
Key features
- Two sensor multi-criteria fire detector incorporating photoelectric, and thermal sensing elements
- New mechanical platform with revolutionary chamber
- Includes Series 200 Advanced Protocol
- Available with or without single pole short circuit isolation with status control through the Series 200 Advanced Protocol
- Tri colour LED offering red, green and amber colours
- Rotary decade address switches
- Pure white colour to compliment modern buildings
- 100% mechanical and electrical backwards compatibility
- New Base design to compliment the detector
Specifications
Technical information
Controls/indicators
Environmental conditions
Physical characteristics
Power description
Product information
Miscellaneous
Attributes
Specifications
| Brand Name | System Sensor |
|---|---|
| Manufacturer Part Number | 22051TE-26 |
| Product Series | Series 200 |
| Product Type | Multicriteria (opt/thermal) |
Technical information
| Connectivity Technology | Wired |
|---|---|
| LED Indicator | Tri-colour |
| Sensing Technology | Photoelectric |
| Sensor Type | Temperature Sensor |
Controls/indicators
| Status Indicators | Yes |
|---|
Environmental conditions
| Operating Relative Humidity (H-H) | 10-93% |
|---|---|
| Operating Temperature (T-T) | 80°C |
Physical characteristics
| Colour | White |
|---|---|
| Form Factor | Plug-in Base |
| Height | 61.00mm |
| Material | ABS, Polycarbonate (PC) |
Power description
| Input Voltage | 15-32V DC |
|---|
Product information
| Diameter | 102.00mm |
|---|
Miscellaneous
| Compatibility | 22051E/EI, 22051TLE/TLEI, 52051E/EI, 52051HTE/HTEI, 52051RE/REI, B500 (B501, B501AP, B501DG, B524HTR, B524IEFT-1), B524RTE, Please refer to other 200 Advanced Datasheets |
|---|---|
| Environmental certification | EN54 |
| Environmental status | Yes |
Attributes
| Compatibility | 22051E/EI, 22051TLE/TLEI, 52051E/EI, 52051HTE/HTEI, 52051RE/REI, B500 (B501, B501AP, B501DG, B524HTR, B524IEFT-1), B524RTE, Please refer to other 200 Advanced Datasheets |
|---|---|
| Input Voltage | 15-32V DC |
