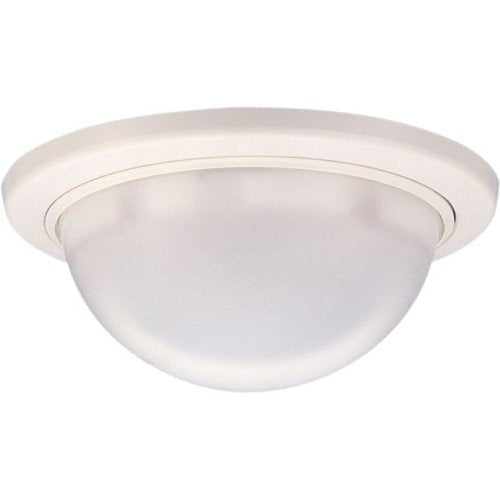

Takex PA-6820E passive infrared detector, Dome

Please note: this is a non-returnable item (excluding faulty goods)

Takex PA-6820E is a passive infrared detector from the PA-6800 range.

This page covers Takex part PA-6820E. Everything below is recorded against that exact part number rather than against the wider range it belongs to.

The figures held against it cover application/usage, maximum motion sensing distance, passive infrared sensor (pir) among others. Anything not listed we have not stated.

Ask us before you order if you need something confirmed. We will check it against the manufacturer's own documentation and tell you what it says.

Key features

• Application/Usage: Indoor. This is the figure the record carries for this exact part number.
• Maximum Motion Sensing Distance: 20m. Parts in the same family can differ here, so check the code rather than the family.
• Passive Infrared Sensor (PIR): Present on this part number. The record states it as a property of this part rather than of the wider range. It is listed for this part number, not for the range as a whole.
• Sensor Type: Infrared Sensor. Where your specification names a figure, compare it against this one before ordering.
• WEEE compliance: Recorded as compliant with the Waste Electrical and Electronic Equipment rules, which govern how the product is taken back and recycled at end of life. Parts in the same family can differ here, so check the code rather than the family.
• Operating Temperature (T-T): -15-55°C. This is the figure the record carries for this exact part number.
• Colour: Silver. Where your specification names a figure, compare it against this one before ordering.
• Form Factor: Dome. It is listed for this part number, not for the range as a whole.
• Height: 47.00mm. This is the figure the record carries for this exact part number.
• Material: Resin. Parts in the same family can differ here, so check the code rather than the family.
• Weight: 109.10g. It is listed for this part number, not for the range as a whole.
• Diameter: 120.00mm. Where your specification names a figure, compare it against this one before ordering.
• Mount Type: Ceiling Mount. Parts in the same family can differ here, so check the code rather than the family.
• Features: Compact Design. This is the figure the record carries for this exact part number.

Use cases

Specify this part where the passive infrared detector role is already decided and the figures listed above are the ones that have to be met. The points below are the placement-relevant entries from the same record.

• Where it goes: Recorded for indoor use.
• Mounting: Recorded as ceiling mount.
• Typical application: Indoor.

If you are matching this to an existing installation, work from the PA-6820E part number rather than the description.
