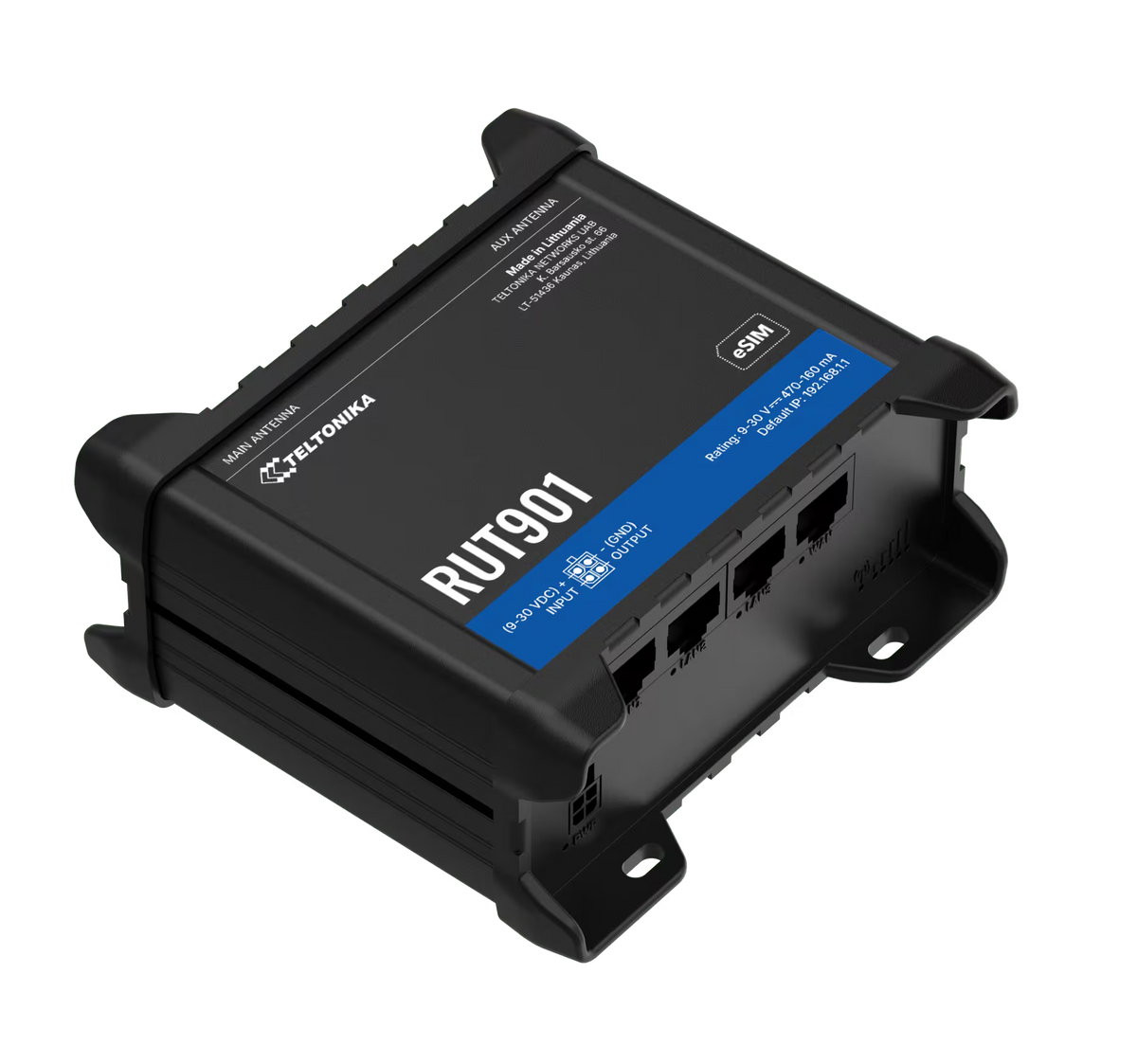

Teltonika RUT901 Industrial Cellular Router, 4G LTE (Cat 4), Dual SIM
Free Delivery
£
170
97
(Incl. VAT)
RRP: £205.16
About this product
The Teltonika RUT901 is an industrial cellular router with 4G LTE (Cat 4), 3G and 2G connectivity, dual SIM with auto failover and a Wi-Fi access point with hotspot functionality. It provides automatic WAN failover to a backup connection and has 1 x WAN and 3 x LAN Ethernet ports at 10/100 Mbps.
Key features
- 4G LTE Cat 4 up to 150 DL/50 UL Mbps
- Dual SIM with auto failover
- 802.11b/g/n (Wi-Fi 4) access point with hotspot, up to 100 simultaneous connections
- 1 x WAN and 3 x LAN ports, 10/100 Mbps
- OpenVPN, IPsec and WireGuard VPN support
- MQTT, Modbus TCP and DNP3 protocols
- 9 – 30 VDC input via a 4-pin industrial DC power socket
- Operating temperature -40 °C to 75 °C
Frequently asked questions
Does the RUT901 take two SIM cards?
Yes. It has 2 x SIM slots (Mini SIM - 2FF) and auto-switches between its 2 SIM cards on cases such as weak signal, data limit, roaming or no network.
What mobile speeds does the RUT901 support?
4G LTE Cat 4 up to 150 DL/50 UL Mbps; 3G up to 21 DL/5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL kbps.
What comes in the box with the RUT901?
The standard contents are the RUT901 router, a 9 W PSU, 2x mobile antennas (swivel, SMA male), 2x Wi-Fi antennas (swivel, RP-SMA male), an Ethernet cable (1.5 m), a SIM adapter kit and a QSG (Quick Start Guide). Standard contents may differ based on standard order codes.
Can the RUT901 be mounted on a DIN rail?
Yes. Mounting options are DIN rail, wall mount or flat surface, and all require an additional kit.
Can the RUT901 be managed remotely?
Yes. It supports the Teltonika Remote Management System (RMS).
£
170
97
RRP: £205.16
Save £34.19
Price
Technical Details
Specifications
Brand
Teltonika
Model
RUT901
Manufacturer Part Number (MPN)
RUT901
Connectivity
4G LTE (Cat 4), 3G, 2G
Mobile module
4G LTE Cat 4 up to 150 DL/50 UL Mbps; 3G up to 21 DL/5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL kbps
SIM switch
2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
SIM
2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders
Wireless mode
802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA)
Wi-Fi users
Up to 100 simultaneous connections
WAN
1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX
LAN
3 x LAN ports, 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
Ethernet
4 x RJ45 ports, 10/100 Mbps
Antennas
2 x SMA for LTE, 2 x RP-SMA for Wi-Fi antenna connectors
Status LEDs
1 x Bi-color connection status, 5 x Mobile connection strength, 4 x ETH status, 1 x Power
Protocols
MQTT, Modbus TCP, DNP3
CPU
Mediatek, 580 MHz, MIPS 24KEc
RAM
128 MB, DDR2
FLASH storage
16 MB, SPI Flash
Operating system
RutOS (OpenWrt based Linux OS)
Input
1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
Output
1 x Digital Output, Open collector output, max output 30 V, 300 mA
Power connector
4-pin industrial DC power socket
Input voltage range
9 – 30 VDC, reverse polarity protection; surge protection >31 VDC 10us max
PoE (passive)
Passive PoE over spare pairs. Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC
Power consumption
< 2 W idle, < 7 W Max
Casing material
Aluminium housing, plastic panels
Dimensions (W x H x D)
110 x 50 x 100 mm
Weight
297 g
Mounting options
DIN rail, wall mount, flat surface (all require additional kit)
Operating temperature
-40 °C to 75 °C
Operating humidity
10% to 90% non-condensing
Ingress Protection Rating
IP30
Regulatory
CE, UKCA, IMDA, Anatel, RCM, E-mark, ECE R118, CB, RoHS, REACH, NCC
Specifications
| Brand | Teltonika |
|---|---|
| Model | RUT901 |
| Manufacturer Part Number (MPN) | RUT901 |
| Connectivity | 4G LTE (Cat 4), 3G, 2G |
| Mobile module | 4G LTE Cat 4 up to 150 DL/50 UL Mbps; 3G up to 21 DL/5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL kbps |
| SIM switch | 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection |
| SIM | 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders |
| Wireless mode | 802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA) |
| Wi-Fi users | Up to 100 simultaneous connections |
| WAN | 1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX |
| LAN | 3 x LAN ports, 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX |
| Ethernet | 4 x RJ45 ports, 10/100 Mbps |
| Antennas | 2 x SMA for LTE, 2 x RP-SMA for Wi-Fi antenna connectors |
| Status LEDs | 1 x Bi-color connection status, 5 x Mobile connection strength, 4 x ETH status, 1 x Power |
| Protocols | MQTT, Modbus TCP, DNP3 |
| CPU | Mediatek, 580 MHz, MIPS 24KEc |
| RAM | 128 MB, DDR2 |
| FLASH storage | 16 MB, SPI Flash |
| Operating system | RutOS (OpenWrt based Linux OS) |
| Input | 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high |
| Output | 1 x Digital Output, Open collector output, max output 30 V, 300 mA |
| Power connector | 4-pin industrial DC power socket |
| Input voltage range | 9 – 30 VDC, reverse polarity protection; surge protection >31 VDC 10us max |
| PoE (passive) | Passive PoE over spare pairs. Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC |
| Power consumption | < 2 W idle, < 7 W Max |
| Casing material | Aluminium housing, plastic panels |
| Dimensions (W x H x D) | 110 x 50 x 100 mm |
| Weight | 297 g |
| Mounting options | DIN rail, wall mount, flat surface (all require additional kit) |
| Operating temperature | -40 °C to 75 °C |
| Operating humidity | 10% to 90% non-condensing |
| Ingress Protection Rating | IP30 |
| Regulatory | CE, UKCA, IMDA, Anatel, RCM, E-mark, ECE R118, CB, RoHS, REACH, NCC |
