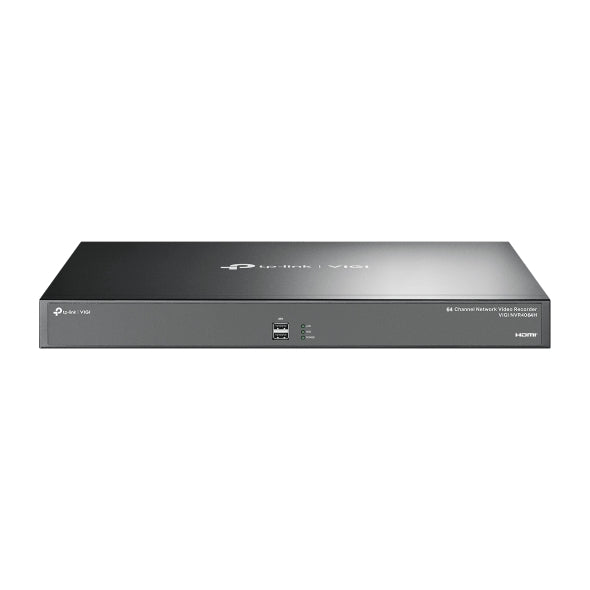

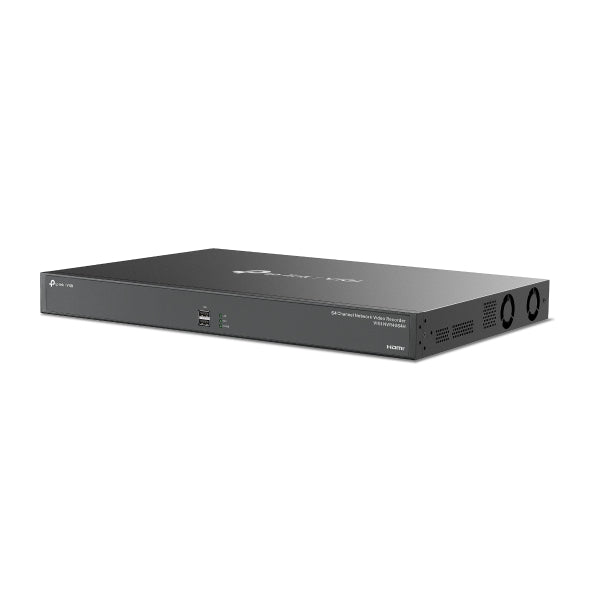

TP-Link VIGI NVR4064H | 64-Channel 4K Network Video Recorder, No HDD, Max 64TB, Dual HDMI, H.265+, Remote Monitoring | SKU: VIGI NVR4064H

Upgrade your surveillance infrastructure with the TP-Link VIGI NVR4064H (SKU: VIGI NVR4064H), a professional-grade 64-Channel Network Video Recorder built to meet the rigorous demands of enterprise-level security systems. With cutting-edge features including 4K dual HDMI output, H.265+ compression, and up to 64TB local storage support, this high-performance NVR is ideal for safeguarding large commercial properties, retail chains, manufacturing facilities, and public sector environments.

Key Features:

64-Channel IP Video Input
The VIGI NVR4064H supports up to 64 IP cameras, making it the ultimate solution for comprehensive coverage of expansive sites such as airports, stadiums, and shopping centres. Its decoding capacity supports up to:

• 16-ch @ 2MP (25fps)

• 32-ch @ 720p (25fps)

• 64-ch @ D1 resolution

4K HDMI Video Output with Independent Display
With 2 HDMI and 1 VGA output interfaces, the NVR supports independent output configurations, enabling flexible live view and playback arrangements across control room monitors. HDMI1 supports up to 3840x2160 (4K) @ 30Hz, ensuring crystal-clear image display.

 H.265+ Smart Video Compression
Leverage advanced H.265+ encoding to reduce bandwidth usage and storage consumption without compromising video quality. This allows longer retention periods and improved efficiency without straining your network infrastructure.

Massive Local Storage – 64TB Capacity
Supports 4 SATA hard drives, each with a maximum capacity of 16 TB, giving a total capacity of up to 64 TB. This means you can retain high-resolution 24/7 footage for longer periods, ideal for audit trails, compliance, or post-event investigation.

Dual Gigabit Ethernet Ports
Two 10/100/1000 Mbps RJ-45 Ethernet ports offer support for:

• Multi-address mode (for segmented networks),

• Load balancing, and

• Network fault tolerance, ensuring uninterrupted data transmission and redundancy.

16-Channel Synchronous Playback
Quickly access past events with powerful 16-channel simultaneous playback. Advanced playback functions include tagging, event filtering, digital zoom, variable speed, and video clipping for evidence retrieval.

ONVIF Profile S & CGI Protocol Compatibility
The NVR is fully compatible with third-party IP cameras via ONVIF, allowing flexible integration into mixed-brand surveillance ecosystems.

Remote Access via VIGI Ecosystem
Monitor your security network from anywhere using the VIGI mobile app (iOS/Android), web browser, or VIGI Security Manager software. This allows you to stay connected and in control, whether you're onsite or remote.

Advanced Alarm Management
Equipped with 16 alarm inputs and 4 alarm outputs, plus intelligent alerts including:

• Motion,

• Intrusion,

• Scene change,

• Object removal,

• Video tampering, and more.
  These alarms can trigger recording, visual/audible alerts, or remote notifications, enhancing threat response capabilities.

Technical Specifications Summary:

• Brand: TP-Link

• Model: VIGI NVR4064H

• SKU: VID-VIGITPNVR4064H

• Video Input: 64 IP Channels

• Output: Dual HDMI + VGA (independent output)

• Decoding Capability: 4-ch@8MP, 6-ch@5MP, 8-ch@4MP, 16-ch@2MP

• Compression: H.265+/H.265/H.264+/H.264

• Storage: 4 × SATA (up to 64 TB total)

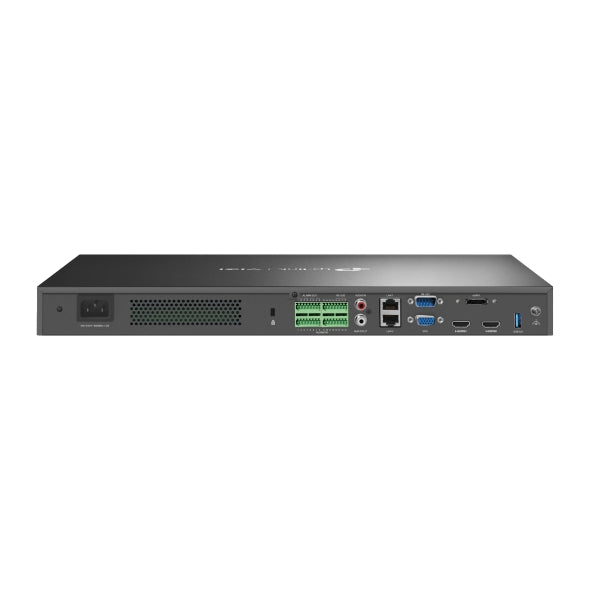

• Interfaces:

  • 2× Gigabit LAN

  • 2× USB 2.0 + 1× USB 3.0

  • 1× eSATA

  • 1× RS232

  • Audio: 1-in / 1-out RCA

  • Alarm: 16-in / 4-out

• Power Supply: 100–240V AC

• Dimensions: 440 x 330 x 44 mm

• Weight: 4.0 kg

• Warranty: 5 Years

Example Use Case:

For a multi-site logistics hub, the TP-Link VIGI NVR4064H can centralise video feeds from 64 perimeter and warehouse cameras. With dual HDMI output, operators can view strategic zones on dedicated screens while simultaneously reviewing incidents on another. All footage is securely stored on four 16TB drives with automatic alerts sent to mobile devices upon motion detection or camera disconnection—offering peace of mind and actionable surveillance around the clock.
