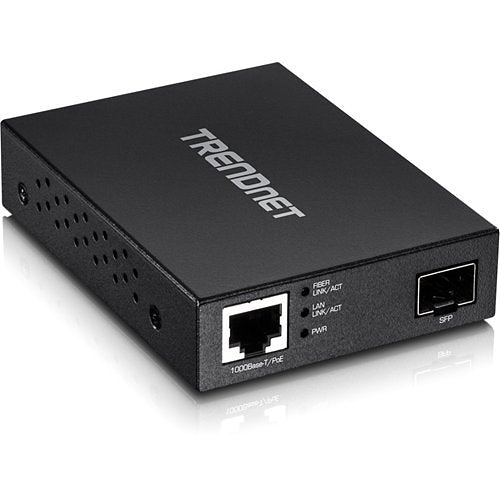

TRENDnet TFC-PGSFP fiber media converter, Wall Mount
About this product
TRENDnet TFC-PGSFP is a fiber media converter from the TFC range.
TRENDnet's Gigabit PoE PD SFP Fiber Media Converter, model TFC-PGSFP, converts 100/1000BASE-T copper Ethernet to 1000BASE-SX/LX Fiber SFP media and vice versa. The TFC-PGSFP is conveniently powered via PoE switch or injector, no power adapter is required. It features one gigabit PoE input port for power and data, plus one SFP slot that supports both multimode (SX) or single-mode (LX) SFP modules.
The SFP slot accommodates both Fast Ethernet and Gigabit SFP modules providing further installation flexibility. Dual Speed SFP Slot
Dual-speed SFP slot supports both 100Mbps and 1000Mbps SFP modules for multimode or single-mode fiber applications. PoE Powered
No power adapter required-this fiber SFP converter is powered via an 802.3af/at PoE switch or injector at distances up to 100m (328 ft.). Compact
Small and compact metal housing design provides greater installation flexibility. Ports
1 x 100/1000BASE-T RJ-45 PoE input port, 1 x 100/1000BASE-SX/LX SFP slot
PoE Powered
Dual-speed SFP slot supports both 100Mbps and 1000Mbps SFP modules
Jumbo Frame
Sends larger packets, or jumbo frames (up to 9KB), for increased performance
Key features
- 1 x 100/1000BASE-SX/LX SFP slot
- Supports Link Fault Pass-Through (LFPT)
- Jumbo Frame (9KB) Support
If you are matching this to an existing installation, work from the TFC-PGSFP part number rather than the description.
Specifications
General information
Technical information
I/o expansions
Interfaces/ports
Media & performance
Network & communication
Physical characteristics
Power description
Product information
Miscellaneous
Attributes
Specifications
| Brand Name | TRENDnet |
|---|---|
| Manufacturer Part Number | TFC-PGSFP |
| Product Series | TFC |
| Product Type | Transceiver/Media Converter |
General information
| Packaged Quantity | 1 |
|---|
Technical information
| Media Type Supported | Optical Fiber, Twisted Pair |
|---|---|
| Power Consumption | 2.6000W |
I/o expansions
| Expansion Slot Type | SFP |
|---|---|
| Number of SFP Slots | 1 |
| Number of Total Expansion Slots | 1 |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|---|
| Number of Network (RJ-45) Ports | 1 |
| Number of PoE (RJ-45) Ports | 1 |
| Number of Ports | 1 |
Media & performance
| Network Technology | 1000Base-SX, 1000Base-T |
|---|
Network & communication
| Ethernet Technology | 1 Gbps (Gigabit Ethernet) |
|---|
Physical characteristics
| Depth | 254.00mm |
|---|---|
| Height | 101.60mm |
| Width | 254.00mm |
Power description
| Power Source | PoE (Power over Ethernet) |
|---|
Product information
| Mount Type | Wall Mount |
|---|
Miscellaneous
| Environmental certification | CE |
|---|---|
| Environmental status | Yes |
| Package Contents | TFC-PGSFP, Quick Installation Guide |
Attributes
| Power Source | PoE (Power over Ethernet) |
|---|
