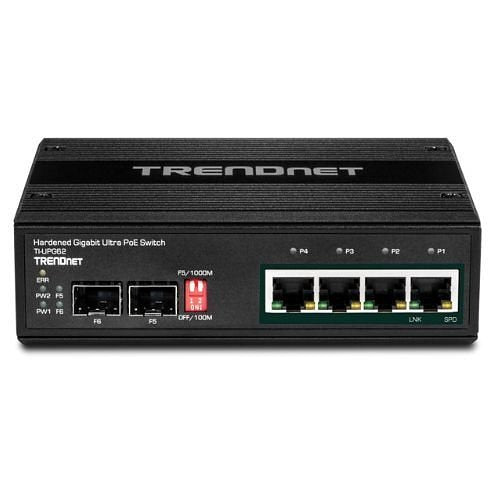

TRENDnet TI-UPG62 PoE din-rail switch, DIN Rail, Wall Mount
About this product
TRENDnet TI-UPG62 is a PoE din-rail switch from the TI range.
TRENDnet's TI-UPG62 is a reliable IP30 unmanaged DIN-rail Ultra PoE switch with a rugged housing rated for extreme industrial environments. It offers 4 Gigabit Ultra PoE ports, 240 W PoE power budget, two dedicated SFP slots, and a 12 Gbps switching capacity. Redundant power inputs and a power failure alarm relay.
A 240 watt PoE power budget supplies up to four Power over Ethernet devices with PoE (15.4 W), PoE+ (30 W) or Ultra PoE (60 W) power. Features redundant power inputs (Primary and RPS) from external power sources and an output alarm relay to indicate the event of input power failure. Equipped with a rugged IP30 rated enclosure and designed to withstand a high degree of vibration, shock, protection against ESD / EMI / surge, and operate with a wide temperature range (- 40 – 75 °C (- 40 - 167 °F)) for harsh environments.
Package Contents:
- TI-UPG62
- Quick Installation Guide
Removable terminal block DIN-Rail and wall mount kit
Key features
- 4 x Gigabit Ultra PoE ports
- 2 x dedicated SFP slots
- 240 watt power budget
- 12 Gbps switching capacity
- Hardened IP30 rated metal switch
- Includes DIN-rail and wall mounts
- Extreme -40 to 75 ºC (-40 to 167 ºF) operating temperature range
- Redundant power inputs with overload current protection
- Alarm output triggered by power failure
- Power supply sold separately (TI-S24048)
-
Download
- TI-UPG62 — Product Manual
Specifications
Technical information
I/o expansions
Interfaces/ports
Management & protocols
Media & performance
Network & communication
Physical characteristics
Power description
Product information
Miscellaneous
Attributes
Specifications
| Brand Name | TRENDnet |
|---|---|
| Manufacturer Part Number | TI-UPG62 |
| Product Series | TI |
| Product Type | Ethernet Switch |
Technical information
| Media Type Supported | Optical Fiber, Twisted Pair |
|---|---|
| Power Consumption | 6.2000W |
I/o expansions
| Expansion Slot Type | SFP |
|---|---|
| Number of SFP Slots | 2 |
| Number of Total Expansion Slots | 2 |
| Shared SFP Slot | No |
Interfaces/ports
| Modular | Yes |
|---|---|
| Total Number of Network Ports | 6 |
| Uplink Port | No |
Management & protocols
| Manageable | No |
|---|
Media & performance
| Network Technology | 1000Base-T |
|---|
Network & communication
| Ethernet Technology | 1 Gbps (Gigabit Ethernet), 100 Mbps (Fast Ethernet) |
|---|---|
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
Physical characteristics
| Depth | 152.00mm |
|---|---|
| Height | 51.00mm |
| Material | Metal |
| Width | 102.00mm |
Power description
| Input Voltage | 56V DC |
|---|---|
| PoE (RJ-45) Port | No |
| PoE Budget | 120W |
| Power over Ethernet (PoE) | Yes |
Product information
| Mount Type | DIN Rail Mount, Wall Mount |
|---|
Miscellaneous
| Environmental status | Yes |
|---|---|
| Features | Auto store and forward architecture, Automatic address learning and address aging, Auto-Negotiation, Hardened components rated for extreme temperatures, Multiple power inputs |
| Package Contents | 6-Port Hardened Industrial Gigabit Ultra PoE DIN-Rail Switch Quick Installation Guide Removable terminal block DIN-rail and wall mount kit |
Attributes
| Input Voltage | 56V DC |
|---|---|
| Package Contents | 6-Port Hardened Industrial Gigabit Ultra PoE DIN-Rail Switch Quick Installation Guide Removable terminal block DIN-rail and wall mount kit |
| Number of SFP Slots | 2 |
