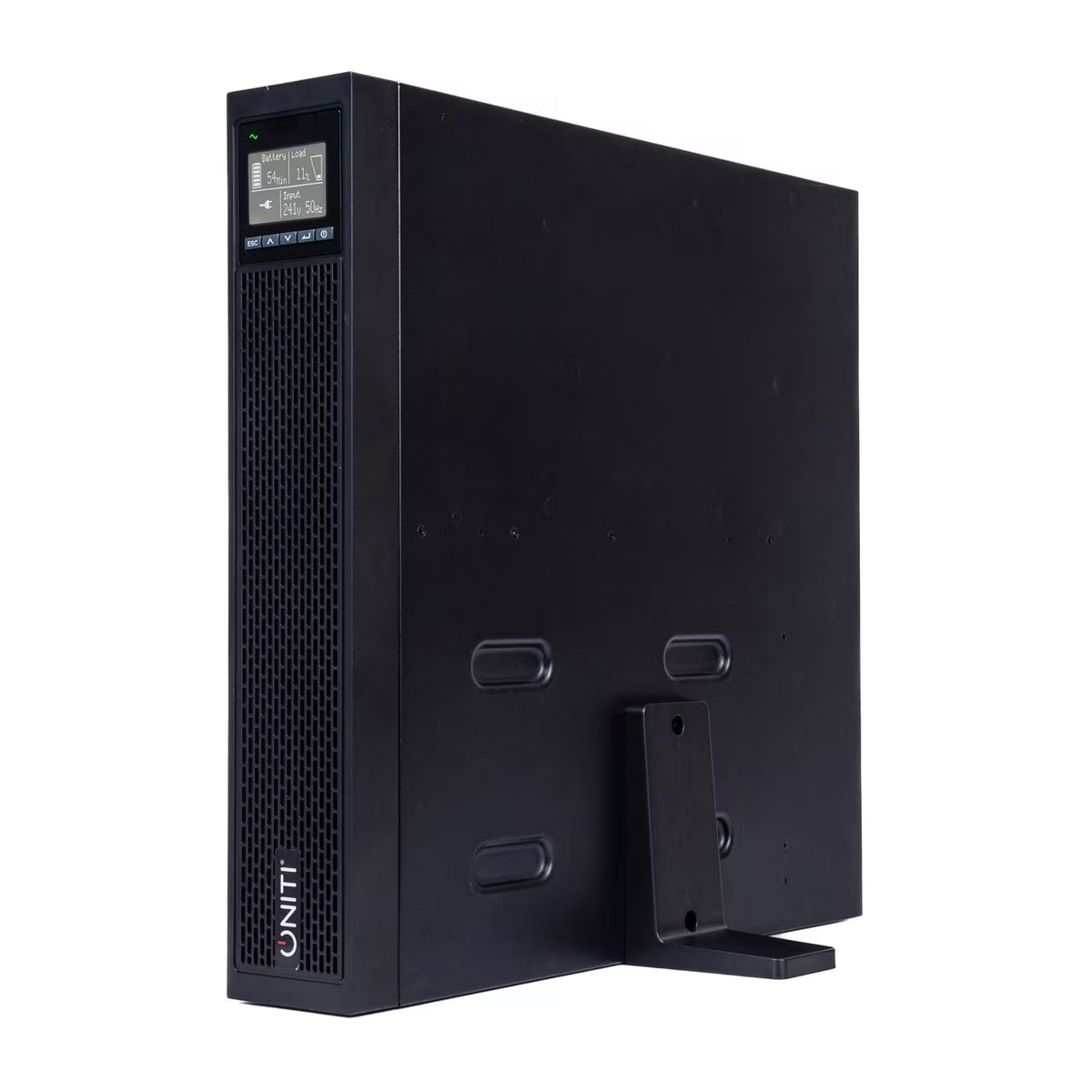

Uniti Power SPY1500RMI2U Online Double Conversion UPS, 1500VA / 1500W, 2U
About this product
The Uniti Power Symphony SPY1500RMi2U is a 1500VA/1500W online double conversion UPS in a 2U format, with a pure sine wave output, unity power factor and hot swappable batteries. IoT monitoring software gives real-time UPS monitoring to support business continuity and failure prevention.
Key features
- 1500VA/1500W power rating with unity power factor
- Online double conversion with pure sine wave output
- 89% efficiency in double conversion mode, 97% in ECO mode
- Hot swappable batteries, with up to 4 external battery modules
- Outlets: 8 x IEC C13; input: IEC C14
- Typical backup time (default battery capacity, PF=1): 2.4min at 100% load, 8.7min at 50% load
- RJ45 Ethernet port for IoT, USB 2.0 with HID, RS232 (DB9), programmable dry in/out and EPO
- Dot matrix LCD, rotatable manually, in 10 languages
Frequently asked questions
How long will the SPY1500RMi2U run on battery?
Typical backup time with the default battery capacity (PF=1) is 2.4min at 100% load and 8.7min at 50% load. Up to 4 external battery modules can be added.
What outlets and input connection does it have?
It has 8 x IEC C13 outlets, arranged as 1 main outlet group (with 4 x IEC C13) + 1 programmable outlet group (with 4 x IEC C13). Input is via an IEC C14 connection.
Can it be rack or tower mounted?
It is a 2U unit measuring 438x445x86.5 mm (WxDxH). Rack ears and tower feet are included in its accessories; a rail kit is optional.
How is it monitored?
It has an RJ45 Ethernet port for IoT monitoring, USB 2.0 with HID, RS232 (DB9) and an intelligent slot for an optional NMC network card. Winpower monitor software is supported.
What is the transfer time?
0ms, with 4ms between line and bypass and 10ms between ECO and inverter.
Are the batteries hot swappable?
Yes. The internal battery is 36VDC (3 x 12V/9Ah), with a recharging time of 3h to 90%.
Specifications
Specifications
| Brand | Uniti Power |
|---|---|
| Model | SPY1500RMI2U |
| Manufacturer Part Number (MPN) | SPY1500RMI2U |
| Power rating VA/Watt | 1500VA/1500W |
| Topology | Online double conversion |
| Output waveform | Pure sine wave |
| Efficiency (double conversion mode) | 89% |
| Efficiency (ECO mode) | 97% |
| Input voltage range | 160-300V 100% load, 110-160V derating to 50% load linearly |
| Input frequency range | 40Hz-70Hz (45Hz-55Hz 54Hz-66Hz @ load>60%) |
| Input connection | IEC C14 |
| Output rated voltage | 200/208/220/230/240VAC (derating 10% at 208V, derating 20% at 200V) |
| Voltage accuracy | ±1% |
| THDv | <1% linear load, <5% non linear load |
| Transfer time | 0ms (4ms @ line <-> bypass; 10ms @ ECO <-> Inverter) |
| Overload (line mode) | 100% |
| Outlets | 8 x IEC C13 |
| Wiring/socket | 1 main outlet group (with 4 x IEC C13) + 1 programmable outlet group (with 4 x IEC C13) |
| Load segment control | Yes |
| Battery voltage | 36VDC |
| Battery capacity (AH) | 3 x 12V/9Ah |
| Backup time (typical, default battery capacity, PF=1) | 2.4min 100% load, 8.7min 50% load |
| Max external battery modules | 4 |
| Charging current | 1.5A |
| Recharging time | 3h to 90% |
| Display | Dot matrix LCD, rotatable manually (optional segment LCD) |
| Language | 10 Languages |
| USB | USB 2.0 with HID |
| RS232 | Yes (DB9) |
| Dry in/out | 1 programmable dry in; 1 programmable dry out |
| EPO | Yes |
| Intelligent slot | Yes (for long card) |
| Network card | Optional, NMC long card |
| Modbus card | Optional, CMC/Modbus Long Card |
| Dry contactor card | Optional, AS400 Long Card |
| Ethernet port for IoT | RJ45 |
| Monitor software | Winpower |
| Dimensions (WxDxH) | 438x445x86.5 mm (2U) |
| IP protection level | IP20 |
| Operating temperature | 0-40°C |
| Relative humidity | 0-95% |
| Operating altitude | 0-3000m (the load derating 1 % every up 100m @1000-3000m) |
| Acoustic noise | <45dB @ typical load with battery fully charge |
| Certification | CE, IEC/EN 62040 |
| Rail kit | Optional |
| Tower feet | Yes |
| Rack ear | Yes |
