Product Overview & Key Benefits

TheUX Series Compact 100V Mixer-Amplifieris designed for versatility and high power efficiency, making it the ideal solution for various audio applications. With a compact design, it integrates seamlessly into any setup. The primary benefits include its built-in media player, which enhances music playback capabilities, and the ability to connect multiple audio sources, including Bluetooth. Perfect for installations in medium-sized areas such as schools, shopping centres, and restaurants, this amplifier ensures quality audio performance without taking up excessive space.

Technical Specifications & Product Details

• Model Number:UX Series Compact
• Supplier SKU:953.014UK
• Output Power:120W RMS

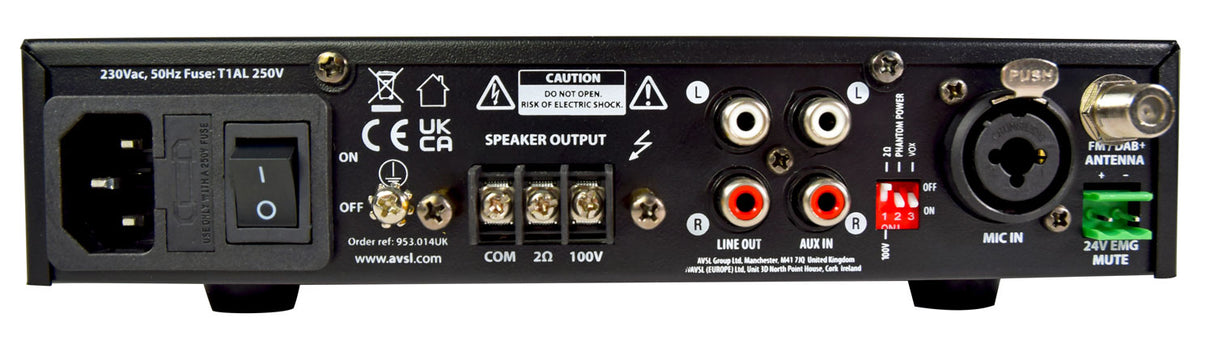

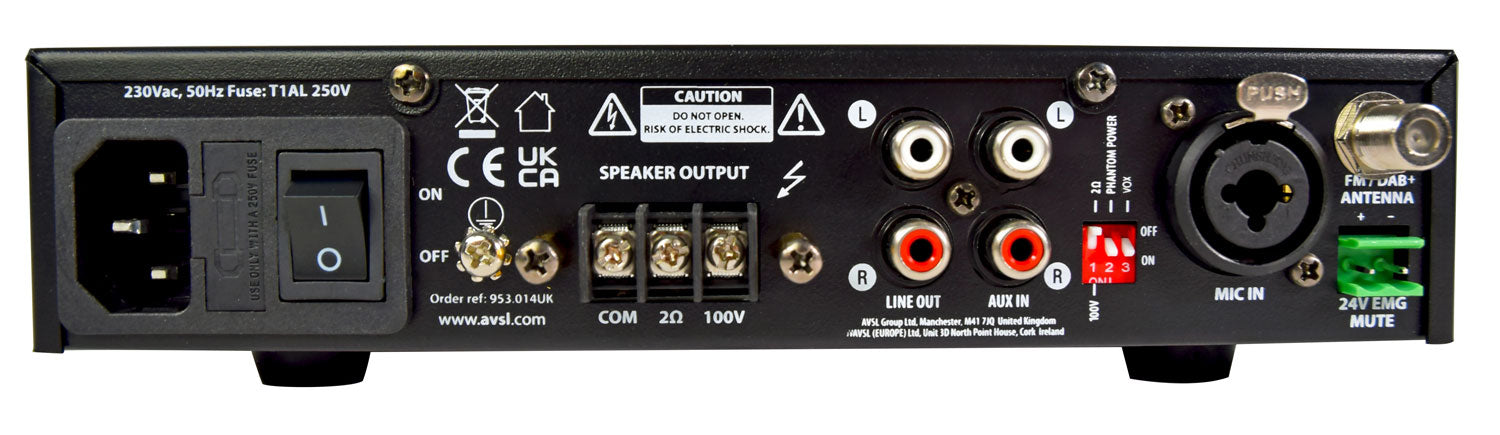

• Speaker Outputs:Screw terminals - 100V / 2 Ohms / Com
• Input Types:1 x Mic (jack/XLR), 1 x Line (2 x RCA), 1 x Aux (3.5mm)
• Weight:3.36 kg
• Dimensions:320 x 210 x 54 mm
• Line Output:2 x RCA (mono)
• Audio Source:Internal USB/DAB+/FM/BT player
• Bluetooth Version:5.0
• Power Supply:170-264VAC, 50Hz (IEC)
• Input Impedance:1 kOhms (mic/line)
• Mute Feature:24V relay contacts
• Input Sensitivity:-10 dB (line), -45 dB (mic)
• Amplifier Construction:Class D + transformer output

Ideal Uses & Applications

The UX Series Compact 100V Mixer-Amplifier is extremely versatile and can be employed in a range of settings:

• Domestic DIY:Ideal for home audio setups, enhancing the sound experience in living rooms or outdoor areas.
• Commercial Buildings:Perfect for public address systems in offices, ensuring announcements are clear and impactful.
• Hospitality Settings:Suitable for cafes and restaurants, providing background music or announcements without disrupting customers.
• Events:Great for temporary setups at events, meetings, or seminars where quality sound is essential.

Energy Efficiency & Cost Savings

The UX Series mixer-amplifier features advanced Class D amplification technology, which not only provides powerful output but also ensures energy efficiency. Users can experiencesignificant cost savingson power consumption compared to traditional amplifiers, as Class D amps are known to operate with lower heat output and less power draw. This also contributes to a reduced environmental footprint, aligning with eco-friendly initiatives. Users can save up to 30 percent on electricity bills when switching to this energy-efficient model.
