Vanco EVSP1013 cable, 1920 x 1080
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Vanco EVSP1013 is a cable.

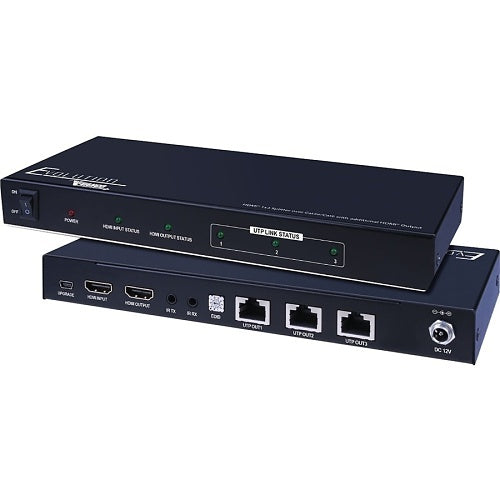

Discover the power of seamless connectivity with the Vanco EVSP1013 Evolution HDMI 1x3 Splitter. This device allows a single HDMI input to be split and transmitted to four different displays, ensuring high-quality video and audio distribution. It features three RJ45 output ports with POE functionality, extending 1080p at 60Hz video up to 164ft/50m when paired with the EVRX2006 POE Receiver (sold separately).
Additionally, it includes an extra HDMI output for local displays or further cascading, supports a wide range of audio formats like Dolby True HD and DTS-master, and is compatible with all 3D signal formats. With options for dynamic or manual EDID management and HDCP 2.0 compatibility, the Vanco splitter is perfect for both home and professional setups. Enhance your multimedia experience—order yours today!
Key features
- Allows for 1 HDMI input to be split and sent to 4 different displays
- (3) RJ45 output ports with POE Functionality can connect to the EVRX2006 POE Receiver (sold separately) over Cat5e/Cat6 cable to transmit 1080p at 60Hz video with audio and control up to 164ft/50m
- Power over the Cat5e/Cat6 so that the EVRX2006 receivers do not require a power supply
- Features an additional HDMI output which can be used for a local display or to cascade to another splitter for a larger distribution system
- Supports 20-60kHz wideband bi-direction IR communication
- Dynamic or manual EDID management. The user can manually select the best compatible EDID or automatically blend EDID of 4 connected HDMI sinks
- Supports multiple audio formats including Dolby True HD- DTS-master- etc.
- Supports all 3D Signal Formats
- Supports manual or dynamic EDID management
- HDCP 2.0 compatible
If you are matching this to an existing installation, work from the EVSP1013 part number rather than the description.
Specifications
Technical information
Display & graphics
Interfaces/ports
Physical characteristics
Power description
Attributes
Specifications
| Brand Name | Vanco |
|---|---|
| Manufacturer Part Number | EVSP1013 |
| Product Type | Signal Splitter |
Technical information
| Maximum Operating Distance | 50m |
|---|
Display & graphics
| Maximum video resolution | 1920 x 1080 |
|---|
Interfaces/ports
| Network (RJ-45) | Yes |
|---|---|
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 1 |
| Number of Network (RJ-45) Ports | 3 |
Physical characteristics
| Depth | 88.90mm |
|---|---|
| Height | 25.40mm |
| Width | 205.70mm |
Power description
| Input Voltage | 12V DC |
|---|---|
| Maximum Frequency | 60.00Hz |
| Minimum Frequency | 20kHz |
Attributes
| Input Voltage | 12V DC |
|---|---|
| Package Contents | EVSP1013 Splitter; (1) IR Blasters (TX); (1) IR Receiver (RX); (1) DC 12V 2A power supply; Product Manual |
