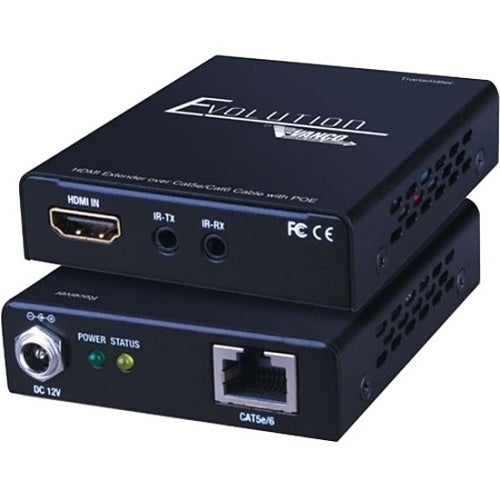

Vanco EVEX2006 cable extender, 1920 x 1080
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Vanco EVEX2006 is a cable extender from the Evolution range.
Discover the power of seamless connectivity with the Vanco EVEX2006 Evolution Ultra Slim HDMI Extender. This innovative device allows you to transmit HDMI audio/video signals effortlessly over a single CAT5e or CAT6 cable. Equipped with Power over Ethernet (PoE) technology, it simplifies installation by using one power source for both the transmitter and receiver.
Its slim, compact design fits neatly behind any system. The extender supports a wide band Bi-directional IR system, enabling control of the source or display with included IR accessories. Experience full HD 1080p resolution and 3D at distances up to 50m (164ft).
It also features Auto EDID and EQ Management for hassle-free plug and play setup. Compatible with HDMI and HDCP compliant devices and ensures pure, uncompressed 7.1 channel digital audio.
Key features
- Allows HDMI audio/video signals to be transmitted using a single Cat5e or Cat6 Cable
- Features Power over Ethernet (PoE) Technology which transmits power over Cat5e/Cat6- allowing the transmitter and receiver to be powered off of a single power supply
- Slim and compact design
- Wide band Bi-directional IR system allowing for control of source or display (IR accessories included)
- Wideband IR signal from 20KHz to 60KHz
- Transmission Range: Extends HDMI transmission up to 50m (164ft) from the HDMI source at Full HD 1080p 24-bit color and 3D
- Features Auto EDID and EQ Management for plug and play installation
- Works with HDMI and HDCP compliant devices
- HDCP 2.0 compliant
- Pure uncompressed 7.1ch digital audio
Specifications
Technical information
Display & graphics
Environmental conditions
Interfaces/ports
Physical characteristics
Power description
Video
Miscellaneous
Attributes
Specifications
| Brand Name | Vanco |
|---|---|
| Manufacturer Part Number | EVEX2006 |
| Product Series | Evolution |
| Product Type | Video Extender Transmitter/Receiver |
Technical information
| Cable Type | Category 6 |
|---|---|
| Connectivity Technology | Wired |
| Media Type Supported | Twisted Pair |
| Number of Input Devices Supported | 1 |
| Number of Output Devices Supported | 1 |
Display & graphics
| Maximum video resolution | 1920 x 1080 |
|---|
Environmental conditions
| Operating Temperature (T-T) | 0-40°C |
|---|---|
| Storage Temperature (T-T) | -20-60°C |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|---|
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 1 |
| Number of Network (RJ-45) Ports | 2 |
Physical characteristics
| Colour | Black |
|---|---|
| Depth | 82.55mm |
| Height | 17.78mm |
| Material | Metal Enclosure |
| Width | 68.58mm |
Power description
| Input Voltage | 12V DC |
|---|
Video
| Graphics Mode | Full HD |
|---|
Miscellaneous
| Package Contents | EVEX2006 (TX and RX) 2 IR Blasters (TX) 2 IR Receivers (RX) 1 DC 12V in line power supply Product Manual |
|---|
Attributes
| Input Voltage | 12V DC |
|---|---|
| Package Contents | EVEX2006 (TX and RX) 2 IR Blasters (TX) 2 IR Receivers (RX) 1 DC 12V in line power supply Product Manual |
