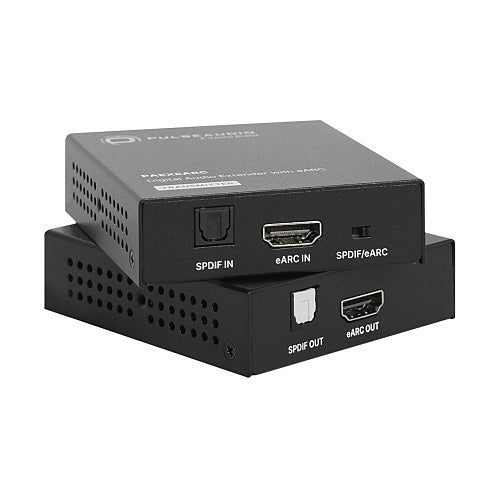

Vanco PAEXEARC digital audio extender
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Vanco PAEXEARC is a digital audio extender.
The PulseAudio PAEXEARC digital audio extender with eARC is capable of transmitting HDMI eARC or ARC digital audio signals up to 328' (100m) over a single CAT5e/6 cable. It can also transmit digital optical audio signals up to 656ft (200m). The receiver is equipped with a built-in ARC backup plan, ensuring that both SPDIF and HDMI outputs are active to accommodate various scenarios.
The extender features bi-directional PoC (power over cable), allowing either end to be plugged into power for flexible installation. It also supports CEC pass-through when HDMI eARC/ARC audio is selected.
Key features
- Extends eARC/ARC or optical digital audio signals over a single CAT5e/6 cable
- Supports eARC/ARC distribution up to 328' (100m)
- Supports optical audio distribution up to 656' (200m)
- Supports CEC pass-through when HDMI eARC/ARC mode is selected
- SPDIF and HDMI outputs are always live for a truly customized audio solution
- Features bi-directional PoC (Power over Cable)
- Selection between HDMI eARC/ARC or optical digital audio via switch on the TX
If you are matching this to an existing installation, work from the PAEXEARC part number rather than the description.
-
Download
- PAEXEARC — User Manual
Specifications
Technical information
Power description
Miscellaneous
Specifications
| Brand Name | Vanco |
|---|---|
| Manufacturer Part Number | PAEXEARC |
| Product Type | Audio Extender |
Technical information
| Cable Type | Category 5e |
|---|
Power description
| Frequency | 20kHz |
|---|
Miscellaneous
| Package Contents | 1 x Digital audio extender set - TX and RX, 1 x Mounting brackets and screws, 1 x Power adapter (12VDC, 1A), 1 x Quick start guide |
|---|
