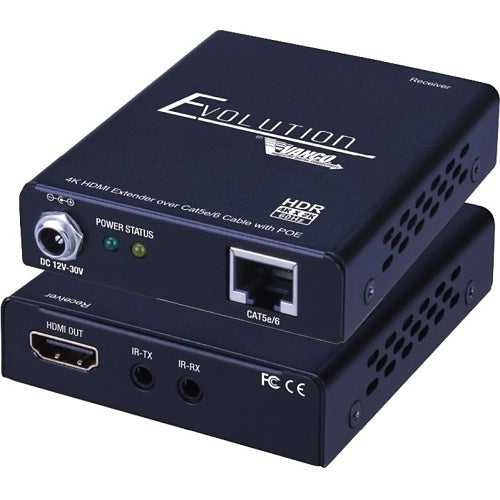

Vanco EV4K2006 HDMI extender, 4096 x 2160
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Vanco EV4K2006 is an HDMI extender.
The Evolution by Vanco EV4K2006 HDMI Extender over Single Cat5e/6 with Bi-directional IR, auto EDID/EQ, and Bi-directional PoE extends 4K ultra high definition video with HDR and audio signals, IR, and power. Extends 4K@60Hz, 4:4:4 Chroma Subsampling and HDR up to 164ft/50m, and 4K@30Hz, 4:4:4 Chroma Subsampling, and HDR up to 130ft/40m. Bidirectional Power over Ethernet (PoE) Technology transmits power over Cat5e/6, allowing either the Transmitter or Receiver to be powered without the use of a power supply.
No EDID or EQ adjustments are necessary as the units automatically adjusts for compatibility and gain. This extender set also features a newly redesigned slim and compact chassis for easy and flexible installations. This product fully supports DTS-HD and Dolby TrueHD audio formats and is HDCP compliant.
In addition, bi-directional IR pass-through allows for source or display control. For extending HDMI over a single Cat5e/6 with IR at a long distance, with Power over Ethernet, the EV4K2006 is a great plug and play solution! The EV4K2006 includes two units: transmitting unit (EV4K2006-TX) and receiving unit (EV4K2006-RX).
The transmitting unit is used to capture the HDMI input with IR signals and carries the signals via one cost effective Cat5e/6 cable. The receiving unit is responsible for equalizing the transmitted HDMI signal and reconstructing IR signals. The EV4K2006 offers the most convenient solution for HDMI extension over a single Cat5e/6 with Power over Ethernet and is the perfect solution for any application.
Key features
- Allows HDMI audio/video signals to be transmitted using a single Cat5e or Cat6 Cable
- Transmission Range: Extends 4Kat 60Hz, 4:4:4 Chroma up to 164ft/50m and 4Kat 30Hz, 4:4:4 Chroma and HDR up to 130ft/40m over a single Cat5e/6 cable
- Features Power over Ethernet (PoE) Technology which transmits power over Cat5e/Cat6, allowing the transmitter and receiver to be powered off of a single power supply
- Wideband Bi-directional IR system allowing for control of source or display (IR accessories included)
- Wideband IR signal from 20KHz to 60KHz
- Features Auto EDID and EQ Management for plug and play installation
- HDR10 Compatible
- Works with HDMI and HDCP compliant devices
- HDCP 2.2 compliant
- Slim and compact design
If you are matching this to an existing installation, work from the EV4K2006 part number rather than the description.
Specifications
Technical information
Display & graphics
Interfaces/ports
Physical characteristics
Video
Miscellaneous
Attributes
Specifications
| Brand Name | Vanco |
|---|---|
| Manufacturer Part Number | EV4K2006 |
| Product Type | Video Extender Transmitter/Receiver |
Technical information
| Cable Type | Category 6 |
|---|---|
| Connectivity Technology | Wired |
| Maximum Operating Distance | 50m |
| Media Type Supported | Twisted Pair |
| Number of Input Devices Supported | 1 |
| Number of Output Devices Supported | 1 |
Display & graphics
| Maximum video resolution | 4096 x 2160 |
|---|
Interfaces/ports
| Network (RJ-45) | Yes |
|---|---|
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 1 |
| Number of Network (RJ-45) Ports | 2 |
Physical characteristics
| Colour | Black |
|---|---|
| Depth | 82.55mm |
| Height | 17.78mm |
| Width | 68.58mm |
Video
| Graphics Mode | 4K UHD |
|---|
Miscellaneous
| Package Contents | 1 x Transmitter 1 x Receiver 2 x IR Blasters (TX) 2 x IR Receivers (RX) 1 x DC 12V In Line Power Supply Product Manual |
|---|
Attributes
| Package Contents | 1 x Transmitter 1 x Receiver 2 x IR Blasters (TX) 2 x IR Receivers (RX) 1 x DC 12V In Line Power Supply Product Manual |
|---|
