Vanco ICW6-MB in-wall speaker, In-ceiling
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Vanco ICW6-MB is an in-wall speaker.
SHALLOW DEPTH IN CEILING/IN WALL 6.5" 2-WAY POWERED BY SONIC VORTEX Our Sonic Vortex technology generates rich, deep bass and effortless clarity from what most people would call a 'back box', but is not. It is actually a compact, integrated tuned enclosure. This patented technology is a 'twist' on Ported Transmission Line design, that optimizes air movement to produce astonishing sound.
The enclosure also keeps sound from bleeding to other rooms while adding 6 to 9dB boost in mid-lower bass.
Key features
- Shallow Depth – Under 4"
- 6.5” Injected PolypropyleneWoofer
- 1” Aluminum Dome Pivoting Tweeter
- Installed Frequency Response: 68 Hz – 22 kHz
- Cutout: 8.4” (214mm)
- Diameter 9.4” (239mm)
- Depth: 3.8” (97mm)

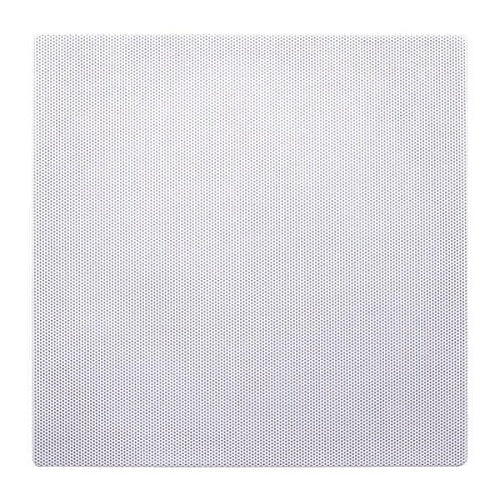

- Grill:Magnetic Bezelless; White – Paintable
If you are matching this to an existing installation, work from the ICW6-MB part number rather than the description.
Specifications
Technical information
Audio
Environmental conditions
Physical characteristics
Product information
Attributes
Specifications
| Brand Name | Vanco |
|---|---|
| Manufacturer Part Number | ICW6-MB |
| Product Type | In-Ceiling/In-Wall Speaker |
Technical information
| Crossover Type | 2-Way |
|---|---|
| Impedance | 8Ohm |
| Sensitivity | 89dB |
| Speaker Size | 165.10mm |
| Wireless Speaker | No |
Audio
| Maximum Frequency Response | 24kHz |
|---|---|
| Minimum Frequency Response | 56Hz |
| RMS Output Power | 120W |
Environmental conditions
| Sound Emission | 9dB |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Depth | 98.00mm |
| Enclosure Type | Sealed |
| Form Factor | In-ceiling, In-wall |
| Material | Injected Polypropylene |
Product information
| Diameter | 239.00mm |
|---|---|
| Mount Type | In-ceiling Mount, In-wall Mount |
Attributes
| RMS Output Power | 120W |
|---|
