Vanco EVSW1061 multi-format scaler switcher, 1920 x 1200
About this product
Please note: this is a non-returnable item (excluding faulty goods)

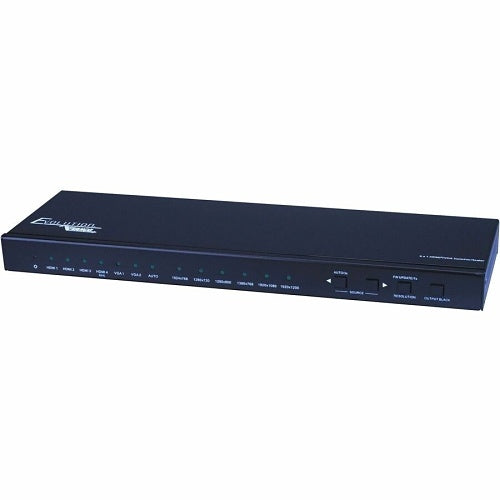

Vanco EVSW1061 is a multi-format scaler switcher.
Discover the Vanco EVSW1061 Evolution, a versatile 6x1 multi-format scaler switcher perfect for your multimedia needs. This compact device features six video inputs including three HDMI, two VGA, and one HDMI/MHL, along with two auxiliary audio inputs and multiple audio outputs. Effortlessly switch between VGA, HDMI/DVI, and MHL inputs to one HDMI output, scaling to six different resolutions to meet your preferences.
Enjoy high-quality video with resolutions up to 4K and 1080p 3D. The EVSW1061 supports advanced EDID management, RS232, IR control, and is HDCP 1.4 compliant. It also offers MHL 2.0 support with auto detection and device charging capabilities.
Enhance your setup with this reliable and high-performing switcher. Make it yours today and elevate your viewing experience!
Key features
- Compact 6×1 multi-format switcher with 6 video inputs (3 HDMI- 2 VGA- 1 HDMI/MHL)- 2 auxiliary audio inputs mirrored to the VGA inputs- 1 HDMI output and 3 audio outputs (1 dual-mono analog audio- 1 3.5mm stereo audio- 1 optical audio)
- Switches VGA or HDMI/DVI/MHL input signals to HDMI output
- Scales to 6 different resolutions- VGA to HDMI output – Output resolutions selectable to assure preferred output. Supports various output resolutions- such as 1920×1200- 1920×1080- 1360×768- 1280×800- 1024×768- 1280×720
- Bypass HDMI feature provides comprehensive resolution capacities up to 4K & 1080p 3D
- Transmits 4K/UHD @ 30 HZ up to 50 ft. / 15m
- Supports RS232 and IR control
- Supports advanced EDID management
- Supports MHL 2.0- Maximum Resolution 1080p
- MHL auto detection- Supports device charging over MHL- maximum 5V 900mA
- HDCP 1.4 Compliant
-
Download
- EVSW1061 — User Manual
Specifications
Technical information
Display & graphics
Interfaces/ports
Physical characteristics
Product information
Video
Miscellaneous
Attributes
Specifications
| Brand Name | Vanco |
|---|---|
| Manufacturer Part Number | EVSW1061 |
| Product Type | Video Switchbox |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Device Supported | A/V Receiver, Blu-ray Disc Player, Computer, Gaming Console, Satellite Receiver, TV |
| Maximum Operating Distance | 15m |
| Number of Input Devices Supported | 6 |
Display & graphics
| Maximum video resolution | 1920 x 1200 |
|---|
Interfaces/ports
| Number of HDMI Inputs | 4 |
|---|---|
| Number of HDMI Outputs | 1 |
| Number of USB Ports | 1 |
| VGA In | Yes |
Physical characteristics
| Depth | 109.20mm |
|---|---|
| Height | 27.90mm |
| Width | 348.00mm |
Product information
| Number of Displays Supported | 1 |
|---|
Video
| Graphics Mode | 4K UHD |
|---|---|
| Scan Format | 1080p |
Miscellaneous
| Package Contents | Evolution 6×1 Multi-Format Scaler Switcher IR Receiver IR Remote DC 5V 3A Power Supply Mounting Hardware 2 x 3-pin Pluggable terminal blocks Product Manual |
|---|
Attributes
| Device Supported | A/V Receiver, Blu-ray Disc Player, Computer, Gaming Console, Satellite Receiver, TV |
|---|---|
| Package Contents | Evolution 6×1 Multi-Format Scaler Switcher IR Receiver IR Remote DC 5V 3A Power Supply Mounting Hardware 2 x 3-pin Pluggable terminal blocks Product Manual |
