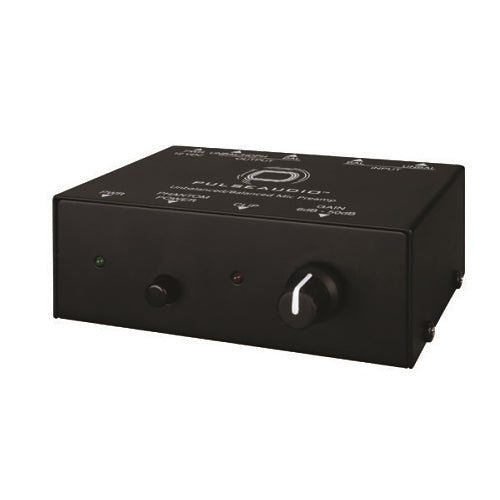

Vanco PA-MICPRE pro amplifier
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Vanco PA-MICPRE is a pro amplifier.
The PulseAudio PA-MICPRE is a microphone preamplifier that provides a small, simple, and easy to use microphone pre-amplification solution for a variety of applications. Featuring both balanced XLR and unbalanced 1/4” inputs and outputs, along with a single gain control with a clipping indicator. The 1/4” output is uniquely designed for use as a mono unbalanced output, or a stereo headphone output.
Phantom power option is provided for use with a condenser microphones. For any applications requiring a microphone to be added, the PA-MICPRE is a great solution that is simple and easy to use!
Key features
- XLR and 1/4” inputs and outputs
- 1/4” output for mono or stereo applications
- Input impedance: 10K ohm (balanced/unbalanced)
- Max input level: +4dBv balanced, +10dBv unbalanced
- Manual gain control
- Clipping indicator
- 36V phantom power
If you are matching this to an existing installation, work from the PA-MICPRE part number rather than the description.
-
Download
- PA-MICPRE — User Manual
Specifications
Technical information
Certifications
Miscellaneous
Specifications
| Brand Name | Vanco |
|---|---|
| Manufacturer Part Number | PA-MICPRE |
| Product Type | Pro Amplifier |
Technical information
| Impedance | 1000Ohm |
|---|
Certifications
| RoHS compliance | Compliant |
|---|---|
| WEEE Compliant | Compliant |
Miscellaneous
| Package Contents | (1) 12V power supply, (1) Microphone preamplifier, (1) Product manual |
|---|
