Vanco EVOIPLITE pro HDMI extender, 1920 x 1080

Visit AV Distribution & Extenders
Free Delivery
£ 346 75
(Incl. VAT)

About this product

Please note: this is a non-returnable item (excluding faulty goods)

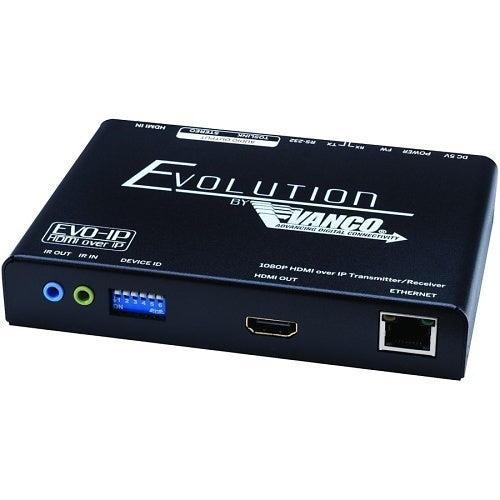

Vanco EVOIPLITE is a pro HDMI extender.

The Evolution by Vanco EVOIPLITE HDMI over IP Transmitter/Receiver is a complete audio, video, and control product over ethernet system. As a whole, the system has the ability to send multiple sources to multiple displays along with IR and RS232 pass-through, analog and digital audio breakout in TX mode, video up to 1080P@60Hz, with POE up to 100m when connected to a POE enabled switch off of a single Cat6 cable. This one single unit can be set to transmit or receive signals.

When connected to a network with internet, the EVO-IP Cloud allows for additional features such as scheduling events or maintenance, remote monitoring of a system including remote diagnostics and troubleshooting, as well as voice control capabilities with Alexa! With an IP-less installation option as well as any new sources/displays being discovered automatically within the system, the EVO-IP HDMI over IP system is the fast, easy, and cost effective solution for both residential and commercial installations. HDMI over IP Transmitter/Receiver

EVO-IP HDMI over IP unit that can be set to transmit or receiver

Compatible with EVO-IP Control Box (EVOIPCTL1) for setup and control

Supports 1080p@60Hz

EVO-IP system can support multiple transmitters and receivers

Utilizes the same network, switch, and control box as other EVO-IP products (EVOIPTX1, EVOIPRX1)

HDCP 1.4 Compliant

POE or can be powered using provided power supply

Manual dip switch configurable for a truly IP-Less installation

Easy GUI automatically detects new devices in the system

iOS and Android app available

Customizable labels and names of sources and displays

Setup through the GUI can be done without a computer even being on site

Analog and Digital audio breakouts

Dynamic EDID

IR and RS232 Pass-through

Supports Protocol: IP, TCP, UDP, RTP, IPv4, DHCP, HTTP, IGMP, ICMP, MULTICAST, UNICAST

Bitstream rate of up to 15Mbps

Latency: 720P (190-240ms), 1080P (380-430ms)

Connects to the cloud to schedule events or to troubleshoot a situation remotely (opportunity for recurring revenue)

Able to be controlled with Alexa for voice controlled switching

Dimensions:5.2" W x 0.8" H x 3.8" D

Key features

  • HDMI over IP unit that can be set to transmit or receive
  • Supports 1080pat 60Hz
  • System can support over multiple transceivers
  • HDCP 1.4 Compliant
  • POE or can be powered using provided power supply
  • Manual dip switch configurable for a truly IP-Less installation
  • Easy GUI automatically detects new devices in the system
  • iOS and Android app available
  • Customizable labels and names of sources and displays
  • Setup through the GUI can be done without a computer even being on site

If you are matching this to an existing installation, work from the EVOIPLITE part number rather than the description.

£ 346 75
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£346.75 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Info about this product
Technical Details
Specifications
Brand Name
Vanco
Manufacturer Part Number
EVOIPLITE
Product Type
Video Extender Transmitter/Receiver
Technical information
Cable Type
Category 6
Connectivity Technology
Wired
Maximum Operating Distance
100m
Media Type Supported
Twisted Pair
Number of Input Devices Supported
1
Number of Output Devices Supported
1
Certifications
RoHS compliance
Compliant
WEEE compliance
Compliant
Display & graphics
Maximum video resolution
1920 x 1080
Interfaces/ports
Network (RJ-45)
Yes
Number of HDMI Inputs
1
Number of HDMI Outputs
1
Number of Network (RJ-45) Ports
1
Number of USB Ports
1
Physical characteristics
Depth
96.52mm
Form Factor
Wall Mount
Height
20.32mm
Width
132.08mm
Power description
Power over Ethernet (PoE)
Yes
Product information
Mount Type
Wall Mount
Video
Graphics Mode
Full HD
Miscellaneous
Package Contents
1 x Transmitter 1 x Receiver 1 x IR Transmitter 1 x IR Receiver 5V 2A Power Supply Set of Mounting Ears/Screws Product Manual
Attributes
Package Contents
1 x Transmitter 1 x Receiver 1 x IR Transmitter 1 x IR Receiver 5V 2A Power Supply Set of Mounting Ears/Screws Product Manual
Specifications
Technical information
Certifications
Display & graphics
Interfaces/ports
Physical characteristics
Power description
Product information
Video
Miscellaneous
Attributes

Specifications

Brand Name Vanco
Manufacturer Part Number EVOIPLITE
Product Type Video Extender Transmitter/Receiver

Technical information

Cable Type Category 6
Connectivity Technology Wired
Maximum Operating Distance 100m
Media Type Supported Twisted Pair
Number of Input Devices Supported 1
Number of Output Devices Supported 1

Certifications

RoHS compliance Compliant
WEEE compliance Compliant

Display & graphics

Maximum video resolution 1920 x 1080

Interfaces/ports

Network (RJ-45) Yes
Number of HDMI Inputs 1
Number of HDMI Outputs 1
Number of Network (RJ-45) Ports 1
Number of USB Ports 1

Physical characteristics

Depth 96.52mm
Form Factor Wall Mount
Height 20.32mm
Width 132.08mm

Power description

Power over Ethernet (PoE) Yes

Product information

Mount Type Wall Mount

Video

Graphics Mode Full HD

Miscellaneous

Package Contents 1 x Transmitter 1 x Receiver 1 x IR Transmitter 1 x IR Receiver 5V 2A Power Supply Set of Mounting Ears/Screws Product Manual

Attributes

Package Contents 1 x Transmitter 1 x Receiver 1 x IR Transmitter 1 x IR Receiver 5V 2A Power Supply Set of Mounting Ears/Screws Product Manual

Vanco EVOIPLITE pro HDMI extender

Vanco EVOIPLITE pro HDMI extender, 1920 x 1080

Who this is for

For the installer — this is the pro HDMI extender supplied under Vanco part number EVOIPLITE. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is a pro HDMI extender made by Vanco. The part number EVOIPLITE is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this pro HDMI extender is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact pro HDMI extender I have been quoted? Check the manufacturer part number EVOIPLITE against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — the documentation attached to this listing was checked and names this exact part number. Documents that named only the family, or a different item, are not attached.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against EVOIPLITE answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.

Vanco EVOIPLITE pro HDMI extender
Vanco

Vanco EVOIPLITE pro HDMI extender, 1920 x 1080

£346.75

Please note: this is a non-returnable item (excluding faulty goods)

Vanco EVOIPLITE is a pro HDMI extender.

The Evolution by Vanco EVOIPLITE HDMI over IP Transmitter/Receiver is a complete audio, video, and control product over ethernet system. As a whole, the system has the ability to send multiple sources to multiple displays along with IR and RS232 pass-through, analog and digital audio breakout in TX mode, video up to 1080P@60Hz, with POE up to 100m when connected to a POE enabled switch off of a single Cat6 cable. This one single unit can be set to transmit or receive signals.

When connected to a network with internet, the EVO-IP Cloud allows for additional features such as scheduling events or maintenance, remote monitoring of a system including remote diagnostics and troubleshooting, as well as voice control capabilities with Alexa! With an IP-less installation option as well as any new sources/displays being discovered automatically within the system, the EVO-IP HDMI over IP system is the fast, easy, and cost effective solution for both residential and commercial installations. HDMI over IP Transmitter/Receiver

EVO-IP HDMI over IP unit that can be set to transmit or receiver

Compatible with EVO-IP Control Box (EVOIPCTL1) for setup and control

Supports 1080p@60Hz

EVO-IP system can support multiple transmitters and receivers

Utilizes the same network, switch, and control box as other EVO-IP products (EVOIPTX1, EVOIPRX1)

HDCP 1.4 Compliant

POE or can be powered using provided power supply

Manual dip switch configurable for a truly IP-Less installation

Easy GUI automatically detects new devices in the system

iOS and Android app available

Customizable labels and names of sources and displays

Setup through the GUI can be done without a computer even being on site

Analog and Digital audio breakouts

Dynamic EDID

IR and RS232 Pass-through

Supports Protocol: IP, TCP, UDP, RTP, IPv4, DHCP, HTTP, IGMP, ICMP, MULTICAST, UNICAST

Bitstream rate of up to 15Mbps

Latency: 720P (190-240ms), 1080P (380-430ms)

Connects to the cloud to schedule events or to troubleshoot a situation remotely (opportunity for recurring revenue)

Able to be controlled with Alexa for voice controlled switching

Dimensions:5.2" W x 0.8" H x 3.8" D

Key features

If you are matching this to an existing installation, work from the EVOIPLITE part number rather than the description.
