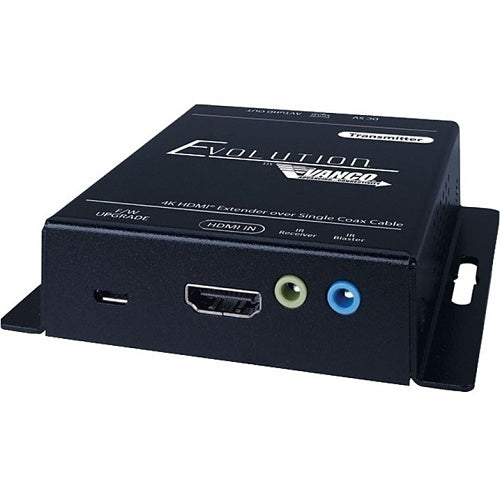

Vanco EV4K2004 single coax cable, 4096 x 2160
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Vanco EV4K2004 is a single coax cable.
The Evolution by Vanco EV4K2006 HDMI Extender over Single Cat5e/6 with Bi-directional IR, auto EDID/EQ, and Bi-directional PoE extends 4K ultra high definition video with HDR and audio signals, IR, and power. Extends 4K@60Hz, 4:4:4 Chroma Subsampling and HDR up to 164ft/50m, and 4K@30Hz, 4:4:4 Chroma Subsampling, and HDR up to 130ft/40m. Bidirectional Power over Ethernet (PoE) Technology transmits power over Cat5e/6, allowing either the Transmitter or Receiver to be powered without the use of a power supply.
No EDID or EQ adjustments are necessary as the units automatically adjusts for compatibility and gain. This extender set also features a newly redesigned slim and compact chassis for easy and flexible installations. This product fully supports DTS-HD and Dolby TrueHD audio formats and is HDCP compliant.
In addition, bi-directional IR pass-through allows for source or display control. For extending HDMI over a single Cat5e/6 with IR at a long distance, with Power over Ethernet, the EV4K2006 is a great plug and play solution! The EV4K2006 includes two units: transmitting unit (EV4K2006-TX) and receiving unit (EV4K2006-RX).
The transmitting unit is used to capture the HDMI input with IR signals and carries the signals via one cost effective Cat5e/6 cable. The receiving unit is responsible for equalizing the transmitted HDMI signal and reconstructing IR signals. The EV4K2006 offers the most convenient solution for HDMI extension over a single Cat5e/6 with Power over Ethernet and is the perfect solution for any application.
Key features
- Allows HDMI audio/video signals to be transmitted using a single coaxial cable
- Supports up to 4Kat 60Hz, 4:4:4 chroma subsampling, 8bits and HDR10
- Transmission range: Extends 4Kat 60Hz up to 330ft (100m); 4Kat 60Hz and HDR10 up to 230ft (70m) over a single RG6 coaxial cable
- HDMI 2.0 and HDCP 2.2/1.4 compliant
- Uncompressed 2CH digital HDMI over coaxial cable transmission
- Audio sample rate supports 32KHz, 44.1KHz, 48KHz
- Auto signal equalization and dynamic EDID
- Supports full frequency IR signal from 20KHz to 60KHz
- Bi-directional IR pass-through for source and/or display control
- Compact and wall mounting housing design for easy and robust installation
If you are matching this to an existing installation, work from the EV4K2004 part number rather than the description.
-
Download
- EV4K2004 — User Manual
Specifications
Technical information
Display & graphics
Interfaces/ports
Physical characteristics
Product information
Video
Miscellaneous
Attributes
Specifications
| Brand Name | Vanco |
|---|---|
| Manufacturer Part Number | EV4K2004 |
| Product Type | Video Extender Transmitter/Receiver |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Maximum Operating Distance | 100m |
| Media Type Supported | Coaxial |
| Number of Input Devices Supported | 1 |
| Number of Output Devices Supported | 1 |
Display & graphics
| Maximum video resolution | 4096 x 2160 |
|---|
Interfaces/ports
| Number of HDMI Inputs | 1 |
|---|---|
| Number of HDMI Outputs | 1 |
Physical characteristics
| Colour | Black |
|---|
Product information
| Mount Type | Wall Mount |
|---|
Video
| Graphics Mode | 4K UHD |
|---|
Miscellaneous
| Package Contents | 1 x Transmitter 1 x Receiver 1 x IR Blasters (TX) 1 x IR Receivers (RX) Mounting Hardware 2 x DC 5V, 2A Power Supplies Product Manual |
|---|
Attributes
| Package Contents | 1 x Transmitter 1 x Receiver 1 x IR Blasters (TX) 1 x IR Receivers (RX) Mounting Hardware 2 x DC 5V, 2A Power Supplies Product Manual |
|---|
