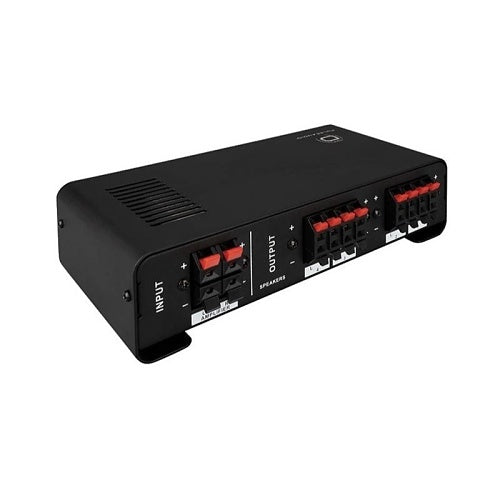

Vanco PA-SS4 speaker selector box
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Vanco PA-SS4 is a speaker selector box.
Discover the Vanco PA-SS4, a sleek 4-pair stereo speaker selector box designed for optimal audio distribution across four zones. This low-profile unit features a manual impedance protection circuit to safeguard your receiver by maintaining impedance above 5 Ohms, ensuring consistent sound quality regardless of speaker ratings. Optionally, deactivate this protection for a tailored impedance system with matching volume controls, enhancing sound across all areas.
Equipped with dual safety devices, it protects against line shorts and open connectors, supports up to 70 Watts per channel, and accommodates 14 to 18 AWG speaker wires with push-pin terminals. Upgrade your audio setup with Vanco PA-SS4 and experience seamless sound management. Don't wait, enhance your audio system today!
Key features
- Low profile speaker selector unit that allows for distribution of high level (amplified) stereo signals into four zones.
- Features a manually activated impedance protection circuit that can be activated to prevent the impedance to a receiver, this protection keeps the receiver from dropping below 5 Ohms, regardless of the impedance rating of the speakers utilized
- Impedance protection can also be de-activated, allowing for part of a planned system of impedance with matching volume controls, resulting in great sound quality in every zone.
- Two Sets of Electrical Safety Devices for Safeguarding the Stereo Amplifier have been Installed to Protect the Stereo Amplifier Against Shorting of Lines and/or Open Speaker Connectors
- Rated 70 Watts Continuous per Channel
- 10 Ohm Impedance
- Accepts 14 to 18 AWG Speaker Wire
- Push-pin Terminal Connections
If you are matching this to an existing installation, work from the PA-SS4 part number rather than the description.
-
Download
- PA-SS4 — User Manual
Specifications
Technical information
Physical characteristics
Specifications
| Brand Name | Vanco |
|---|---|
| Manufacturer Part Number | PA-SS4 |
| Product Type | Selector Box |
Technical information
| Impedance | 10Ohm |
|---|
Physical characteristics
| Depth | 114.30mm |
|---|---|
| Height | 45.72mm |
| Width | 215.90mm |
