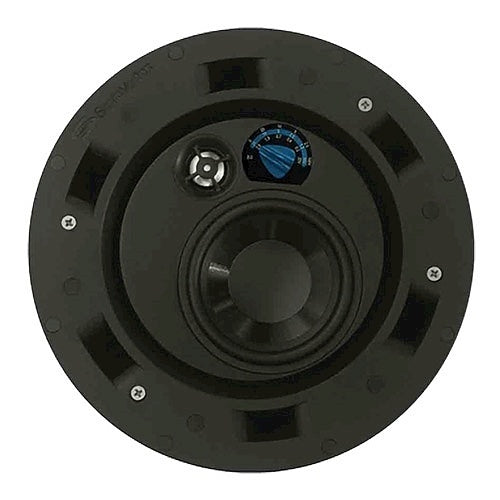

Vanco TU401 speaker, In-ceiling, In-wall
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Vanco TU401 is a speaker.
This page covers Vanco part TU401. Everything below is recorded against that exact part number rather than against the wider range it belongs to.
The figures held against it cover crossover type, impedance, sensitivity among others. Anything not listed we have not stated.
Ask us before you order if you need something confirmed. We will check it against the manufacturer's own documentation and tell you what it says.
Key features
- Crossover Type: 2-Way. This is the figure the record carries for this exact part number.
- Impedance: 8Ohm. Parts in the same family can differ here, so check the code rather than the family.
- Sensitivity: 90dB. It is listed for this part number, not for the range as a whole.
- Wireless Speaker: Not present on this part number. Where a related part in the same range carries it, that does not carry across to this one. Where your specification names a figure, compare it against this one before ordering.
- Maximum Frequency Response: 24kHz. Parts in the same family can differ here, so check the code rather than the family.
- Minimum Frequency Response: 62Hz. This is the figure the record carries for this exact part number.
- Number of Speakers: 1. Where your specification names a figure, compare it against this one before ordering.
- RoHS compliance: Recorded as compliant with the Restriction of Hazardous Substances rules, which limit specified hazardous materials in electrical equipment. It is listed for this part number, not for the range as a whole.
- WEEE compliance: Recorded as compliant with the Waste Electrical and Electronic Equipment rules, which govern how the product is taken back and recycled at end of life. This is the figure the record carries for this exact part number.
- Sound Emission: 9dB. Parts in the same family can differ here, so check the code rather than the family.
- Colour: White. It is listed for this part number, not for the range as a whole.
- Depth: 70.20mm. Where your specification names a figure, compare it against this one before ordering.
- Enclosure Type: Transmission Line. Parts in the same family can differ here, so check the code rather than the family.
- Form Factor: In-ceiling, In-wall. This is the figure the record carries for this exact part number.
Use cases
Specify this part where the speaker role is already decided and the figures listed above are the ones that have to be met. The points below are the placement-relevant entries from the same record.
- Where it goes: Recorded for indoor use.
- Mounting: Recorded as in-ceiling mount, in-wall mount.
If you are matching this to an existing installation, work from the TU401 part number rather than the description.
Specifications
Technical information
Audio
Certifications
Environmental conditions
Physical characteristics
Product information
Miscellaneous
Attributes
Specifications
| Brand Name | Vanco |
|---|---|
| Manufacturer Part Number | TU401 |
| Product Type | Speaker |
Technical information
| Crossover Type | 2-Way |
|---|---|
| Impedance | 8Ohm |
| Sensitivity | 90dB |
| Wireless Speaker | No |
Audio
| Maximum Frequency Response | 24kHz |
|---|---|
| Minimum Frequency Response | 62Hz |
| Number of Speakers | 1 |
| RMS Output Power | 5W |
Certifications
| RoHS compliance | Compliant |
|---|---|
| WEEE compliance | Compliant |
Environmental conditions
| Sound Emission | 9dB |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Depth | 70.20mm |
| Enclosure Type | Transmission Line |
| Form Factor | In-ceiling, In-wall |
| Material | Ribbed Injected PP |
Product information
| Diameter | 241.00mm |
|---|---|
| Mount Type | In-ceiling Mount, In-wall Mount |
Miscellaneous
| Indoor or outdoor use | Indoor |
|---|
Attributes
| RMS Output Power | 5W |
|---|
