Vanco EVEXHDB1 video extender receiver, 4096 x 2160
About this product
Please note: this is a non-returnable item (excluding faulty goods)

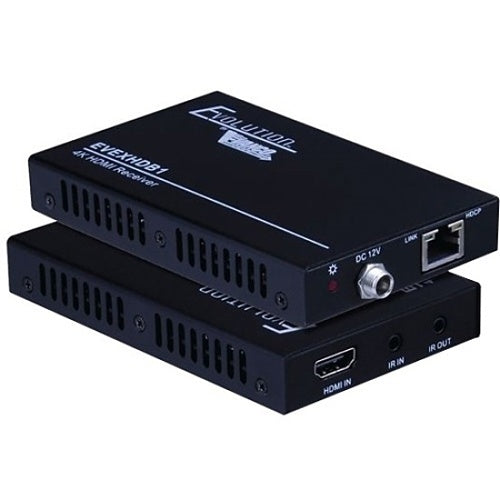

Vanco EVEXHDB1 is a video extender receiver.
Discover the power of seamless connectivity with the Vanco EVEXHDB1 Evolution HDBaseT Extender. This cutting-edge device leverages HDBaseT technology to distribute uncompressed high-definition signals efficiently over distances more than double that of standard HDMI cables. It supports full HD video and audio transmission through a single 230ft/70m Cat5e/Cat6 cable.
Additionally, it features Power over Cable (PoC) technology, allowing for flexible installations without the need for a separate power supply. Enjoy extended 1080p resolutions up to 230ft and 4K@60Hz up to 131ft. It also includes bi-directional IR control, high bandwidth capacity of 10.2Gbps, and is HDCP 2.2 compliant.
With its slim and compact design, it's perfect for both home and commercial use.
Key features
- Features HDBaseT Technology- optimized for whole-home or commercial distribution of uncompressed high-definition signals at more than twice the distance of standard HDMI cables without degradation
- HDBaseT Extender can connect uncompressed full HD digital video and audio through a single 230ft/70m Cat5e/Cat6 cable
- Features Power over Cable (PoC) Technology which transmits power over Cat5e/6- allowing for either Transmitter or Receiver to be powered without the use of a power supply. The result is an easy and flexible installation with low maintenance
- Transmission Range: Extends 1080p resolutions up to 230ft (70m) over a single Cat5e/6 cable and 4K@60Hz- 4:2:0 color subsampling up to 131ft (40m)
- Bi-directional IR control
- High Bandwidth: 10.2Gp
- HDCP 2.2 compliant
- CEC Support
- Slim and compact design
Specifications
Technical information
Display & graphics
Interfaces/ports
Physical characteristics
Video
Miscellaneous
Attributes
Specifications
| Brand Name | Vanco |
|---|---|
| Manufacturer Part Number | EVEXHDB1 |
| Product Type | Video Extender Receiver |
Technical information
| Cable Type | Category 6 |
|---|---|
| Connectivity Technology | Wired |
| Maximum Operating Distance | 70m |
| Media Type Supported | Twisted Pair |
| Number of Input Devices Supported | 1 |
| Number of Output Devices Supported | 1 |
Display & graphics
| Maximum video resolution | 4096 x 2160 |
|---|
Interfaces/ports
| Network (RJ-45) | Yes |
|---|---|
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 1 |
| Number of Network (RJ-45) Ports | 2 |
Physical characteristics
| Depth | 119.38mm |
|---|---|
| Height | 22.86mm |
| Width | 60.96mm |
Video
| Graphics Mode | 4K UHD |
|---|
Miscellaneous
| Package Contents | EVEXHDB1 (TX & RX) (1) IR Blaster (TX) (1) IR Receiver (RX) (1) DC 12V in line power supply Mounting Hardware Product Manual |
|---|
Attributes
| Package Contents | EVEXHDB1 (TX & RX) (1) IR Blaster (TX) (1) IR Receiver (RX) (1) DC 12V in line power supply Mounting Hardware Product Manual |
|---|
