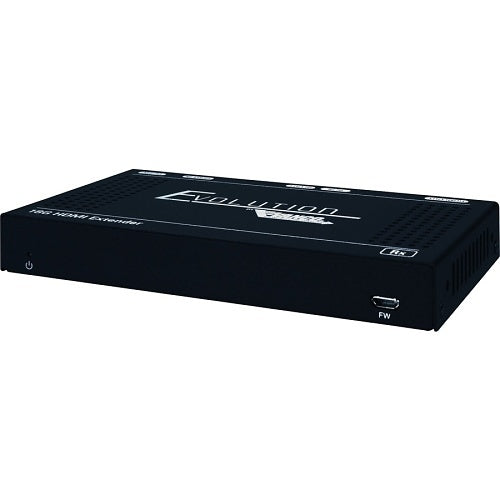

Vanco EVRXHD2 video extender receiver, 4096 x 2160
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Vanco EVRXHD2 is a video extender receiver from the EVRXHD2 range.
Discover the power of seamless connectivity with the Vanco EVRXHD2 Evolution 4K HDR HDBaseT Receiver. This cutting-edge device supports HDMI resolutions up to 4K at 60Hz, featuring 4:4:4 chroma sampling and HDR for unparalleled visual clarity. Extend your 4K HDR10 signals up to 131ft/40m and 1080p up to 230ft/70m over a single Cat6 cable, ensuring flexible installation options.
With 18Gbps high bandwidth, experience ultra-fast data transmission. The receiver is equipped with Power over Cable (PoC) Technology for hassle-free setup, eliminating the need for additional power sources. Bi-directional IR pass-through allows for easy control of source and display units.
Compatible with various Evolution matrix units, it's the perfect choice for enhancing your audio-visual setup.
Key features
- Supports HDMI resolutions up to 4Kat 60Hz, 4:4:4 chroma sampling and HDR
- Extends 4Kat 60Hz 4:4:4, and HDR10 up to 131ft/40m and 1080p up to 230ft/70m over a single Cat6 cable
- 18Gbps high bandwidth
- Features Power over cable (POC) Technology, which provides power for the receivers resulting in easy installation
- Bi-directional IR pass-through for source and/or display control
- Compatible with the Evolution EVMX4X3, EVMX8X6, EVMX44PRO and EVMX88PRO matrix units
If you are matching this to an existing installation, work from the EVRXHD2 part number rather than the description.
-
Download
- EVRXHD2 — User Manual
Specifications
Technical information
Certifications
Display & graphics
Interfaces/ports
Physical characteristics
Video
Miscellaneous
Attributes
Specifications
| Brand Name | Vanco |
|---|---|
| Manufacturer Part Number | EVRXHD2 |
| Product Series | EVRXHD2 |
| Product Type | Video Extender Receiver |
Technical information
| Cable Type | Category 6 |
|---|---|
| Connectivity Technology | Wired |
| Maximum Operating Distance | 70m |
| Media Type Supported | Twisted Pair |
| Number of Output Devices Supported | 1 |
Certifications
| RoHS compliance | Compliant |
|---|---|
| WEEE compliance | Compliant |
Display & graphics
| Maximum video resolution | 4096 x 2160 |
|---|
Interfaces/ports
| HDMI | Yes |
|---|---|
| Network (RJ-45) | Yes |
| Number of HDMI Outputs | 1 |
| Number of Network (RJ-45) Ports | 1 |
| Number of USB Ports | 1 |
| USB Standard | USB 2.0 |
Physical characteristics
| Depth | 83.82mm |
|---|---|
| Height | 20.32mm |
| Weight | 272.15g |
| Width | 139.70mm |
Video
| Graphics Mode | 4K UHD |
|---|
Miscellaneous
| Package Contents | EVRXHD2 Receiver 2 Mounting ears with hardware 4 Plastic feet Product Manual |
|---|
Attributes
| Package Contents | EVRXHD2 Receiver 2 Mounting ears with hardware 4 Plastic feet Product Manual |
|---|---|
| Weight | 272.15g |
Vanco EVRXHD2 video extender receiver, 4096 x 2160
