Vanco EVOIPTX1 video extender transmitter, 3840 x 2160
About this product
Please note: this is a non-returnable item (excluding faulty goods)

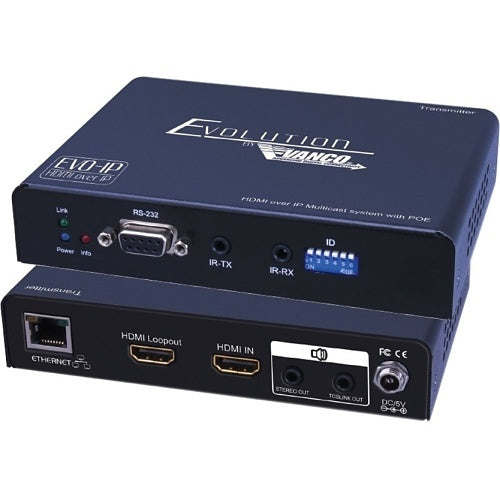

Vanco EVOIPTX1 is a video extender transmitter.
Discover the power of seamless connectivity with the Vanco EVOIPTX1 Evolution EVO-IP Transmitter. This cutting-edge device supports 4K at 60Hz with 4:4:4 chroma, ensuring top-notch video quality. It's compatible with HDR10 and Dolby Vision, enhancing your viewing experience with vivid colors and deeper blacks.
The system can handle over 1000 transmitters and receivers, making it ideal for large-scale operations. Audio support includes Dolby, DTS, and PCM formats. For ease of installation, it features POE capabilities, a manual dip switch for IP-less setup, and an intuitive GUI that detects new devices automatically.
Customize labels and manage setups remotely, even without a computer on-site.
Key features
- Supports 4Kat 60Hz, 4:4:4 chroma
- System can support over 1000 transmitters and receivers
- HDR10 and Dolby Vision compatible
- Dolby/DTS/PCM audio formats supported
- HDCP 2.2/1.4
- POE or can be powered using provided power supply
- Manual dip switch configurable for a truly IP-Less installation
- Easy GUI automatically detects new devices in the system
- Customizable labels and names of sources and displays
- Setup through the GUI can be done without a computer even being on site
Specifications
General information
Technical information
Certifications
Display & graphics
Interfaces/ports
Physical characteristics
Product information
Video
Miscellaneous
Attributes
Specifications
| Brand Name | Vanco |
|---|---|
| Manufacturer Part Number | EVOIPTX1 |
| Product Type | Video Extender Transmitter |
General information
| Packaged Quantity | 6 |
|---|
Technical information
| Cable Type | Category 6 |
|---|---|
| Connectivity Technology | Wired |
| Maximum Operating Distance | 100m |
| Media Type Supported | Twisted Pair |
| Number of Input Devices Supported | 1 |
Certifications
| RoHS compliance | Compliant |
|---|---|
| WEEE compliance | Compliant |
Display & graphics
| Maximum video resolution | 3840 x 2160 |
|---|
Interfaces/ports
| Network (RJ-45) | Yes |
|---|---|
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 1 |
| Number of Network (RJ-45) Ports | 1 |
| Serial Port | Yes |
Physical characteristics
| Form Factor | Wall Mount |
|---|
Product information
| Mount Type | Wall Mount |
|---|
Video
| Graphics Mode | 4K UHD |
|---|
Miscellaneous
| Package Contents | 5V Power Supply (optional, can be used as a redundant power with use of a POE switch) Set of mounting ears/screws Product Manual , EVOIPTX1, EVOIPRX1, OR EVOIPCTL1 unit (each sold separately) IR Transmitter (with EVOIPTX1 and EVOIPRX1) IR Receiver (with EVOIPTX1 and EVOIPRX1) |
|---|
Attributes
| Package Contents | 5V Power Supply (optional, can be used as a redundant power with use of a POE switch) Set of mounting ears/screws Product Manual , EVOIPTX1, EVOIPRX1, OR EVOIPCTL1 unit (each sold separately) IR Transmitter (with EVOIPTX1 and EVOIPRX1) IR Receiver (with EVOIPTX1 and EVOIPRX1) |
|---|
