Verint V3820FDW-DN IP dome camera, 2MP
About this product
Please note: this is a non-returnable item (excluding faulty goods)

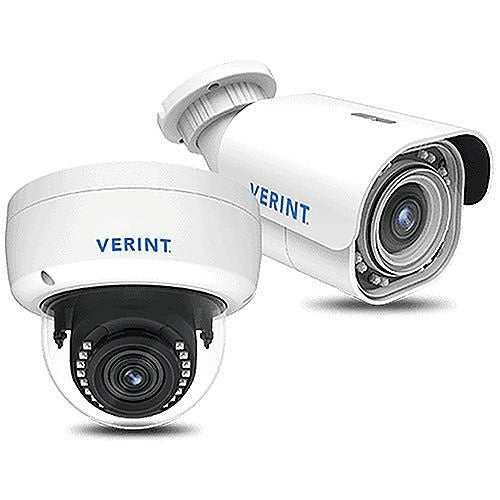

Verint V3820FDW-DN is an IP dome camera.
The Verint V3820FDW network dome camera can be used for indoor and outdoor installations. Featuring a high quality 2MP sensor with a maximum resolution of 1920x1080 at 30 fps. The V3820FDW is a powerful camera with clear sharp images and great features including Wide Dynamic Range (WDR), Remote Focus and Zoom and a built-in MicroSD slot for onboard storage.
For protection against harsh outdoor environments, the camera isencased in a weather-proof IP67-rated housing, making it impervious to rain and dust. Also with its IK10 rating, the camera is vandal resistant and can withstand 20 Joules of impact. Most importantly the V3820FDW is fully integrated into our Verint EdgeVR platform making it easy to adjust and maintain over its life.
The camera also features easy installation with Auto Camera Config, Remote Password and Firmware Update, HTTPS support for secure connections, integrated camera image adjustment and more.
Key features
- 2MP(1920x1080) at 30 fps resolution
- H.264 compression reducing bandwidth and storage needs
- Built-in megapixel motorized lens for remote zoom and focus
- Built-in IR illumination, effective up to 30 meters
- True WDR for better visibility
- Micro SDHC/SDXC memory slot
- IP67/IK08 rated protection
- DC12V and PoE power input
-
Download
- V3820FDW-DN — Product Manual
Specifications
Technical information
Camera
Certifications
Display & graphics
Environmental conditions
Exposure
Interfaces/ports
Lens
Network & communication
Physical characteristics
Power description
Product information
Miscellaneous
Attributes
Specifications
| Brand Name | Verint |
|---|---|
| Manufacturer Part Number | V3820FDW-DN |
| Product Type | Dome Camera |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Effective resolution | 2MP |
| Field of View | Horizontal, Vertical |
| Lens Type | Motorized Zoom |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 2.70mm |
| Night Vision | Yes |
| Night Vision Type | Infrared (IR) |
| Optical Zoom | 5.0x |
| Video Formats | H.264 / AVC, H.265 / HEVC, MJPEG |
| Wide Dynamic Range | Yes |
Camera
| Night Vision Distance | 30.00m |
|---|
Certifications
| Ingress protection | IP67 |
|---|
Display & graphics
| Maximum video resolution | 1920 x 1080 |
|---|
Environmental conditions
| Maximum Operating Temperature | 55°C |
|---|---|
| Minimum Operating Temperature | -30°C |
| Operating Humidity | 90% |
Exposure
| Longest Shutter Speed | 1 Second |
|---|---|
| Minimum Illumination | 0.0060lux |
| Shortest Shutter Speed | 1 Second |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|
Lens
| Focal Length | 1.4-2.8mm |
|---|---|
| Lens Included | Yes |
| Maximum Focal Length | 13.50mm |
| Minimum Aperture | f/1.4 |
Network & communication
| Remote Management | Yes |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Durability | Impact Resistant |
| Form Factor | Dome |
| Height | 112.00mm |
Power description
| Input Voltage | 12V DC |
|---|
Product information
| Diameter | 135.00mm |
|---|---|
| Mount Type | Surface Mount, Wall Mount |
Miscellaneous
| Impact protection | IK10 |
|---|
Attributes
| Indoor or outdoor use | Indoor, Outdoor |
|---|---|
| Input Voltage | 12V DC |
