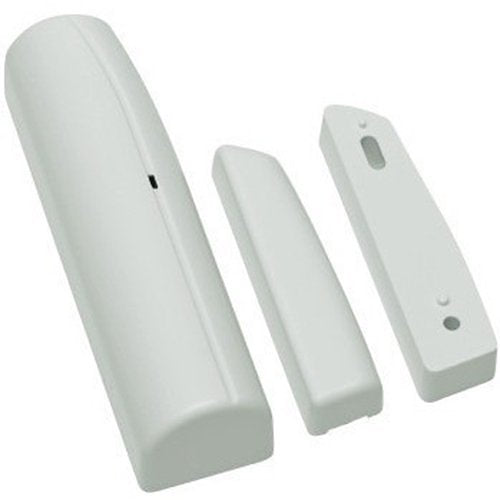

Videofied IDC200 magnetic contact, White
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Videofied IDC200 is a magnetic contact.
The Door Contact Models IDC 200/601/701 is a battery operated, wireless door contact designed for use in Videofied security systems. Door contacts are intended for use in detecting the opening and closing of doors, windows, or cabinet doors/drawers. The IDC 200/601/701 consist of a switch detector with S2View spread spectrum, Videofied, interactive, encrypted wireless circuitry for secure two-way communications with the control panel.
A dual tamper function provides detection for both wall and cover tamper. The transmitter is typically installed on the stationary surface of an opening (door frame or window frame), while the magnet is installed on the door or window. With the door or window closed, the magnetic field forces a reed switch inside the detector to close, creating a secured condition.
When the alarm system is armed and the door or window is opened, the detector transmits an open signal. The control panel receives this signal and responds according to system configuration/programming. The detector is powered by one lithium battery that can last up to four years, depending on the amount of detector activity.
The detector transmits a check-in signal every eight minutes that includes its unique identification code along with the current alarm state, tamper conditions, serial number, date of manufacture, software version and battery status.
Key features
- Supervised - transmits a check-in/status signal every 8 minutes indicating open/closed state, tamper conditions, serial number, date of manufacture, software revision and battery status.
If you are matching this to an existing installation, work from the IDC200 part number rather than the description.
Specifications
Technical information
Physical characteristics
Power description
Product information
Attributes
Specifications
| Brand Name | Videofied |
|---|---|
| Manufacturer Part Number | IDC200 |
| Product Type | Magnetic Contact |
Technical information
| Connectivity Technology | Wireless |
|---|
Physical characteristics
| Colour | White |
|---|---|
| Depth | 21.80mm |
| Material | ABS |
| Weight | 38.00g |
| Width | 25.40mm |
Power description
| Input Voltage | 3V DC |
|---|---|
| Power Source | Battery |
Product information
| Length | 94.00mm |
|---|
Attributes
| Input Voltage | 3V DC |
|---|---|
| Power Source | Battery |
| Weight | 38.00g |
