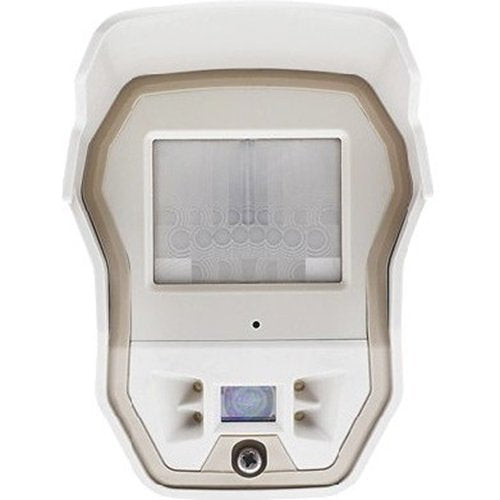

Videofied OMVC200 motion sensor, Silver

Please note: this is a non-returnable item (excluding faulty goods)

Videofied OMVC200 is a motion sensor from the OMV range.

The OMVC outdoor MotionViewer is a wireless, battery operated camera. The camera is triggered by motion detection or wired input activation. It is designed for use in a Videofied® security system.

Motion-activated cameras are intended for outdoor applications where video-verification is needed. The OMVC consists of a digital camera, passive infrared motion detector, and a spread spectrum S2View® radio module. S2View® is a proprietary Videofied® interactive, encrypted wireless circuitry for secure two way communication with the control panel.

The camera consists of a CMOS sensor and a 90° wide angle lens. Four infrared LEDs provide a night illumination distance of up to 12 meters. A Fresnel lens ensures passive infrared motion detection.

The detection pattern is a curtain of 1m width and an optimal detection distance of 12 meters from the MotionViewer. A mounting kit must be used with the OMV in order to ensure optimal orientation and tilt. A built-in tilt sensor triggers a tamper alarm in case of unauthorized manipulation or change of its orientation.

Install the OMVC MotionViewer to protect outdoor installations where weather protection and perimeter protection is necessary. When the alarm system is armed and the infrared lens detects a movement, the OMVC transmits a signal and activates the camera, which captures a 10 second video segment (by default). The alarm panel receives the signal and responds according to system configuration and programming.

The alarm and its associated video are transmitted through the alarm panel to the security server, managed by a monitoring center or a smartphone app. The OMVC is powered by four lithium batteries for a typical battery life of 4 years or more, depending on the activity of the detector. Every detector transmits a check-in signal every 8 minutes to the alarm panel in order to supervise its status.

Key features

• Wiselink Spread Spectrum, Videofied, Interactive, AES Encrypted wireless technology provides optimum signal integrity and security.
• Camera: CMOS sensor with 90° wide angle lens. Resolution 320 x 240 pixels.
• Supervised: Transmits a check-in/status signal to the panel every 8 minutes indicating the unique identification code along with the current detection sensor state, tamper condition, serial number, manufacture date, and software revision.
• Tamper: After setting the location of the device the tamper will alert on any movement of the device including opening of the cover or unscrewing from the mount.
• Lithium batteries: typical 4 years battery-life.
• Night illumination: up to 12 meters using four infrared LEDs.
• Motion detector—dual-element, passive infrared with Fresnel lens for up to 12m (29 ft for OMV 611) long, 90° coverage pattern (by default).
• The camera captures a video segment less than 100 milliseconds after motion detection.
• Device is fully weatherproof and can withstand temperatures from -25° to 70°C.

If you are matching this to an existing installation, work from the OMVC200 part number rather than the description.
