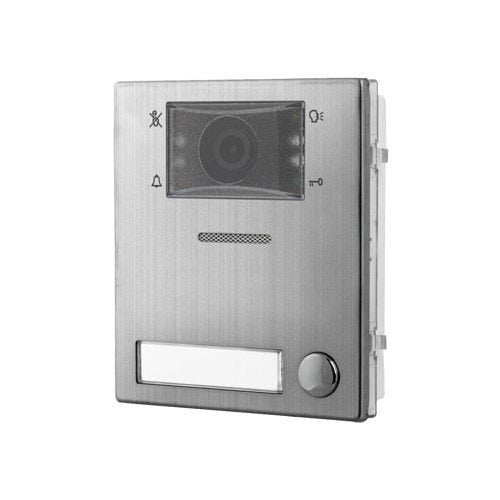

Videx 4384X-1/M amplifier camera module, Blue

Free Delivery
£ 619 99
(Incl. VAT) RRP: £743.99
Save £124.00

About this product

Videx 4384X-1/M is an amplifier camera module from the 4001 range.

4000 Series speaker / camera module, 4384X, is a combined functional speech amplifier and camera for the VX2300 digital system. The module is available with either 0, 1 or 2-button and has blue backlit name plate windows. It also includes a built-in proximity reader located behind button 1 name plate window.

The total fob / card user capacity for this module is up to 50 user fobs / cards, however can be increased up to 1000 users via the 2X00PC software. The modules are equipped with a CMOS colour camera with an auto iris lens, complete with 4 bright white illumination LEDs. The camera also has a 10° vertical and horizontal adjustment and contains a heating element to prevent the lexan window from misting up.

The modules also have call reassurance tones and 4 call progress LEDs to advise the user when the system is busy, a call is in progress, when to speak and when the door is open. All modules contain a speaker and fly lead with microphone which easily fits into a 4000 series frame. Modules attach to the housing frames using a simple but strong clip in systemSpeech levels can be adjusted using separate adjustments for both the speaker and microphone.

Key features

  • CMOS colour camera with auto iris lens & white light LED illumination
  • 10° tilt angle adjustment (horizontal and vertical)
  • Wide angle camera option available with a 170° viewing angle (suffix /W)
  • Internal anti-mist resistor
  • Contains speaker and fly lead microphone (microphone easily fits within a 4000 series frame)
  • Speech volume adjustment (both directions)
  • Blue backlit name plate windows
  • Built-in proximity reader 4384X
  • Total proximity fob/card user capacity dependent on model (refer to technical details)
  • Compatible with the entire 4000 series surface and flush back box range

If you are matching this to an existing installation, work from the 4384X-1/M part number rather than the description.

£ 619 99
RRP: £743.99 Save £124.00
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£619.99 Incl. VAT £743.99
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand Name
Videx
Manufacturer Part Number
4384X-1/M
Product Series
4001
Product Type
Audio/Video Module
Physical characteristics
Colour
Blue
Depth
36.00mm
Width
103.00mm

Specifications

Brand Name Videx
Manufacturer Part Number 4384X-1/M
Product Series 4001
Product Type Audio/Video Module

Physical characteristics

Colour Blue
Depth 36.00mm
Width 103.00mm

Videx 4384X-1/M amplifier camera module

Videx 4384X-1/M amplifier camera module, Blue

Who this is for

For the installer — this is the amplifier camera module supplied under Videx part number 4384X-1/M. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is an amplifier camera module made by Videx. The part number 4384X-1/M is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this amplifier camera module is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is returnable under our standard returns terms. Faulty goods are handled separately and are never affected by a returns restriction.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact amplifier camera module I have been quoted? Check the manufacturer part number 4384X-1/M against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — the documentation attached to this listing was checked and names this exact part number. Documents that named only the family, or a different item, are not attached.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against 4384X-1/M answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.

Videx 4384X-1/M amplifier camera module
Videx

Videx 4384X-1/M amplifier camera module, Blue

£619.99 £743.99

Videx 4384X-1/M is an amplifier camera module from the 4001 range.

4000 Series speaker / camera module, 4384X, is a combined functional speech amplifier and camera for the VX2300 digital system. The module is available with either 0, 1 or 2-button and has blue backlit name plate windows. It also includes a built-in proximity reader located behind button 1 name plate window.

The total fob / card user capacity for this module is up to 50 user fobs / cards, however can be increased up to 1000 users via the 2X00PC software. The modules are equipped with a CMOS colour camera with an auto iris lens, complete with 4 bright white illumination LEDs. The camera also has a 10° vertical and horizontal adjustment and contains a heating element to prevent the lexan window from misting up.

The modules also have call reassurance tones and 4 call progress LEDs to advise the user when the system is busy, a call is in progress, when to speak and when the door is open. All modules contain a speaker and fly lead with microphone which easily fits into a 4000 series frame. Modules attach to the housing frames using a simple but strong clip in systemSpeech levels can be adjusted using separate adjustments for both the speaker and microphone.
