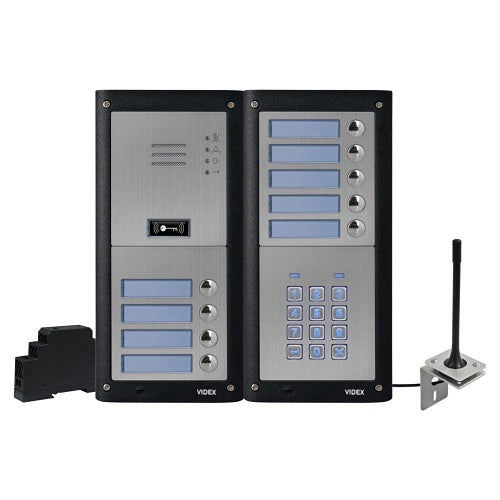

Videx GSM4KCR-9S/4G audio kit, Surface Mount
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Videx GSM4KCR-9S/4G is an audio kit from the 4000 range.
The latest 4G GSM audiokits with coded keypad are manufactured in the familiar modular 4000 series range with a 316 grade stainless steel matt finish. They are available from single call button applications up to 12 button kits (surface or flush), however is expandable up to 50 call buttons, all with the facility to divert to additional numbers if the first is busy or unanswered (up to 3 divert numbers per button). The 4G GSM intercom module is able to connect to 2G, 3G and 4G networks and is designed for global use.
The 4G GSM audiokits have all the original features of the previous GSM PRO series kits, however they now include new programming features. In addition to the existing 1000 dial to open numbers (with access levels) it can store up to 32 temporary dial to open numbers that are programmable from 1-255 hours. It also includes an automatic time correction feature (for when the 4G GSM is used in different time zones) and daylight saving time adjustments.
When the 4G GSM module is networked with the Art.4903 keypad it can be programmed remotely with up to 400 permanent access codes and 32 temporary codes (between 1-255 hrs after which time will automatically be deleted). When the keypad is not networked with the 4G GSM module and configured in standalone mode it will operate as a standard Videx keypad with 2 codes (1 code per relay). Programming can also be carried out using the GSMSK PC software either connected via the micro USB port or RS485 bus or remotely via the new "over the air" feature (programming is still carried out using the PC software however the 4G GSM module is not physically connected to a PC directly by the micro USB port or RS485 bus).
Key features
- Compatible with 2G, 3G and 4G networks
- 1-Button up to 12 button kits available (surface or flush)
- Expandable up to 50 call buttons using a combination of additional 4000 series button modules and surface or flush back boxes
- DDA Compliant voice annunciation and call progress LED's
- 4-Telephone numbers per call button (1 primary and 3 diverts)
- 1000 Dial to open numbers (which can each be assigned with an access level)
- 32 Temporary dial to open numbers (programmable from 1-255 hours)
- 1000 User integrated proximity access
- 1 Programmable call button timeband
- Up to 10 programmable access control timebands
If you are matching this to an existing installation, work from the GSM4KCR-9S/4G part number rather than the description.
Specifications
Technical information
Certifications
Power description
Product information
Miscellaneous
Attributes
Specifications
| Brand Name | Videx |
|---|---|
| Manufacturer Part Number | GSM4KCR-9S/4G |
| Product Series | 4000 |
| Product Type | Audio Kits |
Technical information
| Connectivity Technology | Wired, Wireless |
|---|
Certifications
| RoHS compliance | Out of Scope |
|---|---|
| WEEE compliance | Out of Scope |
Power description
| Input Voltage | 12-14V DC |
|---|
Product information
| Mount Type | Surface Mount |
|---|
Miscellaneous
| Package Contents | 125A power supply\434 GSM antenna (including L bracket and appropriate fixings) , 4000 series front support frame in a gun metal grey finish Appropriate GSM module (4810-0/4G 4810-1/4G or 4810-2/4G) Appropriate button modules (4043 4044 4045etc) HDR-15-12 slim line 12V dc |
|---|
Attributes
| Input Voltage | 12-14V DC |
|---|---|
| Package Contents | 125A power supply\434 GSM antenna (including L bracket and appropriate fixings) , 4000 series front support frame in a gun metal grey finish Appropriate GSM module (4810-0/4G 4810-1/4G or 4810-2/4G) Appropriate button modules (4043 4044 4045etc) HDR-15-12 slim line 12V dc |
