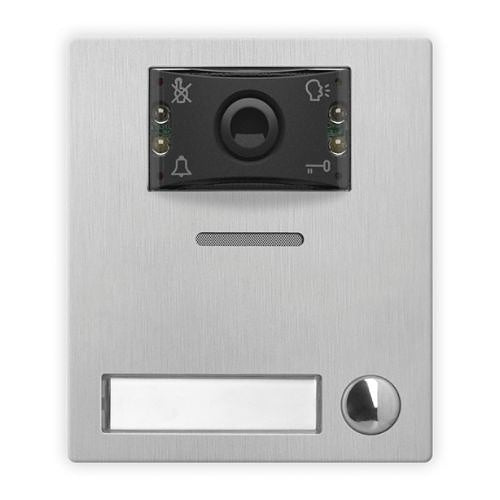

Videx 4534X-1/M camera speaker module, IP65
About this product
Videx 4534X-1/M is a camera speaker module.
4000 Series speaker / camera module, 4534X, is a combined speech amplifier and camera for the Videx IP system. The module is available with either 0, 1 or 2 buttons (however when connected to 4000 series button expansion modules via the IDC connector can have up to 42 buttons on the system) and have blue backlit name plate windows. It also includes a built-in proximity reader located behind button 1 name plate window.
The total fob/card user capacity for this module is up to 10,000 user fobs / cards (programmable via the IP Wizard) The modules are equipped with a CMOS wide angle colour camera with a vertical viewing angle of 80° and a horizontal viewing angle of 170°, complete with 4 bright white illumination LEDs. It supports H.264 video codec and supports 1280x720, 640x480, 352x288 (CIF) and 320x240 resolutions and has SIP 2.0 compatibility. The modules also have 4 DDA-compliant call progress LEDs to advise the user when the system is busy, a call is in progress, when to speak and when the door is open and includes voice annunciation and acoustic signals.
Other programmable settings such as speech volume levels, door relay time, conversation time can be adjusted and setup via the IP Wizard. The modules can be powered directly with 12V DC or via PoE. All modules contain a speaker and fly lead with microphone which easily fits into a 4000 series frame.
Modules attach to the housing frames using a simple but strong clip in system. All the modules are available in a matt 316 marine grade stainless steel finish (suffix /M) or gun metal grey (suffix /BL)
Key features
- Blue backlit name plate windows
- Wide angle CMOS colour camera with white light LED illumination
- DDA Compliant call progress LED's, voice annunciation and acoustic signals
- Compatible with the full range of 4000 series surface and flush back boxes
- Matt 316 marine grade stainless steel (/M) or gun metal grey (/BL) front plate finishes available
- Contains speaker and fly lead microphone (microphone easily fits within a 4000 series frame)
- Built-in proximity access reader for up to 10,000 user fobs / cards (programmable via PC based IP Wizard)
- H.254 Video codec
- Supported resolutions 1280x720, 640x480, 352x288 (CIF) and 320x240
If you are matching this to an existing installation, work from the 4534X-1/M part number rather than the description.
-
Download
- 4534X-1/M — Product Manual
Specifications
Certifications
Physical characteristics
Power description
Miscellaneous
Attributes
Specifications
| Brand Name | Videx |
|---|---|
| Manufacturer Part Number | 4534X-1/M |
Certifications
| Ingress protection | IP65 |
|---|
Physical characteristics
| Colour | Blue |
|---|---|
| Width | 103.00mm |
Power description
| Input Voltage | 12V DC |
|---|
Miscellaneous
| Compatibility | Phones, RTSP, SIP 2.0, VOIP switchboards |
|---|
Attributes
| Compatibility | Phones, RTSP, SIP 2.0, VOIP switchboards |
|---|---|
| Input Voltage | 12V DC |
