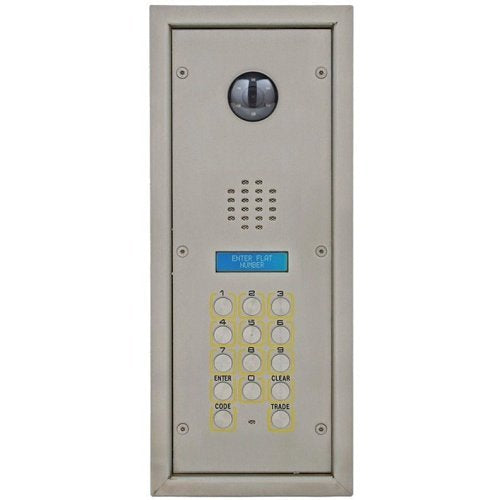

Videx SP301-1C/SPECIAL colour video panel, 75"
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Videx SP301-1C/SPECIAL is a colour video panel from the SP301 range.
The SP301 series colour video door entry panels are mainly used on larger systems with more than 20 apartments or offices. Featuring a standard numeric keypad, a caller simply enters the apartment number to call. Both audible and visual instructions are provided throughout the call via the back-lit LCD display and spoken messages through the speaker.
Systems with up to 998 apartments, up to 10 main entrances, and 15 blocks each with 10 entrances can easily be created using a BUS cabling system. The numeric keypad includes numbering with yellow contrast rings on each button for the visually impaired. The keypad can be further expanded with alpha keys from A to L if required, or scroll buttons for name searching.
The 12 gauge stainless steel panels come with a flush stainless steel bezel backbox as standard. An optional surface box with rainshield is also available. Panels include a 998 coded access feature allowing each tenant a unique 4-6 digit code.
Optionally, a proximity reader cut-out (VRPH) or proximity reader (VRVP, VRPP or VRMI) can be added to the digital panel, as can an induction coil (VRIND) along with other options. Additionally, the digital panel includes a colour CCD wide-angle day/night camera with IR illumination LEDs that provide the best quality picture in any lighting condition, with a viewing angle of 170°. The camera can be set to work with either composite video (coax) or balanced video (non-coax twisted pair) and is protected behind a strengthened polycarbonate window.
Key features
- 12 Gauge stainless steel
- Back-lit LCD Display
- Voice annunciation call progress
- Tactile Keypad with Yellow Contrast
- Up to 998 apartments
- BUS cabling system
- Serial RS232 jack plug connection for PC programming
- Colour CCD wide angle day/night camera with IR illumination (170° viewing angle)
Specifications
General information
Technical information
Display & graphics
Physical characteristics
Product information
Miscellaneous
Attributes
Specifications
| Brand Name | Videx |
|---|---|
| Manufacturer Part Number | SP301-1C/SPECIAL |
| Product Series | SP301 |
| Product Type | Video Door Phone Sub Station |
General information
| Application/Usage | Apartment, Door Entry, Office |
|---|
Technical information
| Wiring Type | 6-Wire |
|---|
Display & graphics
| Screen Size | 75" |
|---|
Physical characteristics
| Colour | Silver |
|---|
Product information
| Display Screen Type | LCD (Liquid Crystal Display) |
|---|
Miscellaneous
| Compatibility | Videx VX2200 Digital System |
|---|
Attributes
| Compatibility | Videx VX2200 Digital System |
|---|
