Videx ERAKIT23B6789 door entry kit, 7"

Visit Door Entry & Intercom Systems
Free Delivery
£ 867 22
(Incl. VAT) RRP: £1,040.66
Save £173.44

About this product

Please note: this is a non-returnable item (excluding faulty goods)

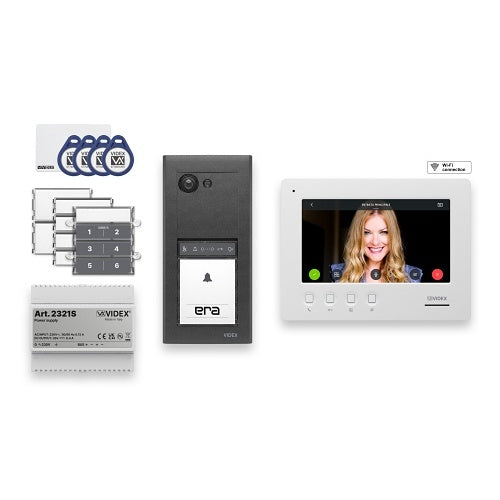

Videx ERAKIT23B6789 is a door entry kit.

The ERA series 2 wire colour videokit has been designed to work with the popular VX2300 2 wire BUS system. It includes the surface mount ERA23VB video entry panel with a built-in high quality CMOS (976×582 pixel) colour camera with a 65° vertical and 90° horizontal viewing angle and bright white illumination LED and is available in the popular gun metal grey finish.It also incorporates DDA compliant call progress LEDs (system busy, call in progress, speak and door open), voice assistance and acoustic signals for the visually impaired. Other notable features include integrated Mifare/NFC proximity access, a 6 button coded access feature and call button configuration facility (1 button call, 2 button call, 4 button call or 1 button call with 6 button coded access).It can also be expanded up to 8 entrances with up to 4 videophones or video monitors per apartment.

The videokit can be configured with either 1, 2 or 4 call buttons or 1 button + 6 button coded access.The videokit also includes a 6789 surface mount handsfree video monitor with 7″ hi-res full colour capacitive touch screen with OSD menus, 2321S 2 wire BUS power supply and 1x955MF/C Mifare master proximity card and 4x955MF/T Mifare proximity cards and includes the nameplate kits for the desired call button configuration facility.

Key features

  • Common 2 wire BUS that uses two non-polarity twisted pair wires allowing for simplified installation
  • Expandable up to 8 entrances (using 2301, 2-4 entrance units) with up to 4 videophones per apartment
  • Incorporates a CMOS 976x582 (PAL) colour camera with 65° vertical and 90° horizontal viewing angles and white illumination LED
  • DDA compliant call progress LEDs, voice assistance and acoustic signals for the visually impaired
  • Integrated Mifare/NFC proximity reader able to read Mifare fobs/cards (ISO IEC 14443A)
  • Program up to 2000 proximity fobs/cards
  • Call button configuration for 1 button, 2 button, 4 button or 1 button + 6 button coded access
  • Program up to 400 access codes (using 1 - 6 digits only)
  • 1 push to exit input
  • 2 relay outputs with one output incorporating a capacitive discharge configuration option (12Vac/dc 1A max.)

If you are matching this to an existing installation, work from the ERAKIT23B6789 part number rather than the description.

£ 867 22
RRP: £1,040.66 Save £173.44
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£867.22 Incl. VAT £1,040.66
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Info about this product
Technical Details
Specifications
Brand Name
Videx
Manufacturer Part Number
ERAKIT23B6789
Technical information
Communication Mode
Full-duplex
Wiring Type
2-Wire Non-Polarized Twisted Pair
Camera
Image Sensor Type
CMOS
Display & graphics
Screen Size
7"
Physical characteristics
Colour
Grey
Depth
29.00mm
Height
200.00mm
Material
Metal, Plastic
Width
96.00mm
Power description
Input Voltage
32-35V DC
Product information
Display Screen Type
LCD (Liquid Crystal Display)
Attributes
Input Voltage
32-35V DC
Specifications
Technical information
Camera
Display & graphics
Physical characteristics
Power description
Product information
Attributes

Specifications

Brand Name Videx
Manufacturer Part Number ERAKIT23B6789

Technical information

Communication Mode Full-duplex
Wiring Type 2-Wire Non-Polarized Twisted Pair

Camera

Image Sensor Type CMOS

Display & graphics

Screen Size 7"

Physical characteristics

Colour Grey
Depth 29.00mm
Height 200.00mm
Material Metal, Plastic
Width 96.00mm

Power description

Input Voltage 32-35V DC

Product information

Display Screen Type LCD (Liquid Crystal Display)

Attributes

Input Voltage 32-35V DC

Videx ERAKIT23B6789 door entry kit

Videx ERAKIT23B6789 door entry kit, 7"

Who this is for

For the installer — this is the door entry kit supplied under Videx part number ERAKIT23B6789. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is a door entry kit made by Videx. The part number ERAKIT23B6789 is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this door entry kit is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact door entry kit I have been quoted? Check the manufacturer part number ERAKIT23B6789 against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — the documentation attached to this listing was checked and names this exact part number. Documents that named only the family, or a different item, are not attached.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against ERAKIT23B6789 answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.
