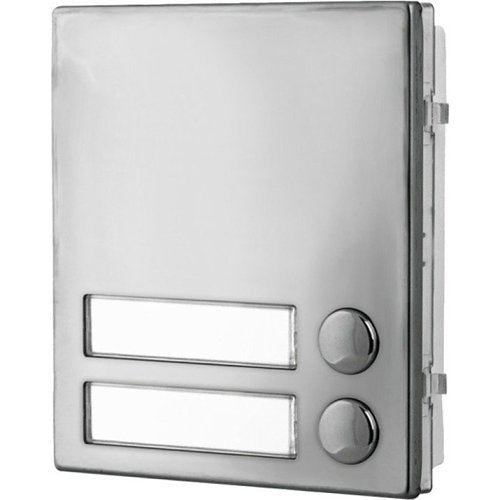

Videx 4842 door station button module, Modular

£ 37 04
(Incl. VAT)

About this product

Please note: this is a non-returnable item (excluding faulty goods)

Videx 4842 is a door station button module from the 4000 range.

4000 Series button expansion modules are used to achieve the required amount of call buttons for audio or audio/video door entry systems. Modules are available with 2, 3, 4 and 5 buttons. Double button modules are also available with 4, 6, 8 and 10 buttons, where 2 buttons share the same name plate window (add D after the number of the part code, e.g.

4844/BL becomes 4844D/BL with 8 buttons in a gun metal grey finish). There are two variations of button modules available depending on the 4000 series audio or audio/video system being installed. 4842 up to 4845 and 4842D up to 4845D for audio or audio/video 4000 series modules without the built-in IDC connector.

Each module has a terminal connection that houses 2 terminals for each button where the buttons, depending on jumper settings, can have a common terminal or each button can have its own common. 4042 up to 4045 and 4042D up to 4045D for audio/video 4000 series modules with the built-in IDC connector. Each module has a series of jumpers that when set in a specific position configures the buttons to work through the IDC connector.

These button modules also require CFL17 (supplied) and CFL45 IDC ribbon cables to link between modules. All the modules are available in a matt 316 marine grade stainless steel finish (suffix /M), mirror stainless steel finish (suffix /S) or gun metal grey (suffix /BL).

Key features

  • Robust tactile push buttons
  • Blue backlit name plate windows
  • 2, 3, 4, 5 button modules
  • 4, 6, 8, 10 double button modules (2 buttons share the name plate window)
  • Compatible with all 4000 series flush and surface back boxes

If you are matching this to an existing installation, work from the 4842 part number rather than the description.

£ 37 04
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£37.04 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Info about this product
Technical Details
Specifications
Brand Name
Videx
Manufacturer Part Number
4842
Product Series
4000
Product Type
Door Station Button Module
General information
Application/Usage
Door Entry
Technical information
Device Supported
Door Station
Certifications
Certifications & Standards
ISO 9001, UKAS
RoHS compliance
Out of Scope
WEEE compliance
Out of Scope
Physical characteristics
Colour
White
Depth
32.00mm
Form Factor
Modular
Height
120.00mm
Width
103.00mm
Power description
Power Source
AC Power, DC Power
Product information
Length
120.00mm
Miscellaneous
Compatibility
Compatible with the full range of 4000 series surface and flush back boxes
Attributes
Compatibility
Compatible with the full range of 4000 series surface and flush back boxes
Device Supported
Door Station
Package Contents
4000 Door Station Button Module; CFL17 Cable
Power Source
AC Power, DC Power
Specifications
General information
Technical information
Certifications
Physical characteristics
Power description
Product information
Miscellaneous
Attributes

Specifications

Brand Name Videx
Manufacturer Part Number 4842
Product Series 4000
Product Type Door Station Button Module

General information

Application/Usage Door Entry

Technical information

Device Supported Door Station

Certifications

Certifications & Standards ISO 9001, UKAS
RoHS compliance Out of Scope
WEEE compliance Out of Scope

Physical characteristics

Colour White
Depth 32.00mm
Form Factor Modular
Height 120.00mm
Width 103.00mm

Power description

Power Source AC Power, DC Power

Product information

Length 120.00mm

Miscellaneous

Compatibility Compatible with the full range of 4000 series surface and flush back boxes

Attributes

Compatibility Compatible with the full range of 4000 series surface and flush back boxes
Device Supported Door Station
Package Contents 4000 Door Station Button Module; CFL17 Cable
Power Source AC Power, DC Power

Videx 4842 door station button module

Videx 4842 door station button module, Modular

Who this is for

For the installer — this is the door station button module supplied under Videx part number 4842. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is a door station button module made by Videx. The part number 4842 is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this door station button module is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact door station button module I have been quoted? Check the manufacturer part number 4842 against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — the documentation attached to this listing was checked and names this exact part number. Documents that named only the family, or a different item, are not attached.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against 4842 answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.
