Videx VR4KAM-1NP intercom sub station, Silver
About this product
Please note: this is a non-returnable item (excluding faulty goods)

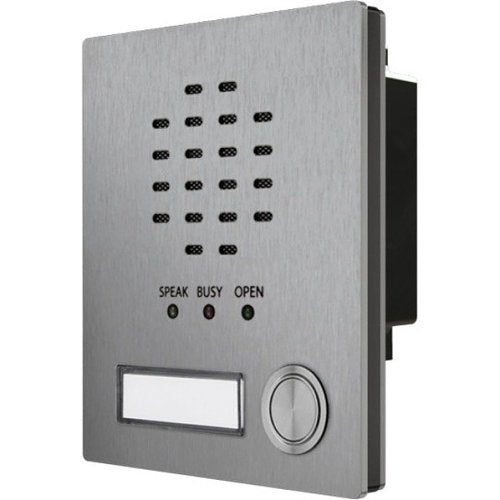

Videx VR4KAM-1NP is an intercom sub station from the VR4K range.
The introduction of the VR4K series represents the natural progression of the 4K series into vandal-resistant models. This has significantly expanded the applications and flexibility of this equipment range. The VR4K series speaker modules use the same die-cast frames as the 4K series but incorporate a 12-gauge stainless steel faceplate for the individual modules.
These are attached to the frames to form an extremely strong panel assembly for use in harsher environments. All door panel amplifier speakers and microphones are protected by offset stainless steel mesh, and all push buttons are IP68 rated. Optional DDA (Disability Discrimination Act) push buttons with yellow bezel can be specified on all VR4K series models.
Speaker modules are also available with nameplate windows (VR4KNP), featuring the same 12-gauge stainless steel fascia. The nameplate inserts can only be changed from inside the panel, maintaining the required vandal resistance. The windows are also moulded from polycarbonate to withstand attack.
Call progress LEDs for "Speak", "Open" and "Busy" are standard on all speaker modules within the range, along with distinct audible reassurance tones to assist the visitor.
Key features
- 12 Gauge stainless steel fascia
- IP68 rated buttons with optional yellow bezel
- Speak, Busy & Open call progress LEDs
- Call progress reassurance tones
- Dry contact lock output
- Timed call, speech and lock release
- Speaker and microphone adjustments
- Vandal resistant name plates (VR4KNP only)
If you are matching this to an existing installation, work from the VR4KAM-1NP part number rather than the description.
Specifications
General information
Technical information
Certifications
Physical characteristics
Power description
Attributes
Specifications
| Brand Name | Videx |
|---|---|
| Manufacturer Part Number | VR4KAM-1NP |
| Product Series | VR4K |
| Product Type | Intercom Sub Station |
General information
| Application/Usage | Door |
|---|
Technical information
| Number of Buttons | 1 |
|---|
Certifications
| RoHS compliance | Out of Scope |
|---|---|
| WEEE compliance | Out of Scope |
Physical characteristics
| Colour | Silver |
|---|
Power description
| Input Voltage | 24V AC, 24V DC |
|---|---|
| Power Source | AC Power |
Attributes
| Input Voltage | 24V AC, 24V DC |
|---|---|
| Power Source | AC Power |
