Videx VX8900 keypad access device, Silver
About this product
Please note: this is a non-returnable item (excluding faulty goods)

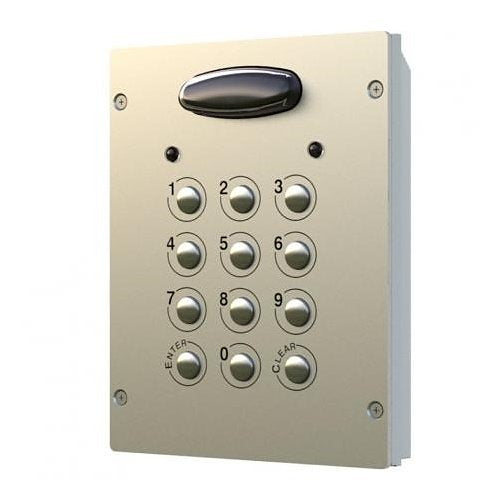

Videx VX8900 is a keypad access device.
Coded access and Vprox proximity modules are available for the 8000 Series range 8800 2 code, 2 relay output coded access module with push to exit inputs. Both relays are programmable between 1-99 s or latching. Codes can be 4-8 digits long.8900- 100 code, 2 relay output coded access module with push to exit inputs.
Codes can be 4-8 digits long. 8849 Proximity reader module suitable for all Vprox systems. It has a yellow standby led, green "fob/card accepted" led and red "not valid led".
This reader must be fitted within 50m of controller and requires 5 connections. The standard front plate is stainless steel (/S) or available in matt aluminium (/A).
Key features
- 2 Code or 100 code access control keypads for the 8000 Series including 2 dry contact outputs and 2 push to exit inputs
- Vprox proximity module for the 8000 Series including audible and visual indication
If you are matching this to an existing installation, work from the VX8900 part number rather than the description.
-
Download
- VX8900 — Product Manual
Specifications
Technical information
Physical characteristics
Power description
Miscellaneous
Attributes
Specifications
| Brand Name | Videx |
|---|---|
| Manufacturer Part Number | VX8900 |
| Product Type | Keypad Access Device |
Technical information
| Identification Method | Contactless Card (RFID/Proximity), Mechanical Key |
|---|---|
| Number of Users | 100 |
Physical characteristics
| Colour | Silver |
|---|
Power description
| Input Voltage | 12-24V AC, DC |
|---|
Miscellaneous
| Indoor or outdoor use | Outdoor |
|---|
Attributes
| Input Voltage | 12-24V AC, DC |
|---|
Videx VX8900 keypad access device, Silver
