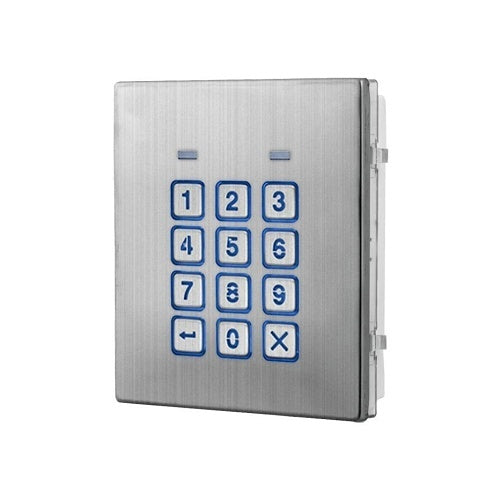

Videx 4901 module

Please note: this is a non-returnable item (excluding faulty goods)

Videx 4901 is a module from the 4000 Series range.

A selection of 4000 series code lock modules with blue backlit buttons that are able to operate as a standalone keypad or can be incorporated as part of an audio or video door entry system. There are three optional code locks available; the 4901 code lock module which is completely standalone, the 4902 and 4903 which can both operate as a standalone code lock or be networked via an RS485 bus. In the case of the 4902 it can be networked with other 4902 code locks only, whereas the 4903 can be networked with the GSMPRO (4810) audio module (as well as other 4903 keypads and 4850R proximity readers).

The 4901 code lock has 3 relays and allows for 3 codes (1 code per relay) while the 4902 code lock has 2 relays and allows for up to 1000 codes that can be assigned to one or both of the relays. The keypads have dry relay contacts (CO, NO and NC) where each output can be programmed from 1-99 seconds (for the 4901 and 4903), 1-255 seconds (for the 4902) or set to 00 for latching. They also feature two switched 0V push-to-exit inputs to activate relays 1 and 2 respectively.

Codes can be between 4-8 digits in length and each keypad module incorporates blue backlit key buttons.

Key features

• Blue backlit button codelock modules
• Available in mirror stainless steel finish, a matt 316 grade stainless steel finish or gun metal grey finish
• Modules are compatible with both surface and flush 4000 series back boxes
• Can operate as standalone keypads
• 4902 and 4903 keypads are also networkable via RS485
• User friendly programming menu with audible reassurance tones
• 4-8 Digit programmable access codes
• 2-Programmable relays (4902 and 4903), 3-programmable relays (4901)
