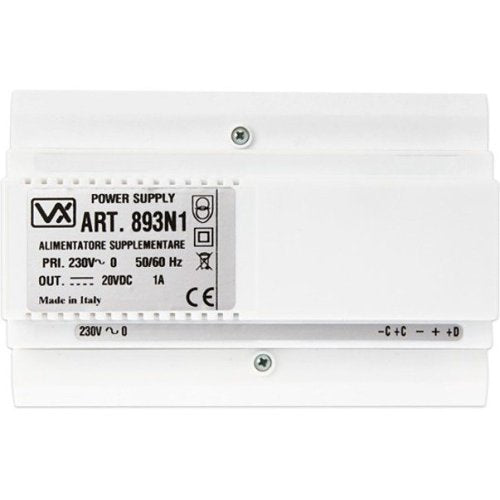

Videx 893N power supply, DIN Rail
£
102
58
(Incl. VAT)
About this product
Videx 893N is a power supply.
Yes
Key features
- Range of boxed and unboxed DC power supplies
If you are matching this to an existing installation, work from the 893N part number rather than the description.
-
Download
- 893N — Product Manual
£
102
58
Price
Technical Details
Specifications
Brand Name
Videx
Manufacturer Part Number
893N
Product Type
Power Supply
Technical information
Output Voltage
20V DC
Certifications
Certifications & Standards
CE
RoHS compliance
Compliant
WEEE compliance
Compliant
Physical characteristics
Depth
65.00mm
Form Factor
DIN Rail
Height
157.50mm
Width
105.00mm
Power description
Input Voltage
230V AC
Output Current
800.0000mA
Power Source
AC Power
Product information
Mount Type
Junction Box Mount
Miscellaneous
Additional Information
This power supply can also be used as a normal power supply with 20Vdc output (terminals "+" and "-") by putting a short between the terminals "-C” and "-”. The "N1” model has an additional 20Vdc output "+D” specific for use on VIDEX digita
Compatibility
VIDEX Video Cabinets: 2291V 2291V4 2291V8 2291V12
Environmental status
Yes
Attributes
Compatibility
VIDEX Video Cabinets: 2291V; 2291V4; 2291V8; 2291V12
Input Voltage
230V AC
Output Current
800.0000mA
Output Voltage
20V DC
Power Source
AC Power
Specifications
| Brand Name | Videx |
|---|---|
| Manufacturer Part Number | 893N |
| Product Type | Power Supply |
Technical information
| Output Voltage | 20V DC |
|---|
Certifications
| Certifications & Standards | CE |
|---|---|
| RoHS compliance | Compliant |
| WEEE compliance | Compliant |
Physical characteristics
| Depth | 65.00mm |
|---|---|
| Form Factor | DIN Rail |
| Height | 157.50mm |
| Width | 105.00mm |
Power description
| Input Voltage | 230V AC |
|---|---|
| Output Current | 800.0000mA |
| Power Source | AC Power |
Product information
| Mount Type | Junction Box Mount |
|---|
Miscellaneous
| Additional Information | This power supply can also be used as a normal power supply with 20Vdc output (terminals "+" and "-") by putting a short between the terminals "-C” and "-”. The "N1” model has an additional 20Vdc output "+D” specific for use on VIDEX digita |
|---|---|
| Compatibility | VIDEX Video Cabinets: 2291V 2291V4 2291V8 2291V12 |
| Environmental status | Yes |
Attributes
| Compatibility | VIDEX Video Cabinets: 2291V; 2291V4; 2291V8; 2291V12 |
|---|---|
| Input Voltage | 230V AC |
| Output Current | 800.0000mA |
| Output Voltage | 20V DC |
| Power Source | AC Power |
