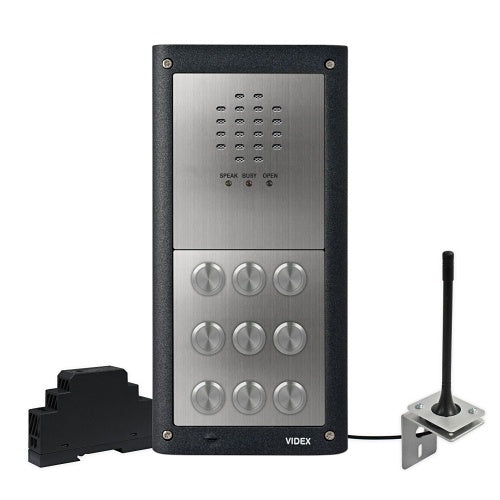

Videx GSMVRK-9/4G resistant GSM kit, Flush Mount

Please note: this is a non-returnable item (excluding faulty goods)

Videx GSMVRK-9/4G is a resistant GSM kit from the 4000 Series range.

The Vandal Resistant 4G GSM is manufactured from brushed stainless steel (2.5mm thick) and is available in the vandal resistant 4000 series modular range. The Vandal Resistant 4G GSM audiokits are available for single call button applications up to 12-Button kits (expandable up to 24-Button when combined with VR4K series button expansion modules) and all have the facility to divert to additional numbers if the first is busy or unanswered (1 primary and 3 divert numbers). The audiokits have all the original features of the previous GSMVRK series kits, however they now include new programming features.

In addition to the existing 1000 dial to open numbers (with access levels) it can store up to 32 temporary dial to open numbers that are programmable from 1 - 255 h. It also includes an automatic time correction feature (for when the 4G GSM is used in different time zones) and daylight saving time adjustments. Programming can also be carried out using the GSMSK PC software either connected via the micro USB port or RS485 bus or remotely via the new "over the air" feature (programming is still carried out using the PC software however the 4G GSM module is not physically connected to a PC directly by the micro USB port or RS485 bus).

In addition the VR4K series 4G GSM intercom includes an off-board proximity access control input to allow for a Wiegand proximity reader (VR4KPPM) to be connected should proximity access be required for an installation (for up to 1000-User). Call progress can be followed on the three DDA compliant call progress LED's (speak, busy and door open). In addition the facility to connect the display interface module (VR4KDM) is included to work along side the call progress LED's by offering both voice annunciation and call progress indication on the 2-Line, 16-Character LCD display.

An event log (up to 4000 stored events) is maintained within the 4G GSM module and can be downloaded via the USB port or RS485 bus connection using the PC software or can be viewed remotely and monitored in real time using the online web browser events application (the events can be viewed on any device such as a smartphone, tablet or PC).

Key features

• Compatible with 2G, 3G and 4G networks
• 1-Button up to 12-Button kits available (surface or flush)
• Expandable up to 24-Call buttons using a combination of additional VR4K series button modules
• 4-Telephone numbers per call button (1 primary and 3 diverts)
• 1000 Dial to open numbers (which can each be assigned to an access level)
• 32-Temporary dial to open numbers (programmable from 1 - 255 h)
• 1 Programmable call button timeband
• Up to 10 programmable access control timebands
• Up to 10 programmable free access timebands
• Up to 10 programmable access levels
