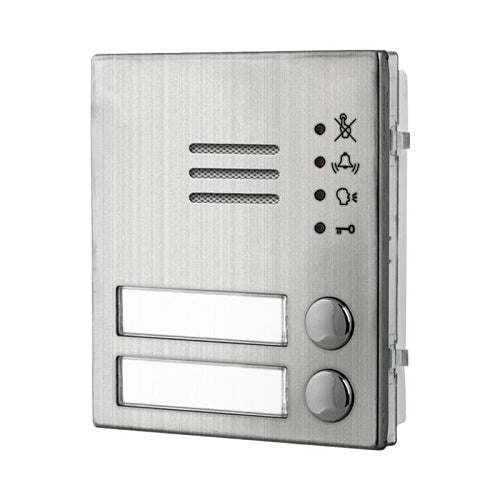

Videx 4204X-2/M speaker module, IP65
About this product
Videx 4204X-2/M is a speaker module.
The name plate windows are illuminated blue and the speaker also features 4 call status LED's alerting the user when the system is busy, a call is in progress, when to speak and when the door is open. The modules contain a speaker and fly lead with microphone which is easily fitted into a 4000 series front frame. Speech levels can be adjusted using separate controls for the speaker, microphone and balance.
Key features
- Store up to 60 user fobs / cards (expandable up to 1000 users with 2X00PC software)
- Blue backlit name plate windows
- Call reassurance tones and DDA compliant call progress LED's
- Multiple call button configurations using additional 4000 series IDC button expansion modules
- 4000 Series speaker and fly lead microphone (mic easily fits within a 4000 series frame)
- Speech volume adjustments via the mic, speaker and balance control POTs
- Simple and strong clip-in module system with anti-tamper lock fixings
- Built-in proximity access reader
- Store up to 60 user fobs / cards (expandable up to 1000 users with 2X00PC software)
If you are matching this to an existing installation, work from the 4204X-2/M part number rather than the description.
-
Download
- 4204X-2/M — Product Manual
Specifications
Certifications
Physical characteristics
Power description
Miscellaneous
Attributes
Specifications
| Brand Name | Videx |
|---|---|
| Manufacturer Part Number | 4204X-2/M |
Certifications
| Ingress protection | IP65 |
|---|---|
| Security Grade | Grade 1 |
Physical characteristics
| Colour | Blue |
|---|---|
| Width | 103.00mm |
Power description
| Input Voltage | 12V DC |
|---|
Miscellaneous
| Compatibility | 2X00PC software, 4000 series surface and flush back boxes and front support frames, 521B and 2291 series cabinets |
|---|
Attributes
| Compatibility | 2X00PC software, 4000 series surface and flush back boxes and front support frames, 521B and 2291 series cabinets |
|---|---|
| Input Voltage | 12V DC |
