Videx 4304X-1/M speaker module

Please note: this is a non-returnable item (excluding faulty goods)

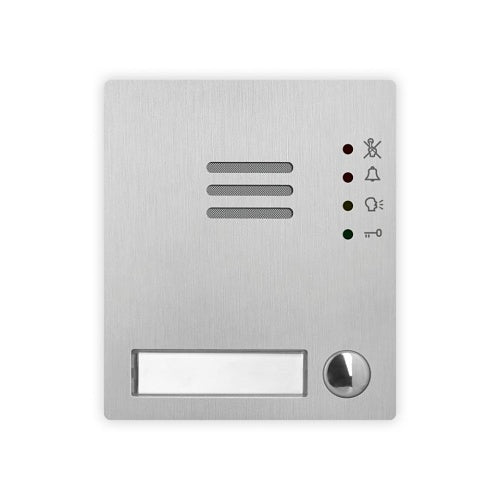

Videx 4304X-1/M is a speaker module from the 4000 range.

4000 series 1-button audio module for VX2300 system with microphone and integrated 8Ω/2W speaker and full-duplex audio function. Integrated RFID proximity reader (125kHz EM4102) for using up to 1,000 keys of which up to 60 can be programmed directly from the module using the master card supplied. RS-485 Interface.

IDC connector for connection via flat cable (supplied) with other optional modules (maximum 8 modules for a total of 42 buttons). 4 LEDs for visual alert of system status- busy, call in progress, start conversation and open door. Acoustic alert for the visually impaired- start conversation and open door.

Configurable door opening time and conversation. 1 standard relay with clean contacts C-NO-NC (max 24Vac/dc - 2A) with the possibility of configuring the capacitive discharge (max 12Vac/dc - 1A) for the direct powering of the lock, an SSR output (Solid State Relay, max 60Vdc/40Vac - 0.1A) for the activation of a second gate and an input for direct door opening (PTE). Adjustable microphone and speaker levels.

Blue LED information card backlighting. Microphone to be housed in the specific compartment of the module holder frames that allows for better sound output even in noisy environments, also eliminating any Larsen effect issues. Satin-finished AISI 316 stainless steel plate (marine grade) that provides durability in installations subject to atmospheric agents and in the vicinity of marine environments.

Vandal resistant plate with IK09 and IP65 protection rating. Operating temperature -20°/+60 °C. Power supply by BUS.

Simplified configuration of the device through dip-switch or programming kit Cod. 2209. Dimensions- 103x120x43 mm.

Encumbrance 1 module.

Key features

• 1-button audio module for VX2300 system with integrated microphone and 8Ω/2W speaker
• Full-duplex audio function with adjustable microphone and speaker levels
• Integrated 125kHz EM4102 RFID proximity reader supporting up to 1,000 keys and 60 programmable via
• 4 LEDs for system status alerts: busy, call in progress, conversation start, and door open
• Configurable door opening time and conversation duration
• 1 standard relay with clean contacts (C-NO-NC) max 24Vac/dc 2A, capacitive discharge config max
• SSR output for second gate activation max 60Vdc/40Vac 0.1A

If you are matching this to an existing installation, work from the 4304X-1/M part number rather than the description.
